Hourglass-Inspired Profile
The curved form creates a distinctive visual identity during the day while supporting a balanced decorative light pattern after dark.
Sculptural DesignArchitectural Form
The LEVIN Hourglass Wall Light combines a distinctive sculptural profile with balanced up-and-down illumination for contemporary façades, entrances, corridors and feature walls.

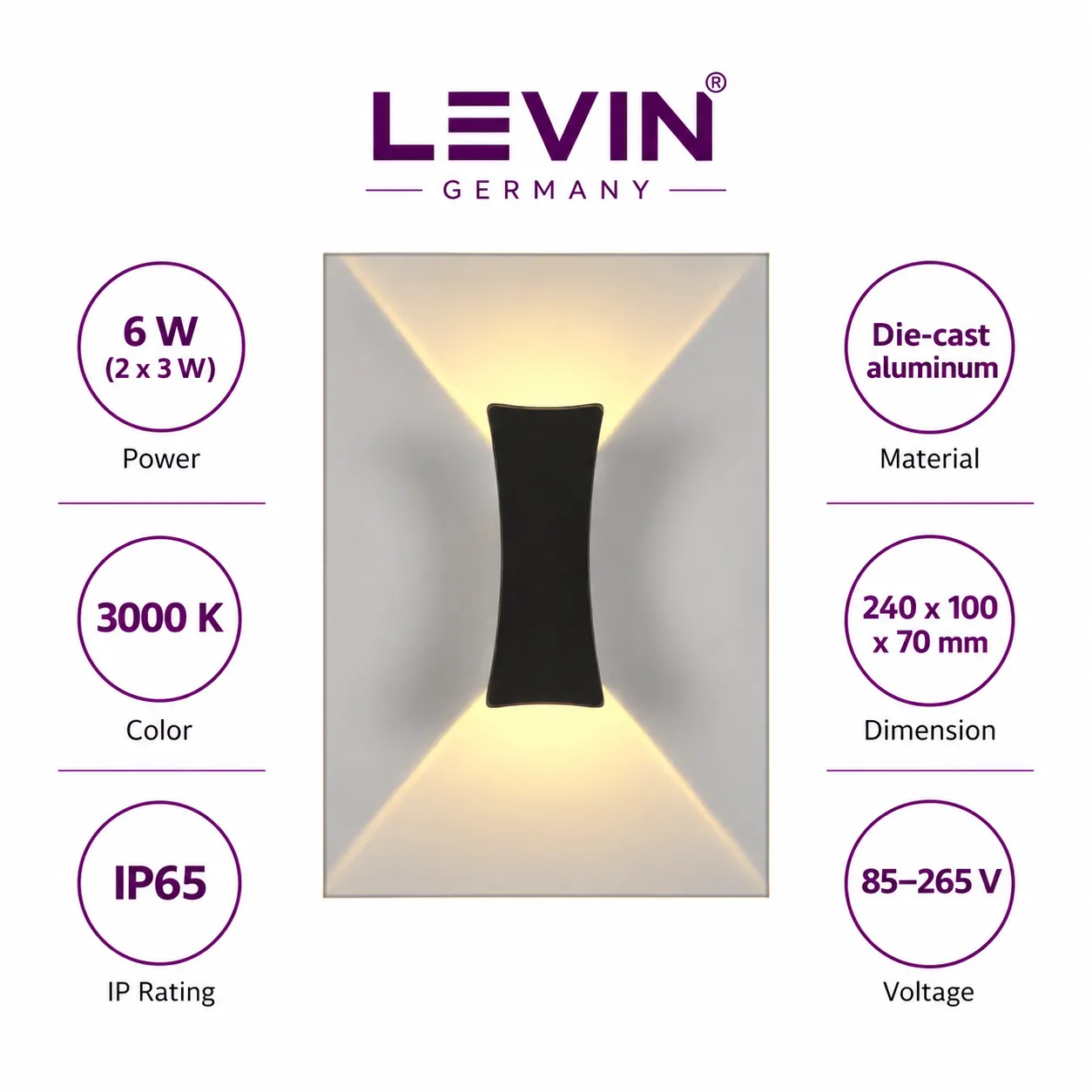

Product Code 1397 uses a 2 × 3W COB LED configuration for a total rated power of 6W. It delivers 3000K warm white light with 90 lm/W luminous efficacy, CRI 75 and IP65 protection in a die-cast aluminium body measuring 240 × 100 × 70mm.
The body narrows toward the centre and expands at the top and bottom, creating an hourglass-inspired silhouette that gives the fixture a more sculptural character than conventional rectangular wall lights.
The curved form creates a distinctive visual identity during the day while supporting a balanced decorative light pattern after dark.
The elongated 240mm body creates a strong but controlled presence on façades and feature walls.
Three neutral housing colours allow the fixture to coordinate with a wide range of contemporary architectural surfaces.

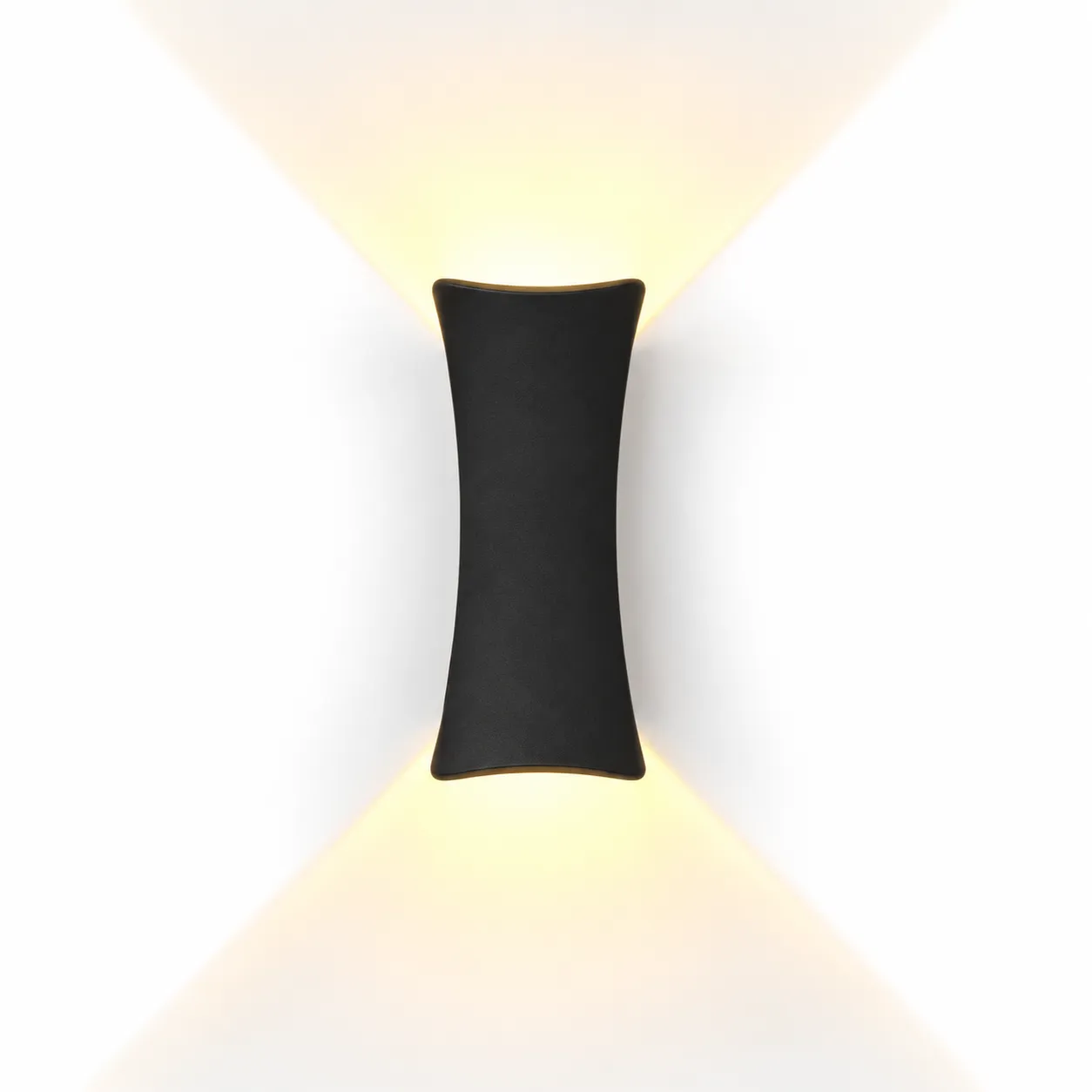

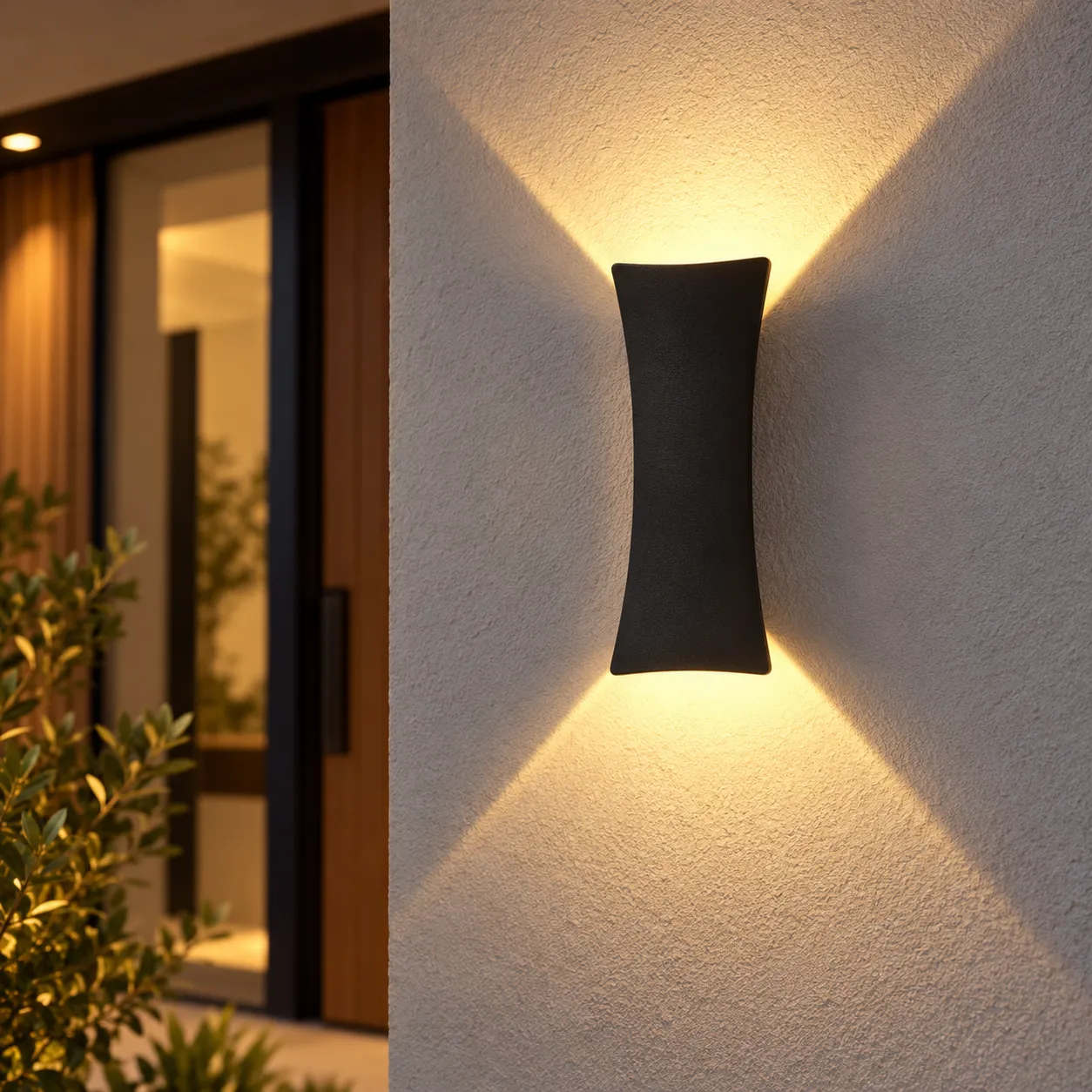

The fixture projects warm light both upward and downward, creating a defined architectural pattern across the surrounding wall surface.
The upper light creates a warm architectural accent that helps emphasise wall height and surface texture.
The downward light adds visual balance below the fixture and continues the decorative effect across the wall.
The combined light distribution makes the fixture particularly effective for façades, entrances and feature walls.
The fixture uses two 3W COB LED sources for a combined rated power of 6W. The fixed 3000K colour temperature creates a softer and more welcoming visual atmosphere for residential, hospitality and commercial architecture.
The published configuration uses two 3W COB LED sources for a total rated power of 6W.
The fixed 3000K light output complements materials such as stone, concrete, wood and darker exterior finishes.
The published luminous efficacy is 90 lumens per watt.
The Hourglass Wall Light supports a published input voltage range of 85–265V and uses an isolated driver. The die-cast aluminium body carries an IP65 protection rating for appropriate exterior wall installations.
The published input voltage range is 85–265V.
The fixture is specified with an isolated driver for its electrical system.
The IP65 rating provides protection suitable for outdoor architectural wall applications within the limits of the classification.
Review the confirmed technical data for LEVIN Hourglass Wall Light Code 1397 before specifying the fixture for residential, hospitality or commercial architectural lighting projects.
| Specification | Code 1397 |
|---|---|
| Product Type | Architectural LED Wall Light |
| Product Code | 1397 |
| Power | 2 × 3W |
| Total Rated Power | 6W |
| Input Voltage | 85–265V |
| Colour Temperature | 3000K Warm White |
| LED Type | COB |
| Driver | Isolated |
| Luminous Efficacy | 90 lm/W |
| CRI | 75 |
| IP Rating | IP65 |
| Material | Die-Cast Aluminium |
| Dimensions | 240 × 100 × 70mm |
| Housing Colours | Black / White / Grey |
| Working Temperature | −10°C to +50°C |
| Warranty | 2 Years |
The fixture measures 240 × 100 × 70mm, giving it a taller and more sculptural wall presence than compact cube-style wall lights.
The hourglass-shaped body remains visually distinctive even when the fixture is switched off, while the up-and-down illumination becomes the dominant architectural effect after dark.
Black, white and grey finish options provide flexibility for coordination with residential, hospitality and commercial façades.
COMPLETE DIMENSIONS
240 × 100 × 70mm
Product Code 1397
The distinctive hourglass form, warm 3000K output and IP65 protection make the fixture suitable for architectural projects where the physical form of the luminaire and the projected light pattern are both important.
The published product code is 1397.
The fixture uses a 2 × 3W COB LED configuration for a total rated power of 6W.
The fixture projects warm light upward and downward to create a decorative architectural pattern across the wall.
The fixture provides fixed 3000K warm white illumination.
The product uses COB LED technology.
The published luminous efficacy is 90 lm/W.
The published colour rendering index is CRI 75.
Yes. It has an IP65 protection rating and is intended for appropriate outdoor wall installations when correctly installed.
The published dimensions are 240 × 100 × 70mm.
The listed housing colours are black, white and grey.
The published working temperature range is −10°C to +50°C.
Yes. LEVIN specifies a two-year warranty.
