5W Small LED Downlight
The smallest version uses a compact Ø80mm body and requires an Ø55mm ceiling cut-out.
5WØ55mm Cut-Out
The LEVIN Trimless LED Downlight range is designed for contemporary interiors where compact recessed installation, soft illumination and a clean architectural ceiling appearance are required.
The range includes 5W, 8W and 15W models in compact, medium and large formats, with fixed 3000K, 4000K and 6500K colour temperature options, flicker-free performance and CRI ≥80.
The family provides three power and size options, allowing a consistent downlight design to be used across smaller residential spaces, general interior areas and larger commercial environments.

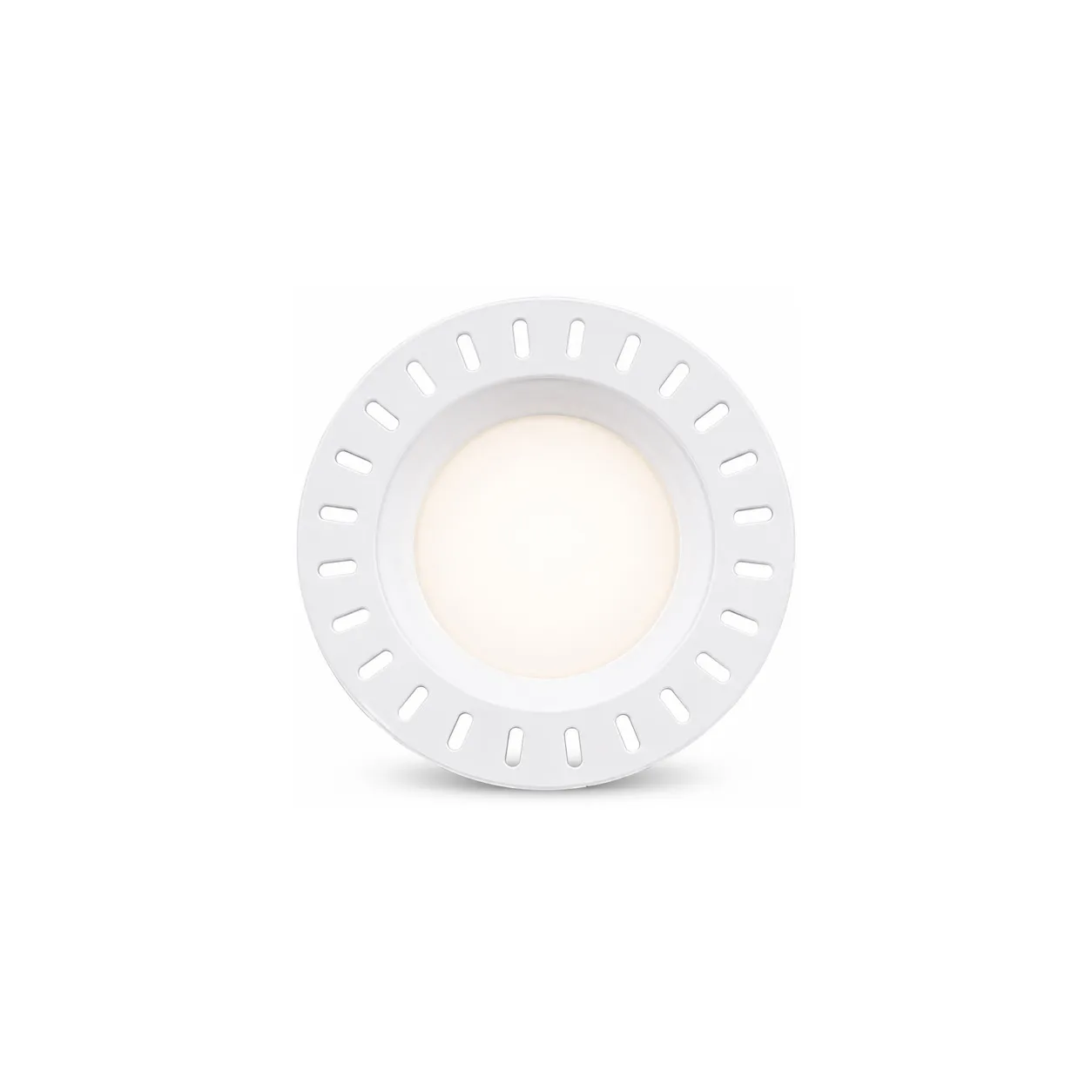

The smallest version uses a compact Ø80mm body and requires an Ø55mm ceiling cut-out.
The medium version combines an Ø105.5mm body with an Ø75mm cut-out for general residential and commercial ceiling lighting.
The largest version uses an Ø130mm body and Ø95mm cut-out for applications requiring a larger and more powerful ceiling luminaire.
Each power level is available in three fixed colour temperature options, allowing the lighting atmosphere to be matched to residential, hospitality, retail and commercial interiors.

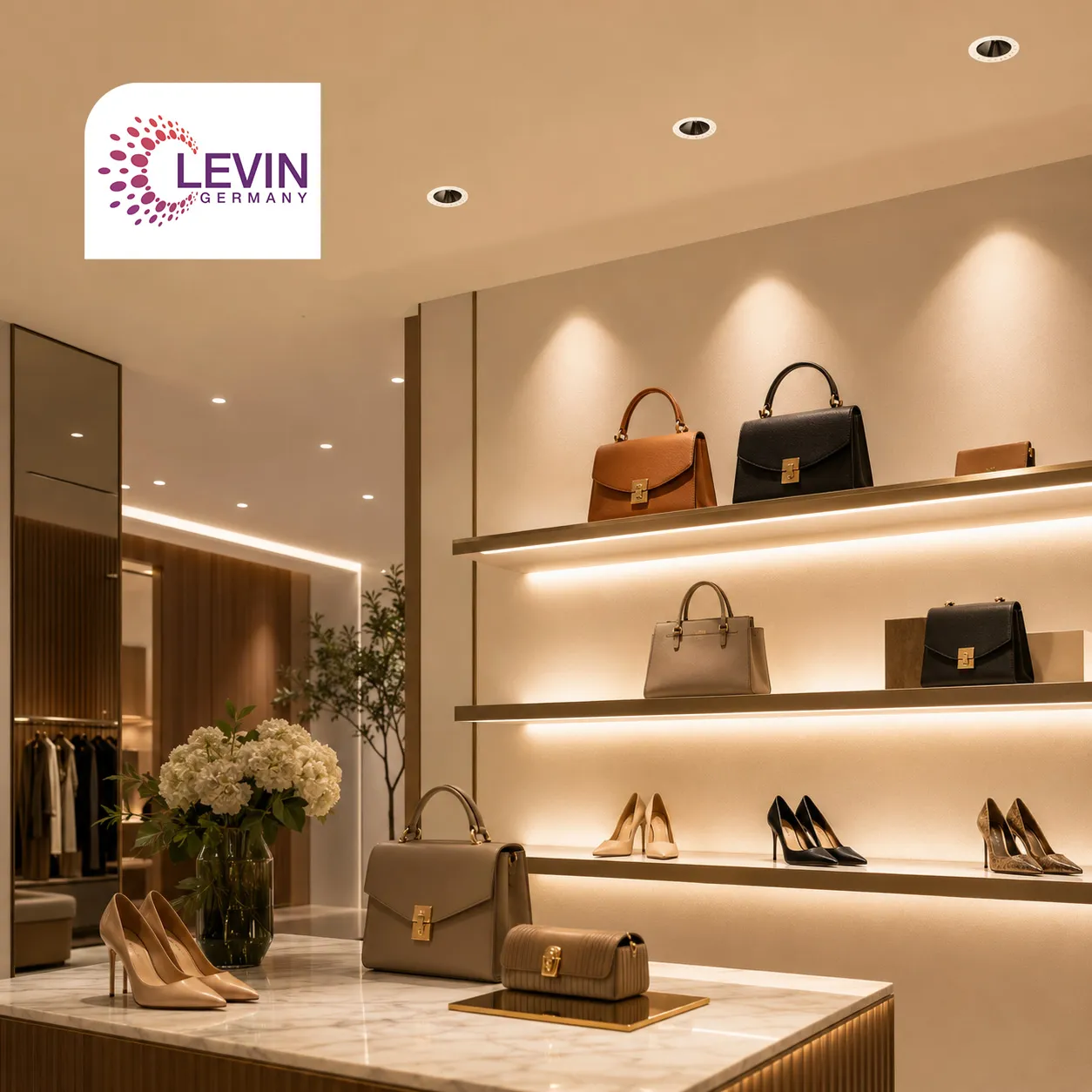

Suitable for homes, hotels, restaurants and spaces where a softer and warmer lighting atmosphere is preferred.
A balanced white-light option for contemporary homes, offices, retail spaces and general interior lighting.
A cooler lighting appearance suited to selected functional and commercial environments.
3000K, 4000K and 6500K are separate fixed colour temperature versions rather than a tunable-white function.
The catalogue identifies the family with a soft-light design, making these downlights suitable for interiors where comfortable general illumination and a restrained ceiling appearance are important.
The optical design creates a softer appearance suited to living spaces, hospitality environments and general commercial interiors.
All six product codes are specified as flicker free for more comfortable lighting in frequently occupied interior spaces.
The published colour rendering value of Ra ≥80 supports natural colour appearance for general architectural lighting.

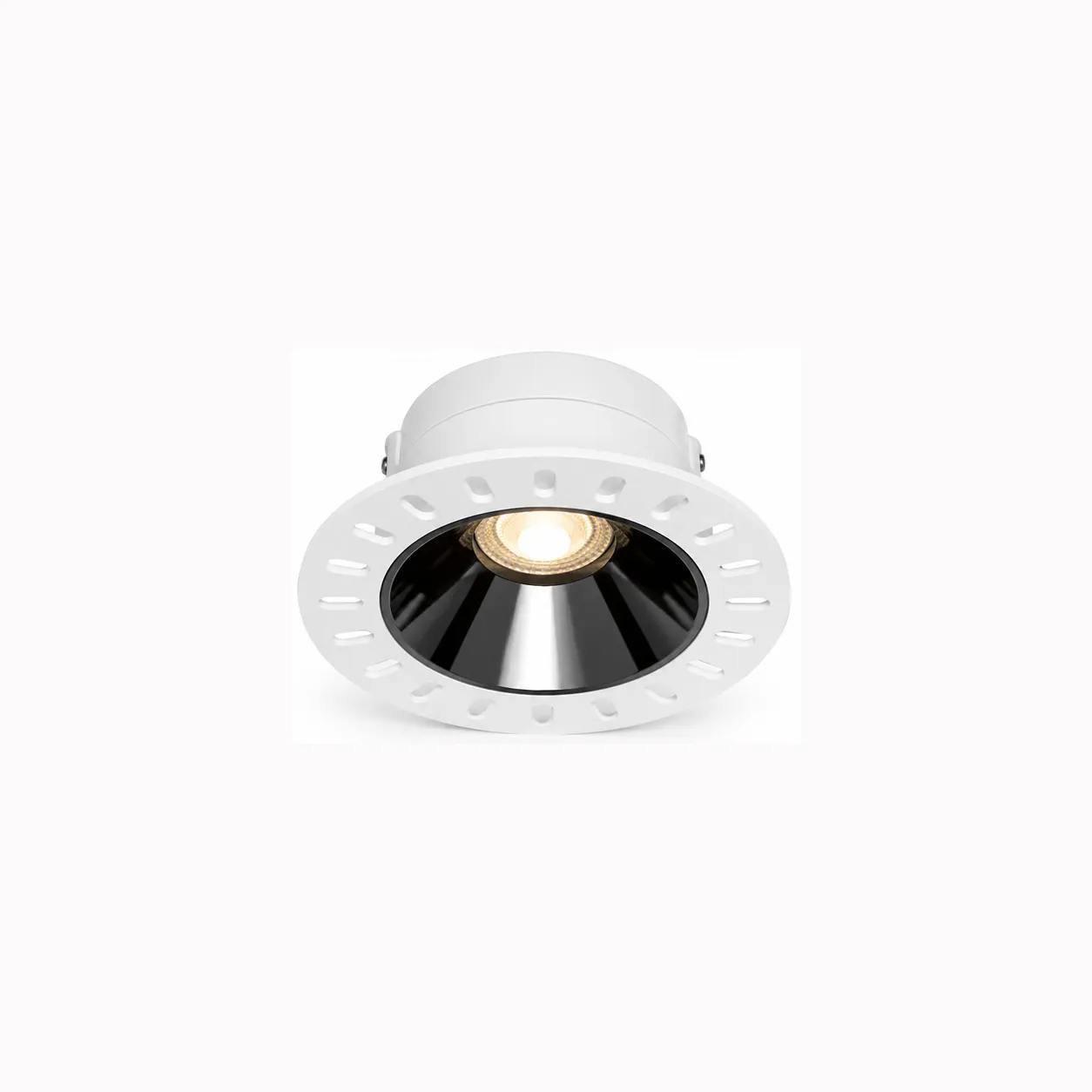

The downlight family uses a fixed 36° beam angle to provide controlled illumination suitable for residential, hospitality, retail and commercial ceiling-lighting layouts.
The optical system provides a controlled beam for focused general lighting and architectural ceiling applications.
The published power factor is 0.5 across the product range.
The IP20 protection rating identifies the range for appropriate dry indoor lighting applications.
The downlights can be coordinated with different ceiling and interior colour schemes through selectable body and inner-ring finishes.
The main fixture body is available in powder-coated white or black.
Four inner-ring finish options allow additional visual coordination with interior materials and architectural detailing.
Codes 1125 to 1130 form two closely related three-size LED downlight groups with the same power, dimension, cut-out and core lighting specifications.

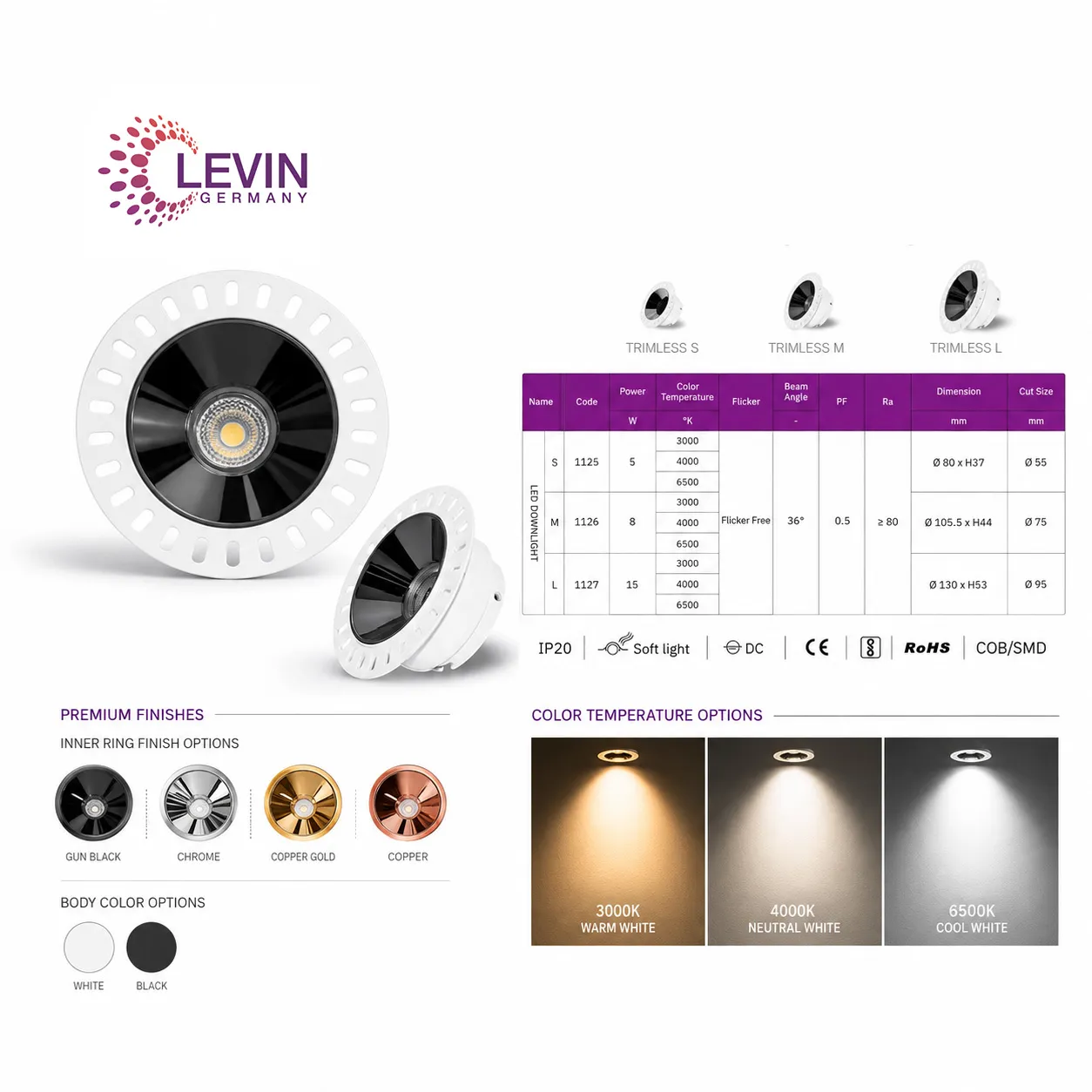

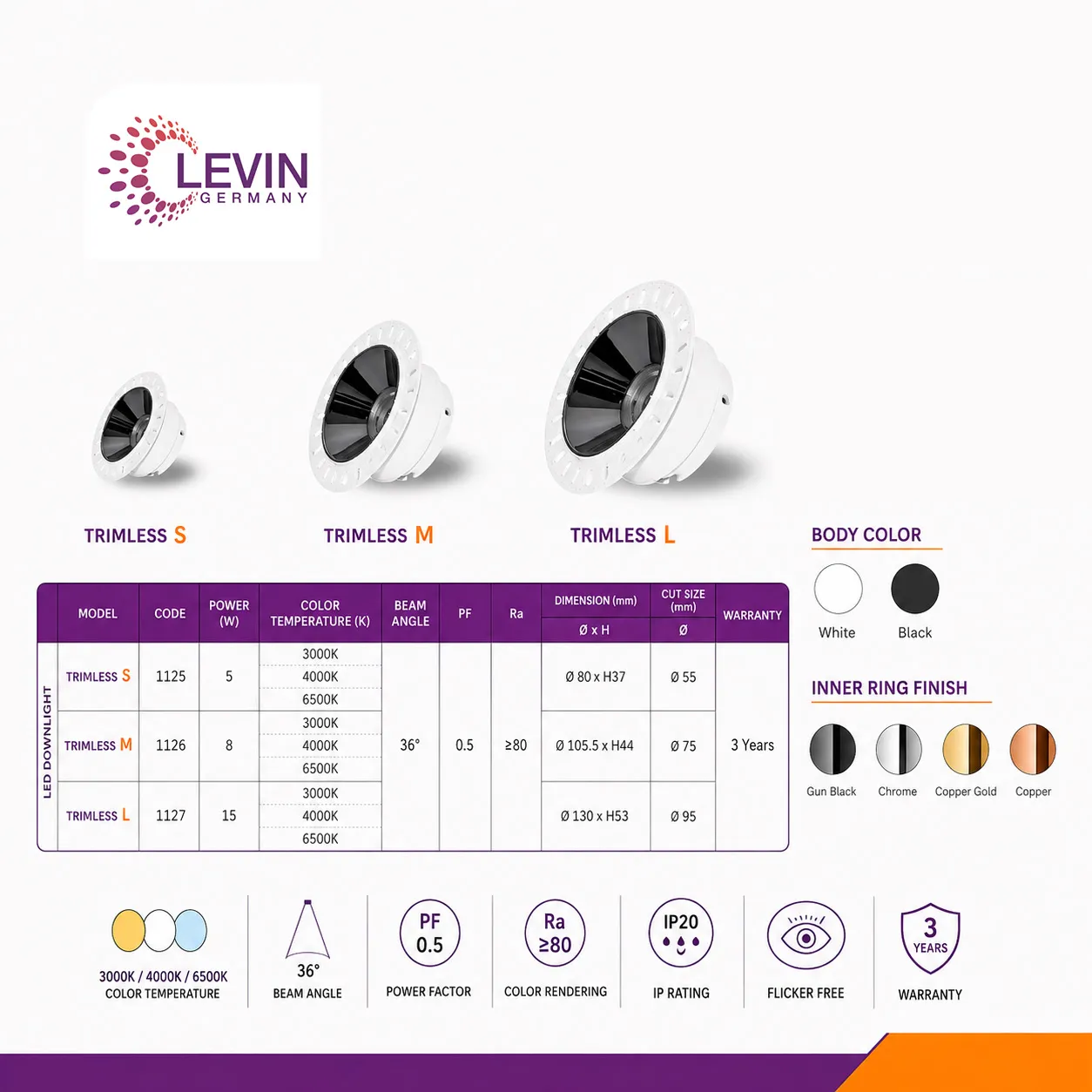

| Specification | Small | Medium | Large |
|---|---|---|---|
| Product Codes | 1125 / 1128 | 1126 / 1129 | 1127 / 1130 |
| Power | 5W | 8W | 15W |
| Colour Temperature | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K |
| Flicker | Flicker Free | Flicker Free | Flicker Free |
| Beam Angle | 36° | 36° | 36° |
| Power Factor | 0.5 | 0.5 | 0.5 |
| CRI / Ra | ≥80 | ≥80 | ≥80 |
| Dimensions | Ø80 × H37mm | Ø105.5 × H44mm | Ø130 × H53mm |
| Cut-Out Size | Ø55mm | Ø75mm | Ø95mm |
| Body Finish | Powder-Coated White / Black | Powder-Coated White / Black | Powder-Coated White / Black |
| Inner Ring | Gun Black / Chrome / C.Gold / Copper | Gun Black / Chrome / C.Gold / Copper | Gun Black / Chrome / C.Gold / Copper |
| Protection Rating | IP20 | IP20 | IP20 |
| Warranty | 3 Years | 3 Years | 3 Years |
The supplied LEVIN catalogue is used as the technical reference for Codes 1125–1130. The current website table for LED Downlights 4 incorrectly repeats Codes 1131–1133 and should be corrected.
The 5W version measures Ø80 × H37mm and uses an Ø55mm cut-out. The 8W model measures Ø105.5 × H44mm with an Ø75mm cut-out, while the 15W version measures Ø130 × H53mm and requires an Ø95mm opening.
The three graduated sizes make it possible to maintain a consistent architectural appearance while adapting power and fixture scale to different parts of the project.
POWER OPTIONS
5W / 8W / 15W
Codes 1125–1130
The compact form, soft lighting character and multiple size options make this downlight range suitable for a broad range of indoor projects.
The range includes 5W, 8W and 15W versions.
The supplied LEVIN catalogue lists Product Codes 1125, 1126, 1127, 1128, 1129 and 1130.
The downlights are available in fixed 3000K, 4000K and 6500K versions.
Yes. All listed models are specified as flicker free.
The published colour rendering index is Ra ≥80.
The 5W, 8W and 15W versions require Ø55mm, Ø75mm and Ø95mm ceiling cut-outs respectively.
No. The product family carries an IP20 rating and is intended for appropriate dry indoor environments.
The main body is available in powder-coated white or black.
The listed inner-ring options are Gun Black, Chrome, C.Gold and Copper.
LEVIN specifies a three-year warranty for this product family.
