3W / 600mm Linear Bollard
The most compact configuration within the collection, combining a 600mm architectural body with a 3W LED specification and an integrated vertical illuminated section.
30 × 30 × 600mm
3W LED
3W LED
Bring a refined linear lighting element into contemporary outdoor spaces with the LEVIN Linear Bollard Light. Combining an ultra-slim rectangular body with an integrated vertical illuminated acrylic section, this architectural fixture creates a distinctive decorative presence along garden paths, landscaped borders and modern exterior environments.
Available in three configurations from 3W to 7W, the collection offers 600mm, 900mm and 1200mm heights while maintaining a consistent 30 × 30mm body profile. All three models feature IP54 protection, three white-light colour temperature options and AC100–240V operation.
Choose the appropriate LEVIN Linear Bollard Light according to the required height and rated power. Each product code combines a specific lighting output configuration with a corresponding body length, while maintaining the same architectural design and available finishes.
The most compact configuration within the collection, combining a 600mm architectural body with a 3W LED specification and an integrated vertical illuminated section.
An intermediate-height configuration featuring a 900mm body and 5W rated power, maintaining the same ultra-slim rectangular design language.
The tallest and highest rated-power configuration in the family, combining a 1200mm vertical architectural profile with a 7W LED specification.
The published product configurations pair Code 2105 with 3W / 600mm, Code 2106 with 5W / 900mm and Code 2107 with 7W / 1200mm. Alternative power and height combinations are not confirmed in the technical specifications.

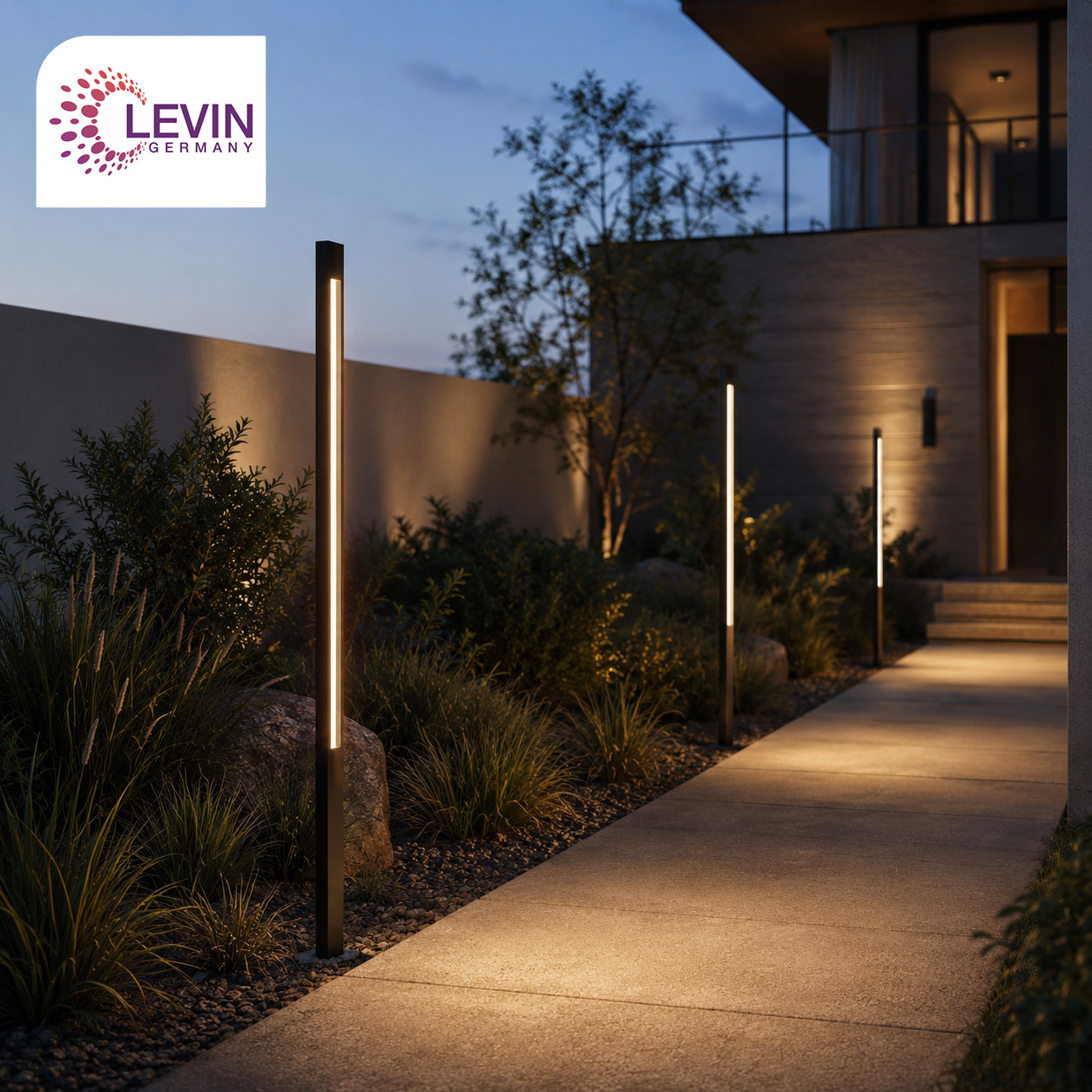

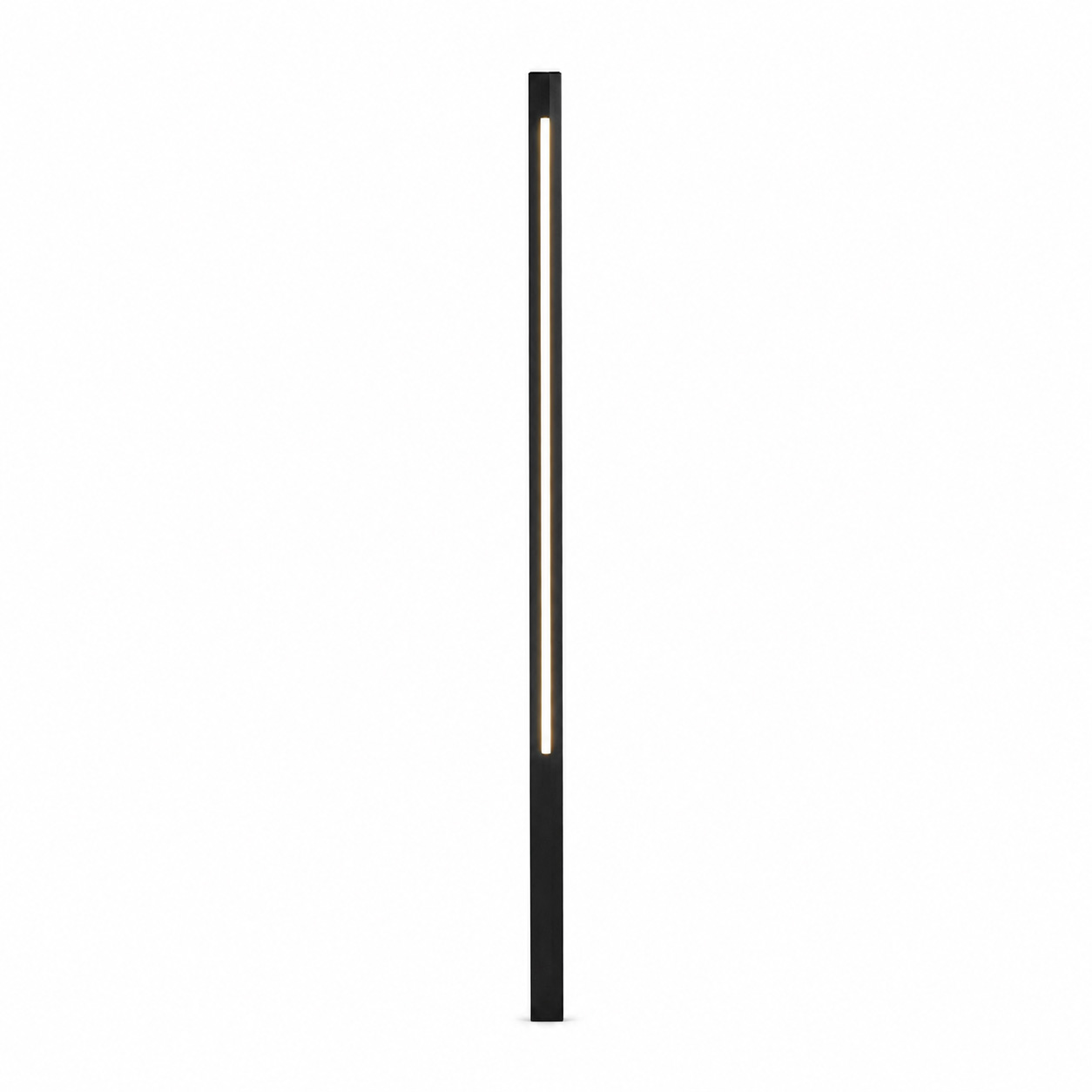

The defining feature of the Linear Bollard Light is its narrow rectangular form combined with a vertically integrated acrylic lighting section. During the day, the fixture maintains a clean architectural silhouette; after dark, the illuminated section introduces a recognisable linear lighting detail into the landscape.
All three versions share an exceptionally slim rectangular body profile, allowing the fixture to complement contemporary outdoor architecture without introducing bulky visual elements.
An elongated illuminated acrylic section is integrated into the body, creating a distinctive vertical line of decorative light.
The published material specification combines an aluminium housing with an acrylic lighting component and three available neutral body finishes.
With three power configurations and an integrated illuminated acrylic section, the LEVIN Linear Bollard Light introduces decorative linear illumination into exterior environments. Each model is available in three fixed white-light colour temperature options and features a colour rendering index of Ra ≥80.
Three rated-power options are available, each associated with a specific fixture height and product code.
Select 3000K warm white, 4000K neutral white or 6000K cool white according to the desired architectural atmosphere and surrounding landscape materials.
All three configurations share a published colour rendering index of Ra ≥80 for general architectural white-light applications.
A numerical beam angle, luminous flux, photometric distribution and dimming capability are not specified in the published product information. The listed colour temperatures represent available configurations, not a confirmed tunable-white function.
Compare the three LEVIN Linear Bollard Light models to select the appropriate power, height and colour temperature for your residential, commercial or architectural landscape project.
| Specification | Code 2105 | Code 2106 | Code 2107 |
|---|---|---|---|
| Product Type | Linear Outdoor Bollard | Linear Outdoor Bollard | Linear Outdoor Bollard |
| Rated Power | 3W | 5W | 7W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | ≥80 | ≥80 | ≥80 |
| Protection Rating | IP54 | IP54 | IP54 |
| Input Voltage | AC100–240V | AC100–240V | AC100–240V |
| Dimensions | 30 × 30 × 600mm | 30 × 30 × 900mm | 30 × 30 × 1200mm |
| Working Temperature | -15°C to +50°C | -15°C to +50°C | -15°C to +50°C |
| Body Material | Aluminium / Acrylic | Aluminium / Acrylic | Aluminium / Acrylic |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years | 3 Years |
The published protection rating is IP54, not IP65. LED chip manufacturer, numerical beam angle, luminous flux and driver specifications are not supplied in the available technical information.
All three LEVIN Linear Bollard Light models share the same 30 × 30mm rectangular cross-section. This consistent profile makes it possible to coordinate different fixture heights within one landscape design while maintaining a unified architectural appearance.
The 600mm configuration is rated at 3W, the 900mm configuration at 5W and the 1200mm configuration at 7W. Each version integrates a vertical illuminated acrylic section into the aluminium body.
Matt Black, Matt White and Dark Grey finishes allow the fixture to coordinate with contemporary outdoor material palettes.
AVAILABLE OVERALL HEIGHTS
600 / 900 / 1200 mm
Codes 2105 / 2106 / 2107
With its understated rectangular profile and vertical illuminated section, the Linear Bollard Light supports exterior designs where decorative illumination and the visual consistency of the fixtures are equally important.
The Linear Bollard Light is intended for appropriate exterior environments. Final installation suitability depends on IP54 exposure requirements, site conditions and correctly protected electrical connections. Required safety lighting levels must be evaluated separately.
Code 2105 is rated at 3W with a 600mm height, Code 2106 is rated at 5W with a 900mm height, and Code 2107 is rated at 7W with a 1200mm height. All share a 30 × 30mm body profile.
Its ultra-slim rectangular aluminium body incorporates a vertically illuminated acrylic section, creating a recognisable line of decorative light within the landscape.
All three models offer 3000K warm white, 4000K neutral white and 6000K cool white configurations.
The published protection rating is IP54. Installation location and environmental exposure should be assessed accordingly.
All three configurations support AC100–240V operation.
The published material specification lists aluminium and acrylic.
The available finishes are Matt Black, Matt White and Dark Grey.
Code 2105 measures 30 × 30 × 600mm, Code 2106 measures 30 × 30 × 900mm, and Code 2107 measures 30 × 30 × 1200mm.
The published working temperature range is -15°C to +50°C.
Yes. LEVIN specifies a three-year warranty across all three models.
Discover additional architectural outdoor fixtures in the LEVIN Landscape Lighting Collection for gardens, pedestrian pathways and contemporary exterior lighting projects.
For general information about LED lighting technology and energy efficiency, explore the U.S. Department of Energy LED Lighting Guide.
Planning a residential, hospitality or commercial landscape lighting project? Contact LEVIN for assistance selecting the appropriate Linear Bollard Light height, rated power, colour temperature and body finish for your outdoor environment.
| Rated power | 3 W, 5 W, 7 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6000K |
| IP rating | IP54 |
| CRI | ≥ 80 |
| Finish | Black, Grey, White |
| Material | Aluminium |
| Input voltage | 240 V |
