CODE 2193
3W / Ø100mm
The smaller configuration features
three Lumileds LED chips and a compact
low-height circular housing.
3 LEDs
Ø100 × 58 × 40mm
Ø100 × 58 × 40mm
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Architectural lighting with a discreet presence.
The LEVIN Low Profile Landscape Light combines
a compact circular housing with a directional
optical opening, delivering concentrated accent
lighting while remaining visually close to
the installation surface.
Available in 3W and 5W configurations, this
IP65-rated outdoor lighting family features
Lumileds LED chips, a fixed 10° beam angle,
DC24V operation and three white-light
colour temperature options.
01 / MODEL SELECTION
Choose between two compact configurations
according to the required power and fixture
dimensions. Both versions share the same
optical characteristics, protection rating
and electrical specification.
CODE 2193
The smaller configuration features
three Lumileds LED chips and a compact
low-height circular housing.
CODE 2194
A larger version equipped with five
Lumileds LED chips, maintaining the
same low-profile design approach.
Both models are available in 3000K, 4000K
and 6500K fixed white-light configurations.
RGB versions are not listed for this family.
02 / OPTICAL PERFORMANCE
Both Low Profile Landscape Light models feature
a fixed 10° optical distribution. The narrow
beam is intended for concentrated accent
lighting rather than broad area illumination.
OPTICAL DISTRIBUTION
Focused light distribution for selected
exterior architectural and landscape details.
COLOUR TEMPERATURE
Available in 3000K warm white,
4000K neutral white and
6500K cool white.
COLOUR RENDERING
Both models feature a published colour
rendering index of Ra ≥80.
The 10° beam angle is a fixed optical specification.
No adjustable beam mechanism or alternative
beam-angle configuration is listed.
03 / TECHNICAL DATA
Compare the confirmed technical characteristics
of LEVIN Low Profile Landscape Light models
2193 and 2194 before selecting a fixture
for your outdoor lighting project.

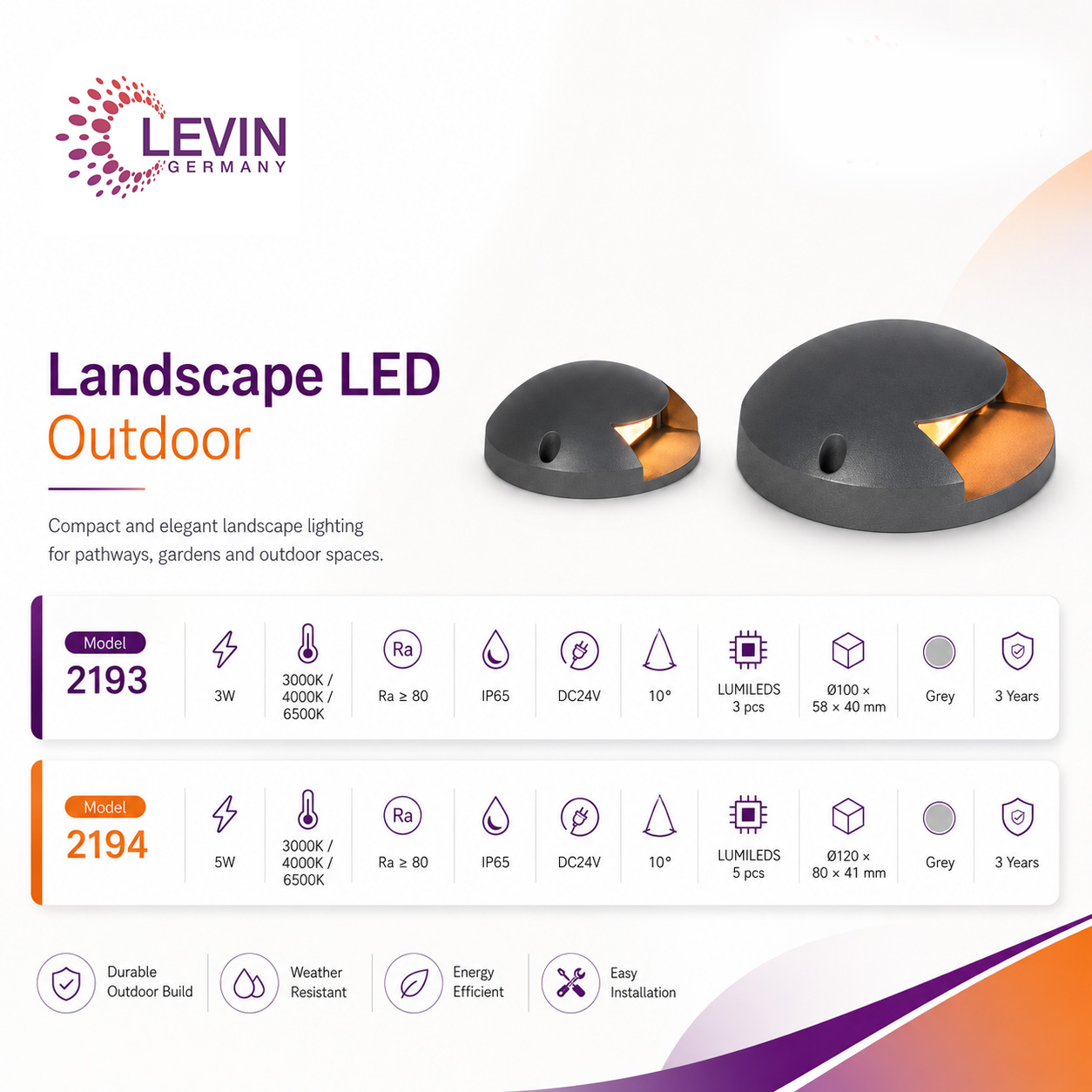

| Specification | Code 2193 | Code 2194 |
|---|---|---|
| Product Type | Low Profile Landscape LED Light | |
| Rated Power | 3W | 5W |
| Colour Temperature | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K |
| LED Chip | Lumileds | Lumileds |
| LED Quantity | 3 pcs | 5 pcs |
| Input Voltage | DC24V | DC24V |
| Beam Angle | 10° | 10° |
| CRI / Ra | ≥80 | ≥80 |
| Protection Rating | IP65 | IP65 |
| Dimensions | Ø100 × 58 × 40mm | Ø120 × 80 × 41mm |
| Body Colour | Grey | Grey |
| Warranty | 3 Years | 3 Years |
Technical specifications refer to the published
information for Codes 2193 and 2194.
Lumen output, luminous efficacy, driver type
and power factor are not specified.
04 / DESIGN & DIMENSIONS
The Low Profile Landscape Light features
a rounded housing with an integrated
directional opening positioned towards
the front of the fixture.
Its compact proportions and neutral grey
finish allow it to remain visually discreet
within different exterior architectural
compositions.

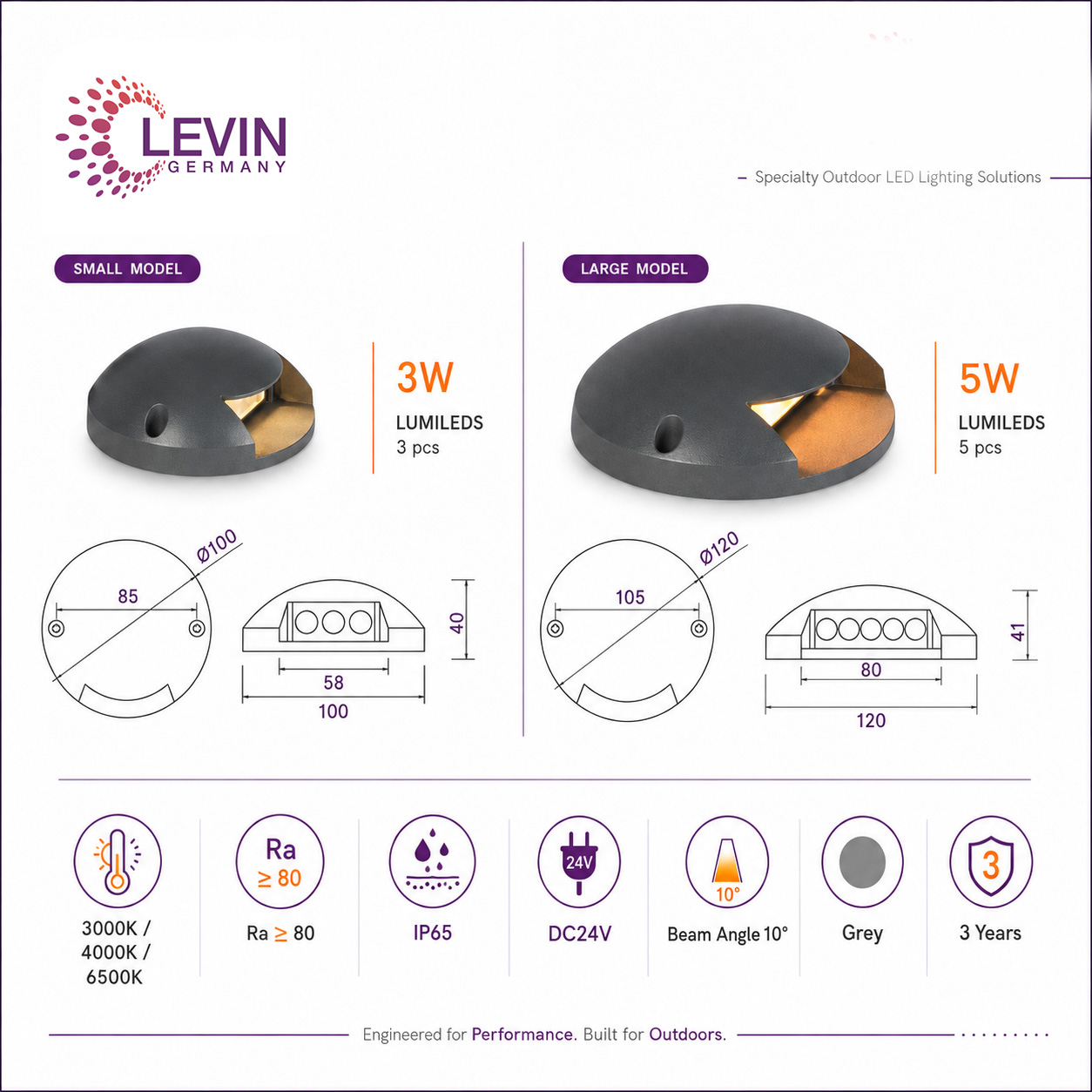

Code 2193 features a nominal Ø100mm format
with an overall height of 40mm, while Code
2194 offers a Ø120mm format with a height
of 41mm.
AVAILABLE OUTER DIAMETERS
Ø100 mm
SECOND SIZE OPTION
Ø120mm
Housing heights: 40mm / 41mm
Complete catalogue dimensions are
Ø100 × 58 × 40mm and Ø120 × 80 × 41mm.
The technical drawings do not explicitly
define the installation function of the
58mm and 80mm measurements. Confirm mounting
requirements before preparing installation surfaces.
05 / APPLICATIONS
With its compact housing and concentrated
optical distribution, the LEVIN Low Profile
Landscape Light supports decorative accent
lighting in suitable exterior environments.
Landscape Borders
Introduce focused decorative illumination
to selected garden borders and landscape
design elements.

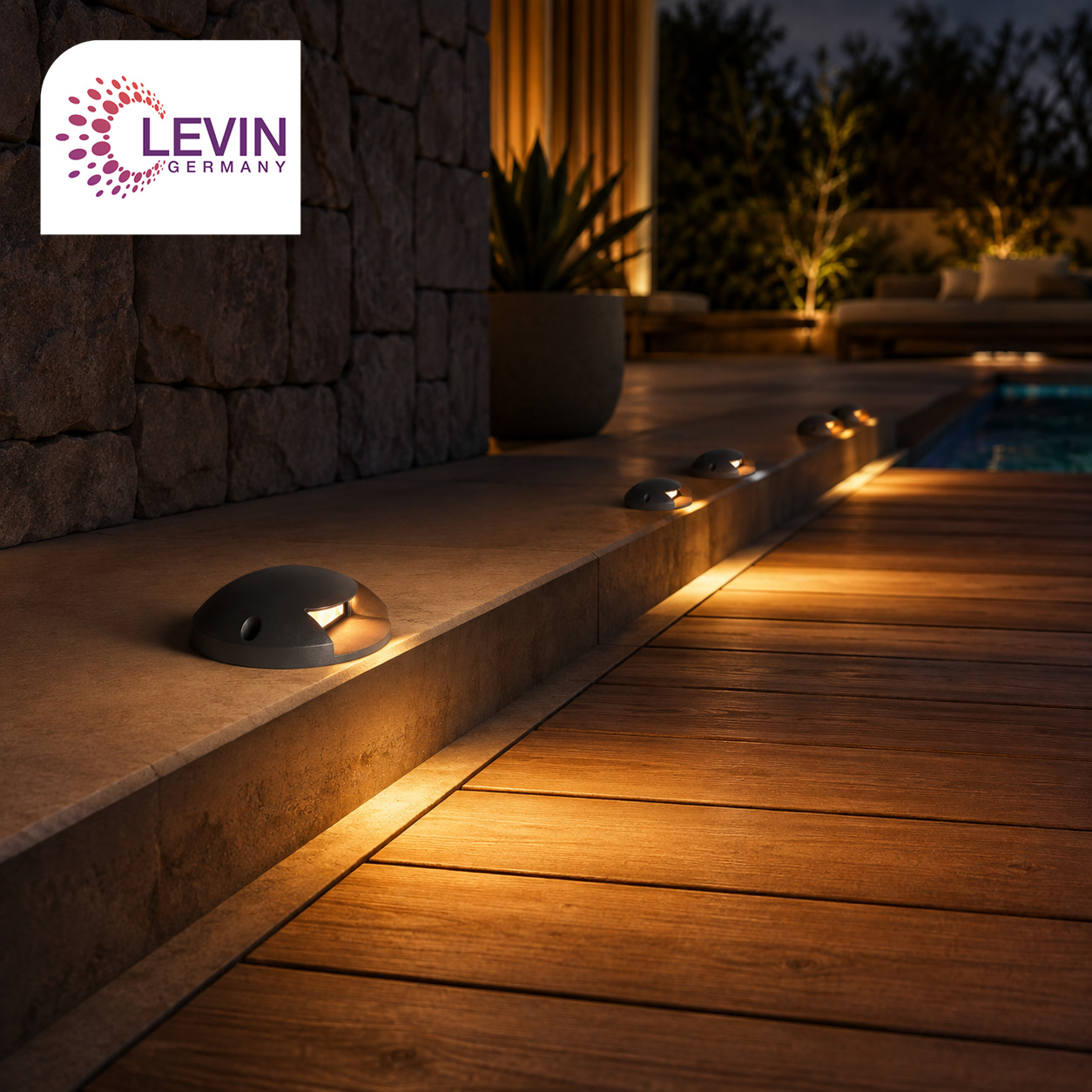

Pathway Edges
Integrate discreet accent lighting
along suitable exterior pedestrian
routes and pathway details.
Architectural Features
Highlight selected details around
residential courtyards, building
perimeters and exterior structures.
Final installation position, lighting levels
and fixture spacing should follow project
requirements. This accent light should not
replace independently specified safety
or emergency lighting.
06 / PRODUCT QUESTIONS
Code 2193 is rated at 3W, while
Code 2194 provides a 5W configuration.
The models differ in rated power, LED
quantity and physical dimensions.
Both share the same fixed beam angle,
voltage and colour temperature options.
Both models feature a fixed 10-degree
optical distribution.
Both fixtures are listed in 3000K,
4000K and 6500K fixed white-light
configurations.
Yes. Both models have an IP65 protection
rating. Correct installation and protection
of electrical connections remain essential.
Codes 2193 and 2194 are specified
for DC24V operation.
Both models use Lumileds LED chips.
Code 2193 contains three LEDs,
while Code 2194 contains five.
Code 2193 measures Ø100 × 58 × 40mm.
Code 2194 measures Ø120 × 80 × 41mm.
Yes. LEVIN lists a three-year warranty
for both configurations.
