Narrow Architectural Accent
The upward light creates a tighter visual accent that helps emphasise façade height, wall texture and architectural rhythm.
Narrow Beam EffectArchitectural Accent

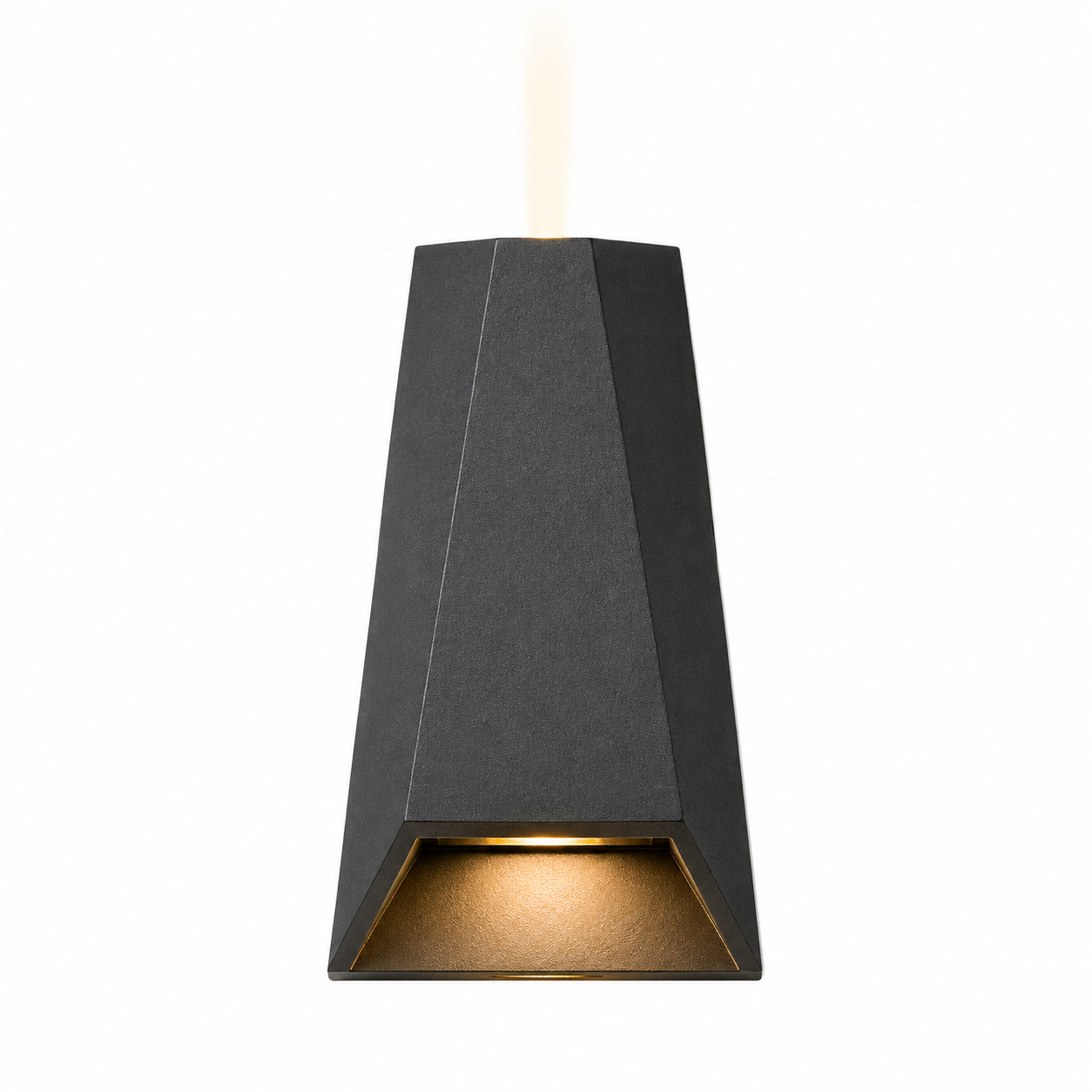

The LEVIN Dual Beam LED Wall Light is designed to create a visually distinctive lighting pattern on exterior walls, façades and architectural surfaces. Its compact body combines a narrow upward beam with broader downward illumination, adding depth and contrast to vertical surfaces while maintaining a clean and discreet fixture profile.
Product Code 1394 uses a 5W + 2W LED configuration for a total rated power of 7W. The fixture delivers 3000K warm white light through SMD and COB LED technology, with 90 lm/W luminous efficacy, IP65 protection and a die-cast aluminium housing for professional exterior applications.

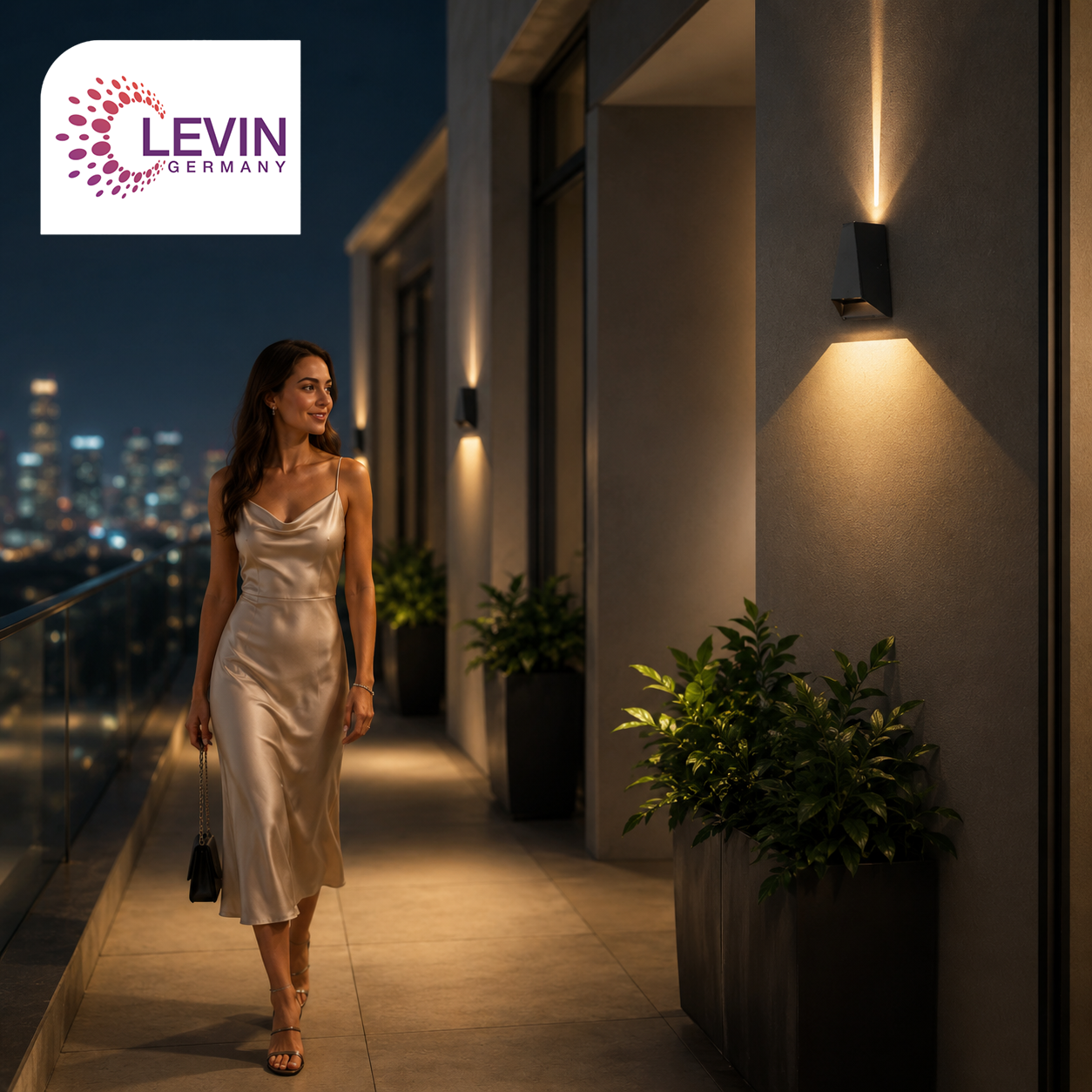

The defining feature of this fixture is its asymmetrical up-and-down lighting effect. A narrower upward beam is combined with broader downward illumination, producing a more dramatic wall pattern than a conventional symmetrical wall light.
The upward light creates a tighter visual accent that helps emphasise façade height, wall texture and architectural rhythm.
The downward component spreads more broadly across the wall surface, creating a balanced contrast with the narrower upper beam.
The combined effect turns light itself into an architectural feature for façades, entrances, columns and selected exterior walls.
The fixture combines a 5W and 2W LED arrangement for a total rated power of 7W. Its 3000K warm white output creates a welcoming visual atmosphere that works particularly well with stone, concrete, wood and darker exterior finishes.
The LED system is divided into two power components, producing a total rated power of 7W.
The fixed 3000K colour temperature provides a warmer visual appearance for hospitality, residential and architectural exterior lighting.
The published luminous efficacy is 90 lumens per watt.
Product Code 1394 combines SMD and COB LED technologies within the same fixture. The published specification also identifies an isolated driver and an input voltage range of 85–265V.
The dual LED configuration combines SMD and COB technologies to produce the fixture’s distinctive two-direction lighting effect.
The fixture is specified with an isolated driver for its electrical system.
The published input voltage range is 85–265V.
The housing is manufactured from die-cast aluminium and carries an IP65 protection rating, making the fixture suitable for appropriate outdoor wall installations when correctly installed.
The IP65 rating provides protection suitable for exterior wall applications exposed to dust and water conditions within the limits of the rating.
The compact housing uses die-cast aluminium construction for architectural lighting applications.
Three listed housing colours allow the fixture to coordinate with a wide range of contemporary façade finishes.
Review the confirmed technical data for LEVIN Dual Beam LED Wall Light Code 1394 before specifying the fixture for residential, hospitality or commercial exterior lighting projects.
| Specification | Code 1394 |
|---|---|
| Product Type | Dual Beam LED Wall Light |
| Product Code | 1394 |
| Power Configuration | 5W + 2W |
| Total Rated Power | 7W |
| Input Voltage | 85–265V |
| Colour Temperature | 3000K Warm White |
| LED Type | SMD + COB |
| Driver | Isolated |
| Luminous Efficacy | 90 lm/W |
| CRI | 75 |
| Protection Rating | IP65 |
| Material | Die-Cast Aluminium |
| Dimensions | 175 × 110 × 65mm |
| Housing Colours | Black / White / Grey |
| Working Temperature | −10°C to +50°C |
| Recommended Control | ON/OFF |
| Other Versions | DALI / 1–10V / TRIAC |
| Warranty | 2 Years |
The fixture measures approximately 175 × 110 × 65mm. Its compact body remains visually discreet on the wall, allowing the projected light pattern to become the primary architectural feature.
The clean rectangular form works well on façades, entrance walls, columns and exterior feature surfaces where the lighting effect is more important than the physical size of the fixture.
Black, white and grey housing options provide flexibility for coordination with contemporary architectural finishes.
DEPTH
65mm
Product Code 1394
The warm 3000K output, distinctive dual-beam effect and IP65 protection make this fixture suitable for projects where decorative wall illumination and exterior durability are both required.
The published product code is 1394.
The fixture uses a 5W + 2W LED configuration for a total rated power of 7W.
It creates a dual-direction architectural effect with a narrower upward beam and broader downward illumination.
The fixture provides fixed 3000K warm white illumination.
The product combines SMD and COB LED technologies.
The published luminous efficacy is 90 lm/W.
The published colour rendering index is CRI 75.
Yes. The fixture has an IP65 protection rating and is intended for appropriate exterior wall installations when correctly installed.
The published dimensions are approximately 175 × 110 × 65mm.
The listed housing colours are black, white and grey.
ON/OFF is listed as the recommended control, with DALI, 1–10V and TRIAC shown as other versions.
Yes. LEVIN specifies a two-year warranty for Product Code 1394.
Explore additional LEVIN outdoor wall lights for façades, entrances, hospitality environments and contemporary architectural applications.
Planning a villa, hospitality or commercial exterior lighting project? Contact LEVIN for assistance selecting the appropriate wall-lighting solution, control option and installation arrangement for your project.
| Light colour / CCT | 3000K |
|---|---|
| IP rating | IP65 |
| CRI | 75 |
| Finish | Black, Grey, White |
| Material | Aluminium |
| Input voltage | 85-265 V |
