Bring clean architectural lighting to pathways and garden environments with the LEVIN Solar Pathway Light. Designed for independent solar-powered operation, this IP65-rated family combines compact 300mm-high forms with rechargeable energy storage for residential, hospitality and commercial landscape projects.
Available in two body configurations, Codes 2145 and 2146 share a 2W rated power, a separately listed 0.6W output power, a 3.7V / 2200mAh rechargeable battery and a dedicated 6V / 2W solar panel. Both versions are available in 3000K warm white and 6000K cool white.
Select between two body configurations according to the visual proportions and installation requirements of the landscape. Both models share the same lighting, battery, solar panel and protection specifications.
A more compact rectangular configuration with a 125mm body depth and 300mm overall height for garden borders, pathway edges and smaller-scale landscape compositions.

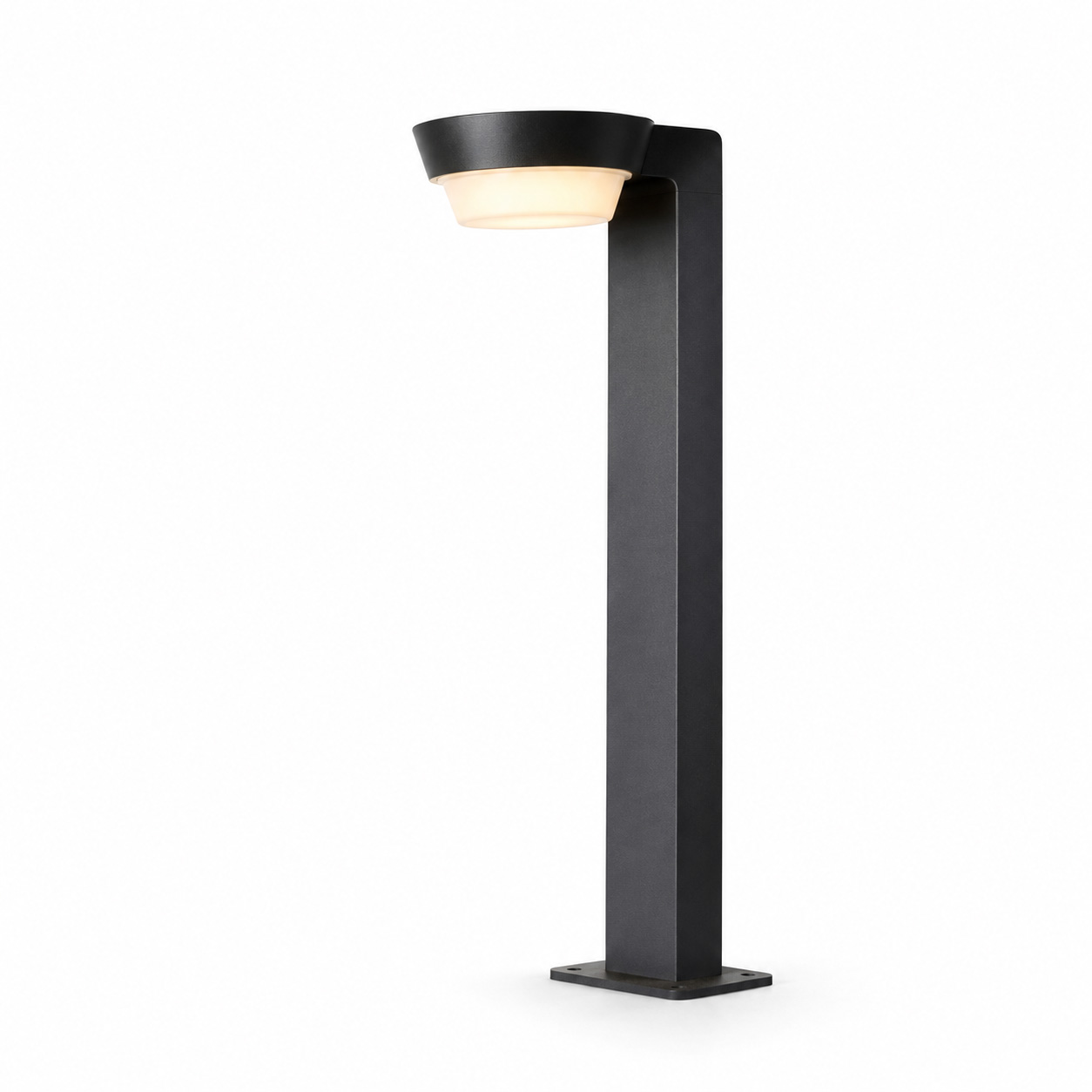

A broader square-proportioned configuration with the same 300mm overall height, offering a more substantial architectural presence while retaining the shared solar lighting system.
Codes 2145 and 2146 share the same published lighting, battery, solar panel and IP65 specifications. Their confirmed difference is body proportion and overall footprint.
The Solar Pathway Light family is designed to complement rather than dominate contemporary landscapes. Both configurations use clean geometric proportions and a 300mm overall height to create a consistent low-level architectural presence.
The 165 × 125mm body profile creates a slimmer visual form for narrow pathway edges and compact garden borders.
The 165 × 165mm footprint creates a broader and more substantial architectural form while retaining the same overall height.
Both fixtures use die-cast aluminium construction with a tempered-glass diffuser and four listed exterior finish options.
Both Solar Pathway Light configurations use a dedicated 6V / 2W solar panel to charge an internal 18650 rechargeable battery rated at 3.7V / 2200mAh. This independent power system supports flexible installation in suitable outdoor environments where conventional wired electrical access may not be preferred.
The dedicated solar panel converts available daylight into charging energy for the internal rechargeable battery.
Both fixtures use an 18650 rechargeable battery with a published voltage of 3.7V and a capacity of 2200mAh.
The listed charging time is approximately 6–8 hours, while the specified working time is also approximately 6–8 hours under the stated product conditions.
Actual solar charging and operating time depend on sunlight exposure, installation orientation, weather conditions, battery condition and the specific operating environment.
The Solar Pathway Light family combines a 2W rated power with a separately listed 0.6W output power. Both versions are available in 3000K warm white and 6000K cool white, with a published colour rendering index of Ra ≥80.
The manufacturer lists rated power and output power separately, so both values are retained independently rather than treated as equivalent specifications.
Choose 3000K warm white for a softer landscape atmosphere or 6000K cool white for a cooler and more defined outdoor appearance.
Both configurations have a published colour rendering index of Ra ≥80 for general architectural white-light applications.
A numerical beam angle, luminous flux, luminous efficacy and dimming function are not specified in the published technical data. No unlisted photometric values have been assumed.
Compare the confirmed technical data for LEVIN Solar Pathway Light Codes 2145 and 2146 before selecting the appropriate body configuration for your residential, hospitality or commercial landscape lighting project.

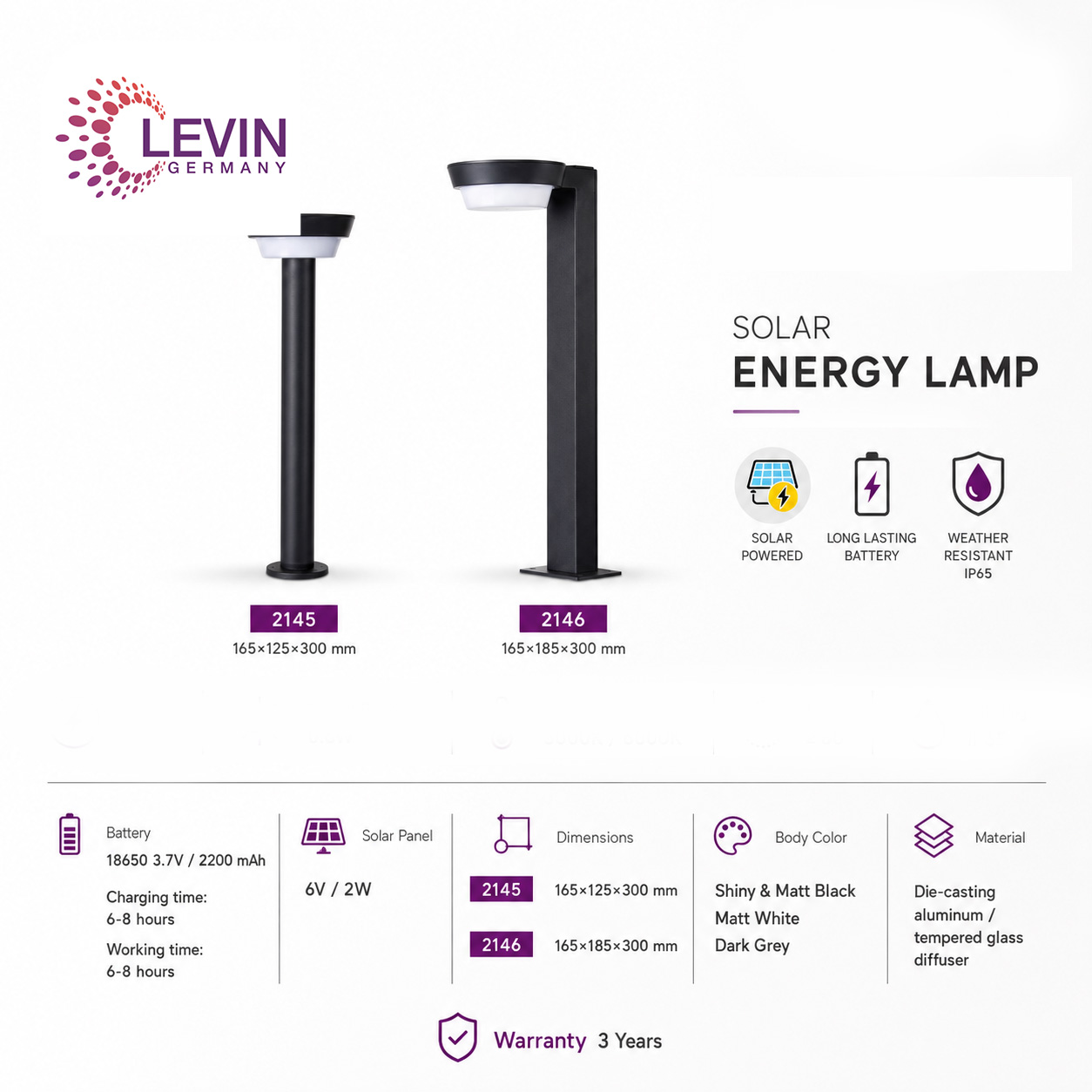

| Specification | Code 2145 | Code 2146 |
|---|---|---|
| Product Type | Solar Pathway Light | Solar Pathway Light |
| Rated Power | 2W | 2W |
| Output Power | 0.6W | 0.6W |
| Colour Temperature | 3000K / 6000K | 3000K / 6000K |
| CRI / Ra | ≥80 | ≥80 |
| Protection Rating | IP65 | IP65 |
| Battery Type | 18650 Rechargeable Battery | 18650 Rechargeable Battery |
| Battery Specification | 3.7V / 2200mAh | 3.7V / 2200mAh |
| Charging Time | 6–8 Hours | 6–8 Hours |
| Working Time | 6–8 Hours | 6–8 Hours |
| Solar Panel | 6V / 2W | 6V / 2W |
| Dimensions | 165 × 125 × 300mm | 165 × 165 × 300mm |
| Body Material | Die-Cast Aluminium | Die-Cast Aluminium |
| Diffuser | Tempered Glass | Tempered Glass |
| Body Finishes | Shiny Black / Matt Black / Matt White / Dark Grey | Shiny Black / Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years |
Both fixtures operate from their rechargeable battery and dedicated solar panel system, so no conventional AC input voltage is listed in the published technical specifications.
The LEVIN Solar Pathway Light family maintains a shared 300mm overall height while offering two different body footprints for different landscape compositions.
Code 2145 measures 165 × 125 × 300mm and provides a slimmer rectangular form, while Code 2146 measures 165 × 165 × 300mm and creates a broader square-proportioned presence.
Both models use die-cast aluminium construction with a tempered-glass diffuser and are available in Shiny Black, Matt Black, Matt White and Dark Grey finishes.
AVAILABLE BODY PROFILES
165 × 125 / 165 × 165mm
Code 2145 / Code 2146
The compact 300mm height, rechargeable solar system and IP65 protection make this family suitable for landscape projects where independent low-level illumination and a clean architectural appearance are required.
Install the solar panel where it can receive suitable daylight exposure. Actual charging and operating times vary according to sunlight conditions, orientation, weather and battery state.
Both models share the same lighting and solar specifications. Code 2145 measures 165 × 125 × 300mm, while Code 2146 measures 165 × 165 × 300mm.
Yes. Both versions use a dedicated 6V / 2W solar panel to charge the internal rechargeable battery.
Both models use an 18650 rechargeable battery rated at 3.7V / 2200mAh.
The published charging time is approximately 6–8 hours under suitable charging conditions.
The specified working time is approximately 6–8 hours under the stated product conditions.
The published technical data lists 2W as rated power and 0.6W separately as output power. These are retained as two distinct specifications.
Both configurations are available in 3000K warm white and 6000K cool white.
Yes. Both models have an IP65 protection rating and are intended for appropriate exterior applications when installed correctly.
The body is manufactured from die-cast aluminium and the diffuser is specified as tempered glass.
The listed finishes are Shiny Black, Matt Black, Matt White and Dark Grey.
Yes. LEVIN specifies a three-year warranty for both Codes 2145 and 2146.
Explore additional outdoor solar fixtures in the LEVIN Solar Lighting Collection for pathways, gardens, residential landscapes and contemporary exterior applications.
For general information about energy-efficient outdoor lighting, visit the U.S. Department of Energy Energy Saver.
Planning a residential, hospitality or commercial landscape lighting project? Contact LEVIN for assistance selecting the appropriate Solar Pathway Light body configuration, colour temperature, finish and installation position for effective solar charging.
| Rated power | 2 W |
|---|---|
| Light colour / CCT | 3000K, 6000K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Finish | Black, Grey, White |
| Material | Aluminium |
