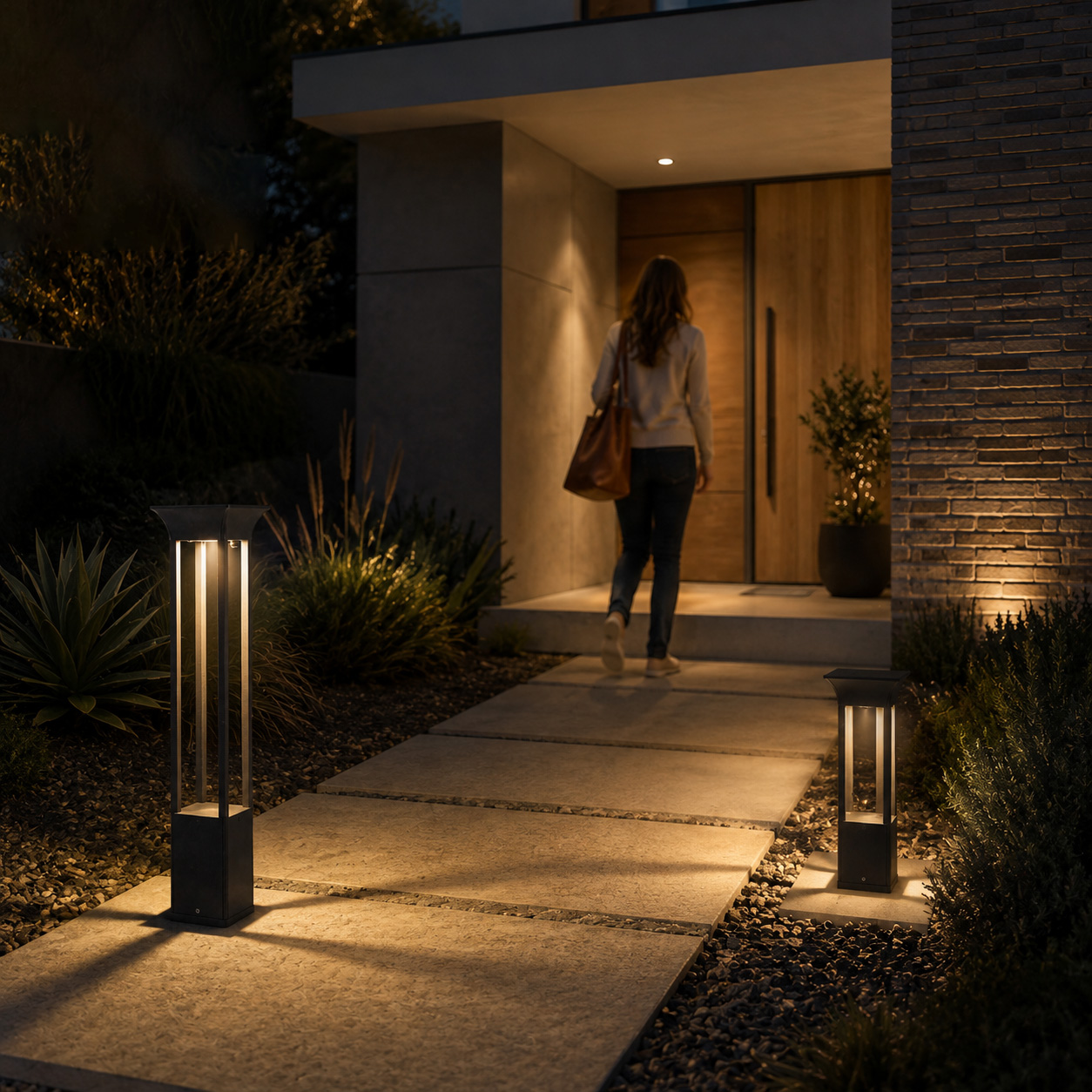

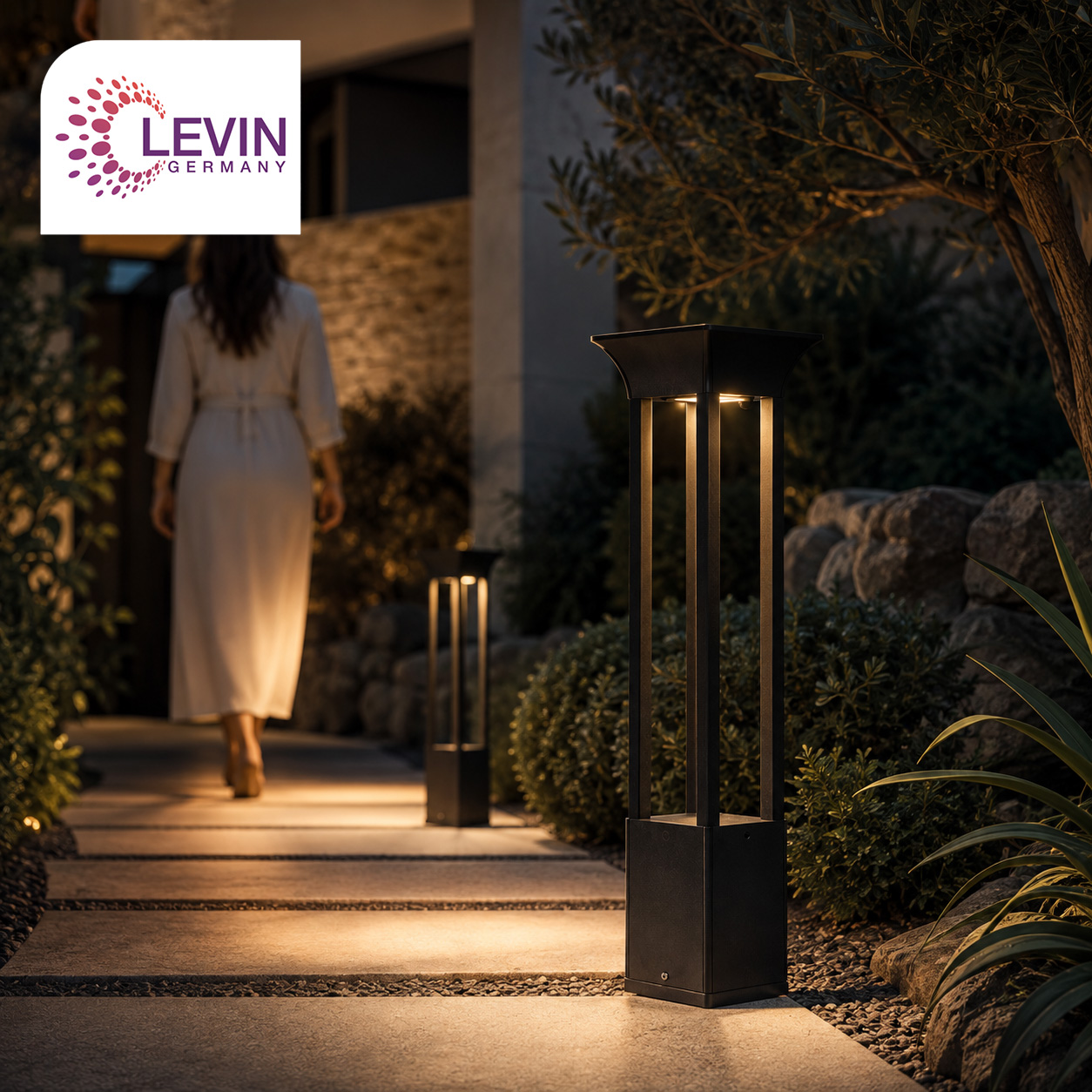

Bring clean geometric form and independent solar illumination to contemporary landscapes with the LEVIN Square Solar Bollard. Its tall open-frame structure creates a distinctive architectural presence for pathways, gardens, villa landscapes and hospitality environments.
Available in 400mm and 650mm heights, Codes 2147 and 2148 share a listed 0.6W output power, CREE LED reference, IP65 protection, a 3.7V / 2200mAh rechargeable battery and a dedicated 6V / 3W solar panel. Both models are available in 3000K warm white and 6000K cool white.
Select the appropriate Square Solar Bollard according to the visual scale and installation requirements of the landscape. Both versions share the same lighting, solar panel, battery, materials and protection specifications.
The more compact configuration combines a 170 × 170mm square footprint with a 400mm overall height for pathway edges, garden borders and lower-scale landscape compositions.
The taller configuration extends the same open-frame design to 650mm, creating a stronger architectural presence along pathways, villa gardens and hospitality landscapes.
The confirmed difference between Codes 2147 and 2148 is overall height. Both models share the same 170 × 170mm footprint and the same published solar, battery and lighting specifications.
The Square Solar Bollard combines a solid lower section with a tall open-frame structure, creating a clean geometric form that functions as both a lighting fixture and an architectural landscape element.
The vertical open-frame construction creates a recognisable modern silhouette suitable for contemporary gardens, pathways and architectural exterior spaces.
Both models maintain the same square footprint, allowing the two heights to be used together within one coordinated landscape lighting concept.
The body is manufactured from die-cast aluminium and incorporates a tempered-glass diffuser, with four listed exterior finish options.
Both Square Solar Bollard models use a dedicated 6V / 3W solar panel to charge an internal 18650 rechargeable battery rated at 3.7V / 2200mAh. This independent energy system supports flexible outdoor installation where solar-powered landscape lighting is preferred.
The dedicated solar panel converts available daylight into charging energy for the internal rechargeable battery.
Both models use an 18650 rechargeable battery with a published voltage of 3.7V and a capacity of 2200mAh.
The listed charging time is approximately 6–8 hours, while the specified working time is also approximately 6–8 hours under the stated product conditions.
Actual solar charging and operating time depend on sunlight exposure, installation orientation, weather conditions, battery condition and the specific operating environment.
The Square Solar Bollard uses a CREE LED reference with a listed output power of 0.6W. Both models are available in 3000K warm white and 6000K cool white, with a published colour rendering index of Ra ≥80.
The published technical specification identifies CREE as the LED reference for both Codes 2147 and 2148.
Choose 3000K warm white for a softer landscape atmosphere or 6000K cool white for a cooler and crisper outdoor lighting appearance.
Both models have a published colour rendering index of Ra ≥80 for general architectural white-light applications.
The published technical data lists 0.6W as Output Power but does not provide a separate Rated Power value. Beam angle, luminous flux, luminous efficacy and dimming functions are also not specified, so no additional photometric values have been assumed.
Compare the confirmed technical data for LEVIN Square Solar Bollard Codes 2147 and 2148 before selecting the appropriate height for your residential, hospitality or commercial landscape lighting project.
| Specification | Code 2147 | Code 2148 |
|---|---|---|
| Product Type | Solar Outdoor Bollard | Solar Outdoor Bollard |
| LED Reference | CREE | CREE |
| Output Power | 0.6W | 0.6W |
| Colour Temperature | 3000K / 6000K | 3000K / 6000K |
| CRI / Ra | ≥80 | ≥80 |
| Protection Rating | IP65 | IP65 |
| Battery Type | 18650 Rechargeable Battery | 18650 Rechargeable Battery |
| Battery Specification | 3.7V / 2200mAh | 3.7V / 2200mAh |
| Charging Time | 6–8 Hours | 6–8 Hours |
| Working Time | 6–8 Hours | 6–8 Hours |
| Solar Panel | 6V / 3W | 6V / 3W |
| Dimensions | 170 × 170 × 400mm | 170 × 170 × 650mm |
| Body Material | Die-Cast Aluminium | Die-Cast Aluminium |
| Diffuser | Tempered Glass | Tempered Glass |
| Body Finishes | Shiny Black / Matt Black / Matt White / Dark Grey | Shiny Black / Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years |
No conventional AC input voltage is listed because both fixtures operate from their rechargeable battery and dedicated solar panel system. A separate Rated Power value is not provided in the published technical data.
Both LEVIN Square Solar Bollard models maintain the same 170 × 170mm square footprint, allowing the 400mm and 650mm configurations to be combined within one coordinated landscape lighting design.
Code 2147 provides the more compact 400mm option, while Code 2148 extends the same architectural language to 650mm for a taller and more prominent landscape presence.
The die-cast aluminium body is paired with a tempered-glass diffuser and is available in Shiny Black, Matt Black, Matt White and Dark Grey finishes.
AVAILABLE HEIGHTS
400 / 650mm
Code 2147 / Code 2148
The open-frame structure, rechargeable solar system and IP65 protection make the Square Solar Bollard suitable for outdoor projects where decorative lighting, architectural form and independent solar operation are required.
Install the solar panel where it can receive suitable daylight exposure. Actual charging and operating times vary according to sunlight conditions, orientation, weather and battery state.
The main difference is overall height. Code 2147 measures 170 × 170 × 400mm, while Code 2148 measures 170 × 170 × 650mm.
Yes. Both models use a dedicated 6V / 3W solar panel to charge the internal rechargeable battery.
Both versions use an 18650 rechargeable battery rated at 3.7V / 2200mAh.
The listed charging time is approximately 6–8 hours under suitable charging conditions.
The specified working time is approximately 6–8 hours under the stated product conditions.
The published output power is 0.6W for both Codes 2147 and 2148. A separate rated-power value is not listed.
The published technical data lists CREE as the LED reference for both models.
The range is available in 3000K warm white and 6000K cool white configurations.
Yes. Both models have an IP65 protection rating and are intended for appropriate exterior applications when installed correctly.
The body is manufactured from die-cast aluminium and the diffuser is specified as tempered glass.
The listed finishes are Shiny Black, Matt Black, Matt White and Dark Grey.
Yes. LEVIN specifies a three-year warranty for both Codes 2147 and 2148.
Explore additional outdoor solar fixtures in the LEVIN Solar Lighting Collection for pathways, gardens, residential landscapes and contemporary exterior applications.
For general information about solar energy technology, visit the U.S. Department of Energy Solar Energy Technologies Office.
Planning a residential, hospitality or commercial landscape lighting project? Contact LEVIN for assistance selecting the appropriate Square Solar Bollard height, colour temperature, finish and installation position for effective solar charging.
| Light colour / CCT | 3000K, 6000K |
|---|---|
| IP rating | IP65 |
| CRI | ≥ 80 |
| Finish | Black, Grey, White |
| Material | Aluminium |
