LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Bring architectural details into focus with the
LEVIN 100mm Recessed Landscape Light. Combining
a compact circular profile with a discreet recessed
construction, this 3W IP65-rated fixture provides
a refined solution for exterior accent lighting
and contemporary landscape environments.
Available in separate fixed white-light and RGB
configurations, the collection features five
listed optical beam angles, a Ø100mm outer
diameter and two published housing heights.
Both models feature a black exterior finish
and a three-year warranty.
01 / MODEL SELECTION
Choose between a fixed white-light configuration
and a dedicated RGB model. Both versions share
the same nominal power, circular recessed design
and IP65 protection rating.
CODE 2196
Available in 3000K warm white, 4000K
neutral white and 6500K cool white
configurations, featuring three
San-an LED chips.
CODE 2197
A dedicated RGB configuration equipped
with three OSRAM LED chips and
specified for DC24V operation.
*Code 2196 lists DC24V and AC220V as electrical
options. Confirm whether these represent separate
product versions before ordering.
The LED chip assignments are retained exactly
as published for this product family.
02 / OPTICAL PERFORMANCE
From concentrated architectural highlights
to wider exterior accents, the LEVIN 100mm
Recessed Landscape Light provides five
listed optical configurations to support
different lighting design requirements.
These are available optical configurations,
not a mechanically adjustable beam.
Confirm the required optical version
when selecting the product code.
03 / TECHNICAL DATA
Compare both LEVIN 100mm Recessed Landscape
Light configurations to select the required
light colour, LED chip and input voltage
for your outdoor lighting project.
| Specification | Code 2196 | Code 2197 |
|---|---|---|
| Rated Power | 3W | 3W |
| Light Colour | 3000K / 4000K / 6500K | RGB |
| LED Chip | San-an | OSRAM |
| LED Quantity | 3 pcs | 3 pcs |
| Input Voltage | DC24V / AC220V* | DC24V |
| CRI / Ra | ≥80 | ≥80** |
| Protection Rating | IP65 | IP65 |
| Beam Angle Options | 8° / 15° / 30° / 45° / 60° | |
| Outer Diameter | Ø100mm | Ø100mm |
| Housing Heights | 67mm / 80mm*** | |
| Body Colour | Black | Black |
| Warranty | 3 Years | 3 Years |
*DC24V and AC220V are listed for Code 2196.
Simultaneous dual-voltage compatibility
is not confirmed.
**Ra ≥80 is presented as a family-level
specification. Confirm RGB-specific colour
rendering if required for the project.
***The catalogue lists Ø100 × 67mm and
Ø100 × 80mm configurations without assigning
either height to an individual product code.

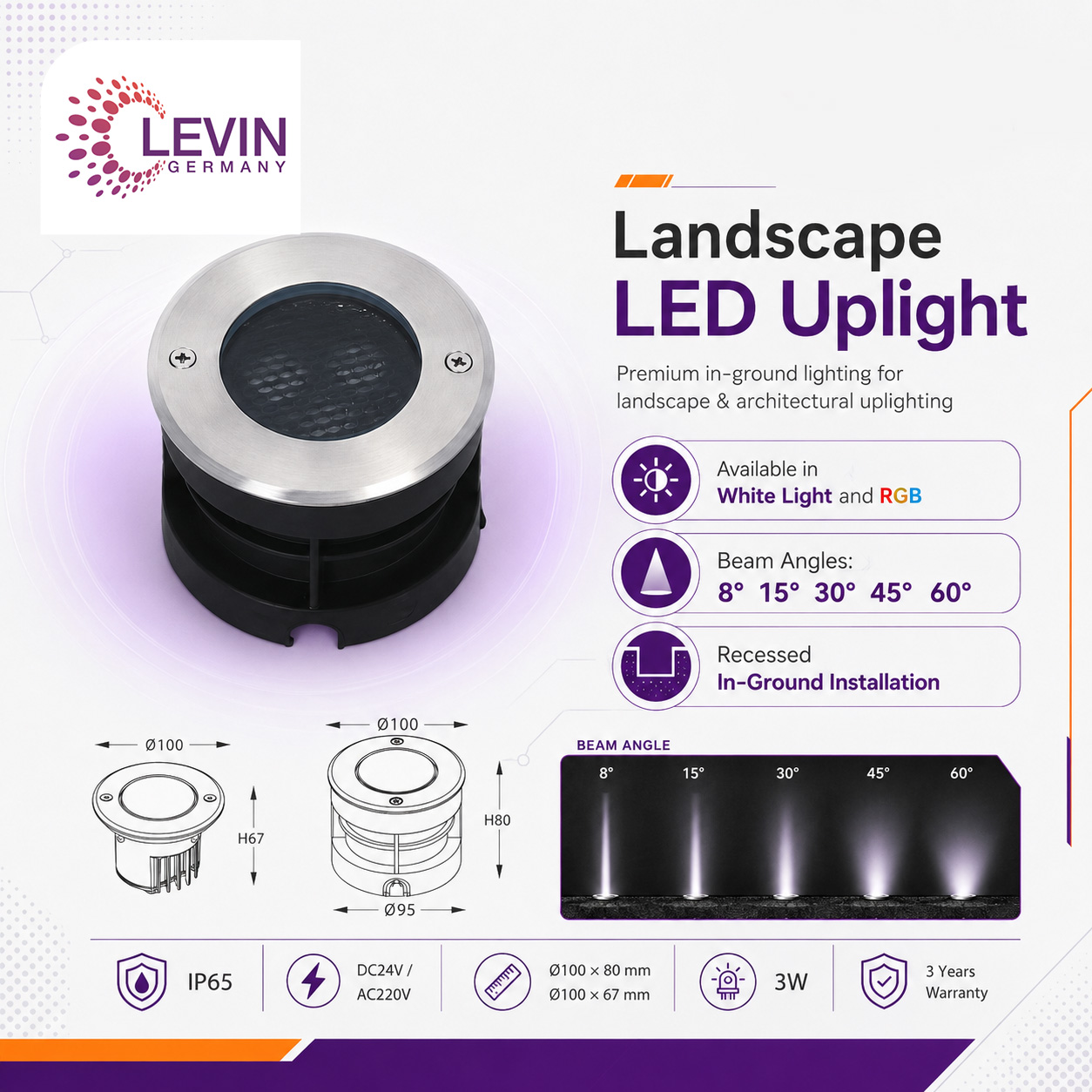

04 / DESIGN & DIMENSIONS

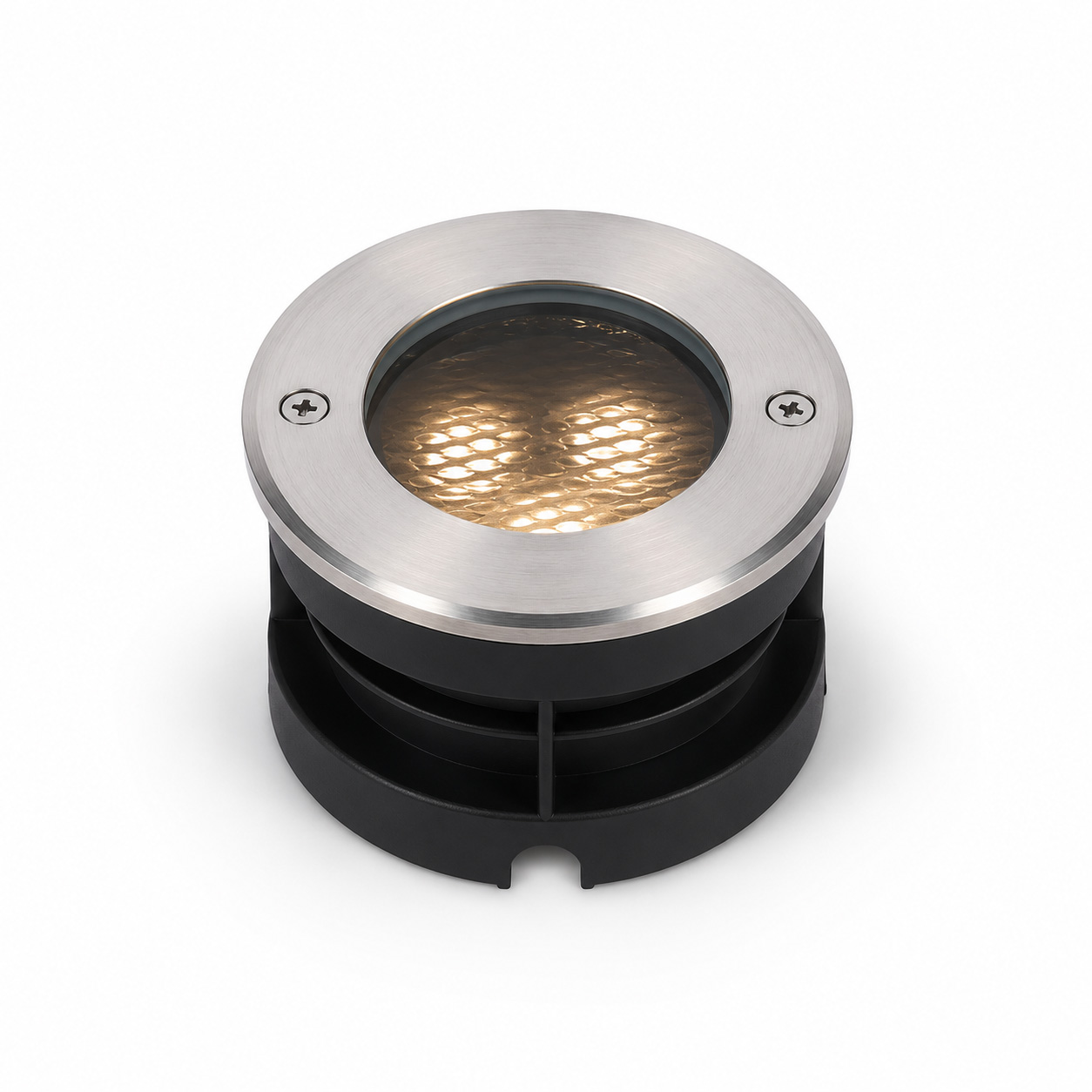

The LEVIN 100mm Recessed Landscape Light
features a circular upper flange surrounding
its central optical section, with a
cylindrical recessed housing beneath.
The published technical drawings confirm
a common outer diameter of Ø100mm and
two available housing heights:
67mm and 80mm.
The 80mm drawing additionally identifies
a lower housing diameter of Ø95mm.
The product is finished in black.
OUTER DIAMETER
Ø100 mm
LISTED HOUSING HEIGHTS
67 / 80 mm
Two dimensional configurations
The catalogue does not clearly assign the
two housing heights to Codes 2196 and 2197.
Confirm the exact dimension and installation
cut-out requirements of the selected version
before preparing installation drawings.
05 / APPLICATIONS
Its Ø100mm circular design and multiple
optical configurations make this fixture
an option for exterior projects where
a compact recessed lighting solution
is preferred.

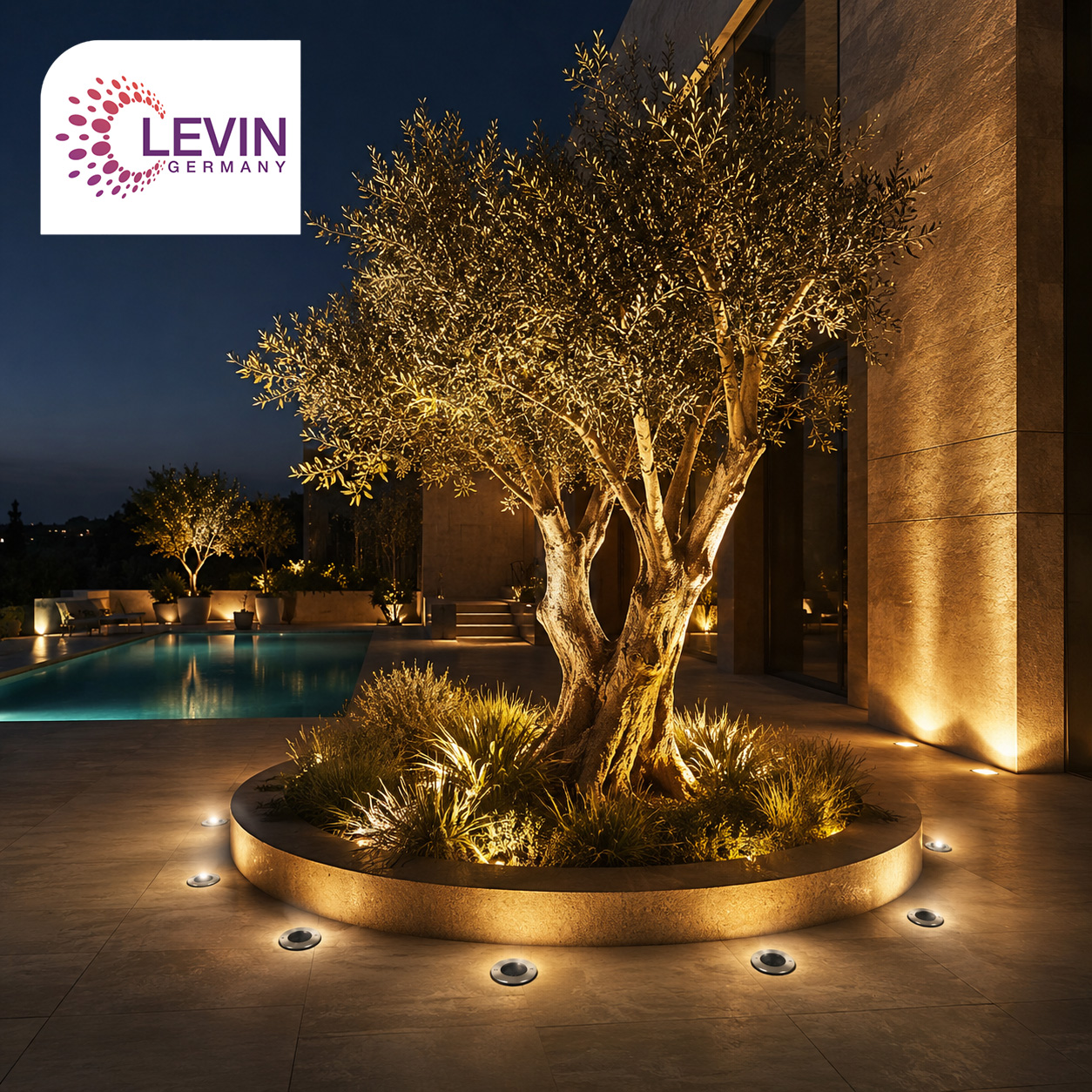

Garden Features
Introduce focused lighting accents
to selected planting arrangements
and decorative landscape elements.
Architectural Details
Integrate compact recessed lighting
into suitable exterior architectural
surfaces and features.

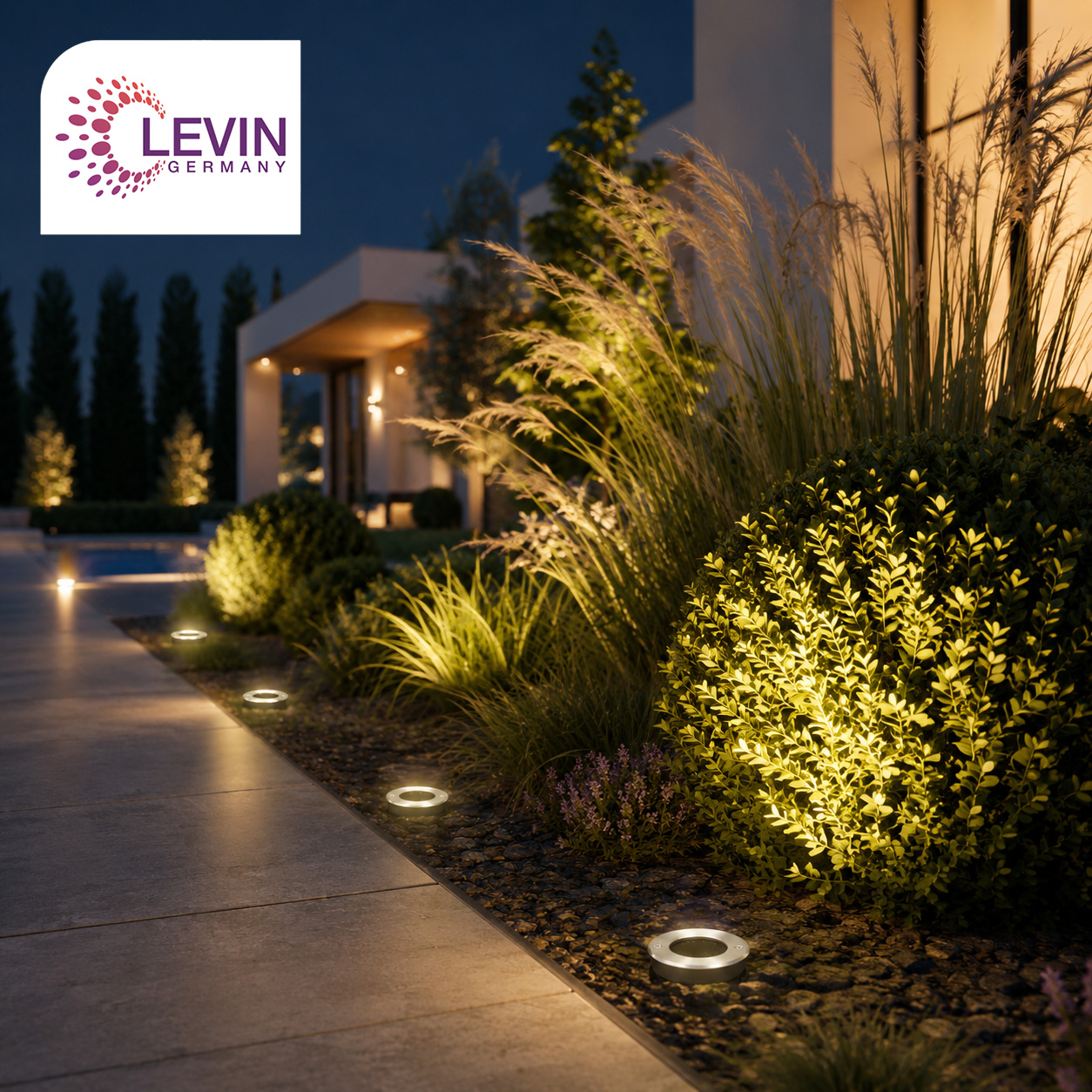

Residential Landscapes
Create decorative lighting concepts
for courtyards, villa landscapes
and contemporary outdoor spaces.
Final lighting performance depends on fixture
positioning, selected optic and site conditions.
Confirm the appropriate installation method
before specification.
06 / PRODUCT QUESTIONS
Both Code 2196 and Code 2197 are
rated at 3W.
Code 2196 offers fixed white-light
configurations, while Code 2197 is
listed as an RGB version. Their LED
chip and voltage specifications also differ.
Code 2196 is available in 3000K,
4000K and 6500K configurations.
Code 2197 is listed as RGB.
The catalogue lists 8°, 15°, 30°,
45° and 60° optical options.
Code 2196 lists DC24V and AC220V
electrical options. Code 2197
is specified for DC24V operation.
Code 2196 is listed with three San-an
LEDs, while Code 2197 has three OSRAM LEDs.
The family lists Ø100 × 67mm and
Ø100 × 80mm configurations.
The exact dimension of each code
requires confirmation.
Both models have an IP65 protection
rating. Correct installation and
adequately protected electrical
connections remain essential.
Yes. LEVIN specifies a three-year
warranty for both configurations.
EXPLORE LEVIN
Discover additional professional outdoor
fixtures in the
LEVIN Garden Lighting Collection
for residential landscapes and
architectural exterior projects.
Learn more about LED lighting technology
through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning an outdoor architectural or
landscape lighting project? Contact LEVIN
for assistance selecting the appropriate
100mm Recessed Landscape Light model,
beam angle, light colour and
installation configuration.
| Rated power | 3 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 15°, 30°, 45°, 60°, 8° |
| Finish | Black |
