CODE 2161
Fixed White Light
Available in 3000K warm white, 4000K
neutral white and 6500K cool white
configurations.
OSRAM / 48 LEDs
DC24V
DC24V
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Bring architectural surfaces into focus with the
LEVIN Wide Beam Linear Landscape Light. Combining
a slim 1000mm linear profile with a distinctive
110-degree optical distribution, this IP65-rated
fixture offers a refined approach to broad-beam
outdoor and landscape accent lighting.
Available under two product codes, the collection
includes fixed white-light and RGB / RGBW catalogue
configurations, DC24V operation and a published
power specification of 10–15W.
01 / MODEL SELECTION
Select between a fixed white-light configuration
and an RGB / RGBW catalogue version. Both models
share the same linear design, wide optical
distribution and DC24V electrical specification.
CODE 2161
Available in 3000K warm white, 4000K
neutral white and 6500K cool white
configurations.
CODE 2162
The colour-lighting configuration
is listed as RGB / RGBW in the catalogue,
featuring forty-eight San-an LED chips.
The catalogue specifies a 10–15W power range
without assigning an exact wattage to each code.
Code 2162 is listed as RGB / RGBW. Confirm
whether these represent separate product versions
or a combined RGBW configuration before ordering.
02 / OPTICAL PERFORMANCE
Unlike narrow-beam landscape spotlights designed
for concentrated accents, the LEVIN Wide Beam
Linear Light features a fixed 110-degree optical
distribution for broader exterior illumination.
OPTICAL DISTRIBUTION
Broad optical distribution for architectural
and landscape lighting concepts requiring
a wider spread of illumination.
WHITE-LIGHT OPTIONS
Code 2161 is available in 3000K,
4000K and 6500K fixed white-light
configurations.
LED CONFIGURATION
Both models contain forty-eight LED chips,
with OSRAM specified for Code 2161 and
San-an for Code 2162.
The 110° beam is a fixed optical specification.
No adjustable beam mechanism or additional
beam-angle variation is listed.
*Ra ≥80 is a catalogue family-level value.
RGB / RGBW performance requires confirmation
where colour rendering is a critical requirement.
03 / TECHNICAL DATA
Compare the confirmed electrical, optical
and dimensional characteristics of the
LEVIN Wide Beam Linear Landscape Light.
| Specification | Code 2161 | Code 2162 |
|---|---|---|
| Product Type | Wide Beam Linear Landscape Light | |
| Power | 10–15W* | 10–15W* |
| Light Colour | 3000K / 4000K / 6500K | RGB / RGBW** |
| LED Chip | OSRAM | San-an |
| LED Quantity | 48 pcs | 48 pcs |
| Input Voltage | DC24V | DC24V |
| Beam Angle | 110° | 110° |
| CRI / Ra | ≥80 | ≥80*** |
| Protection Rating | IP65 | IP65 |
| Overall Length | 1000mm | 1000mm |
| Technical Table Dimensions | 77 × 31 × 34mm**** | 77 × 31 × 34mm**** |
| Body Colour | Grey | Grey |
| Warranty | 3 Years | 3 Years |
*The 10–15W catalogue power range is not
assigned to individual product codes.
**Code 2162 is listed as RGB / RGBW.
The exact colour configuration requires confirmation.
***Ra ≥80 is presented as a family specification.
****The technical table lists 77 × 31 × 34mm,
while the separate dimensional drawing confirms
an overall length of 1000mm. These measurements
should not be combined into an inferred overall size.
04 / DESIGN & DIMENSIONS

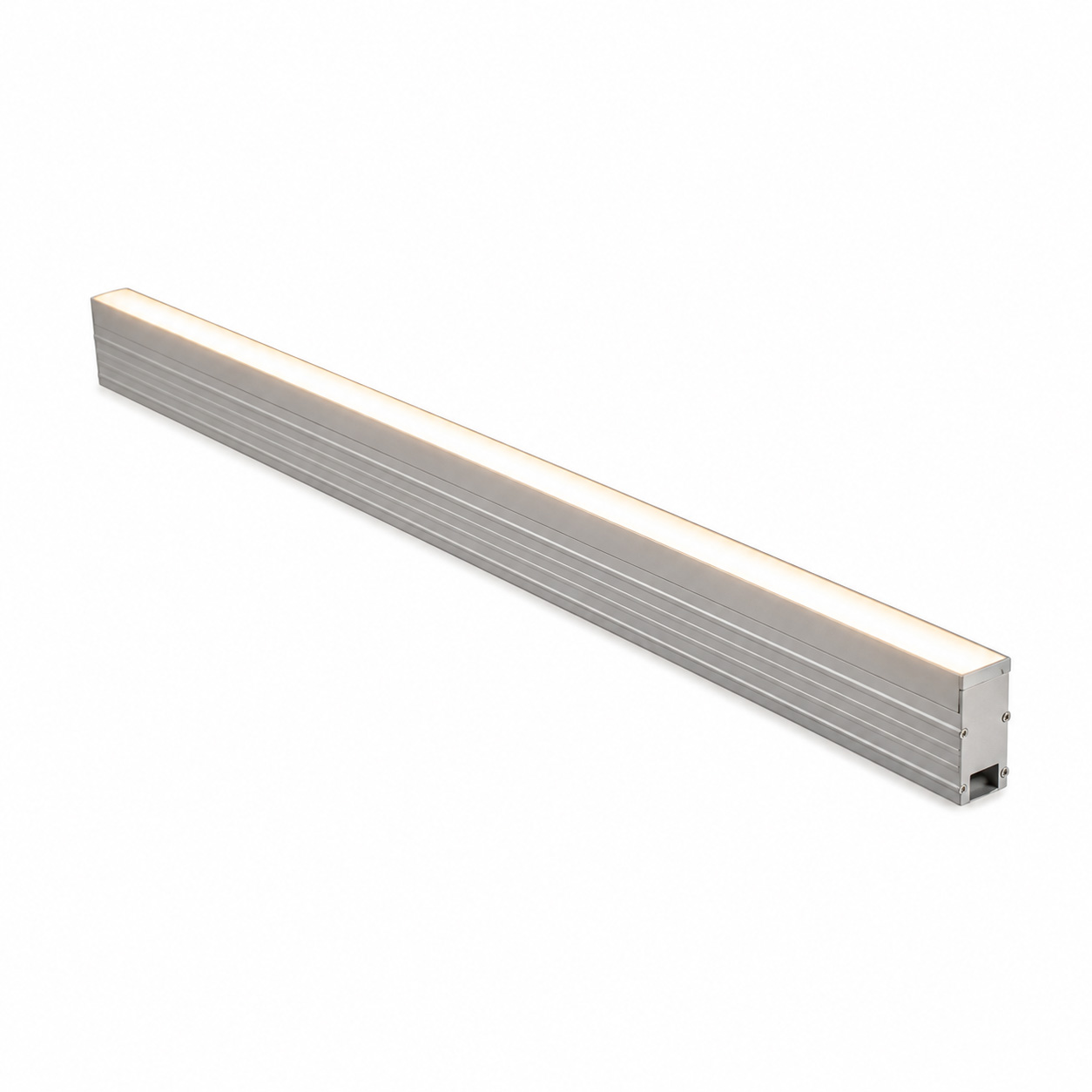

The Wide Beam Linear Landscape Light features
an elongated grey housing with a clean
architectural profile.

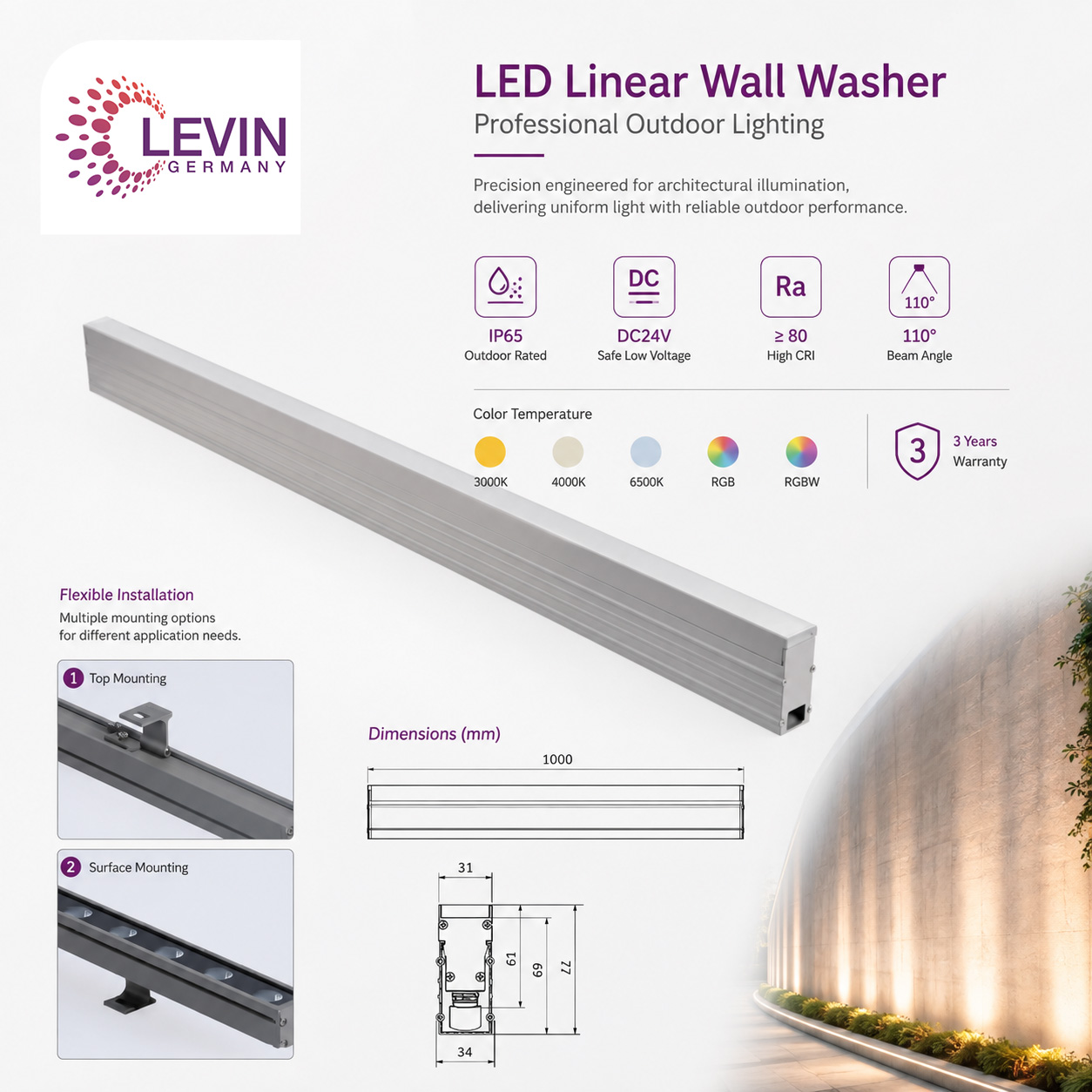

The dimensional drawing confirms an overall
fixture length of 1000mm and separately
identifies cross-sectional measurements.
Its linear construction and broad optical
distribution provide a distinctive lighting
option for selected exterior architectural
surfaces and landscape compositions.
OVERALL FIXTURE LENGTH
1000 mm
CATALOGUE PROFILE DIMENSIONS
77 × 31 × 34 mm
Exact dimensional references require confirmation
The technical drawing additionally shows
31mm, 34mm, 61mm, 69mm and 77mm measurements.
Confirm the mounting and installation dimensions
before preparing architectural drawings.

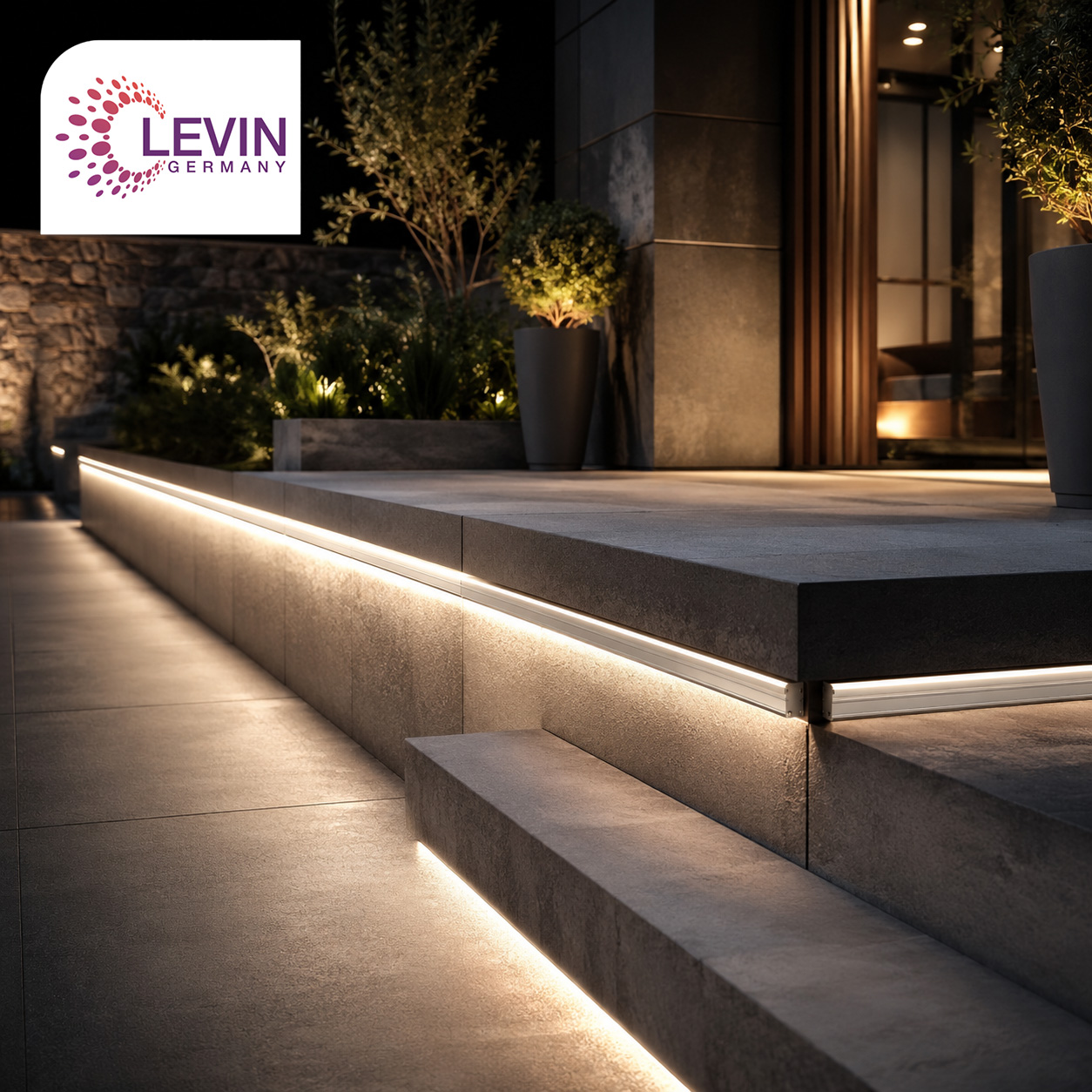

05 / APPLICATIONS
The combination of a 1000mm linear profile
and 110° optical distribution makes this fixture
an option for exterior lighting concepts
requiring a broader lighting spread.

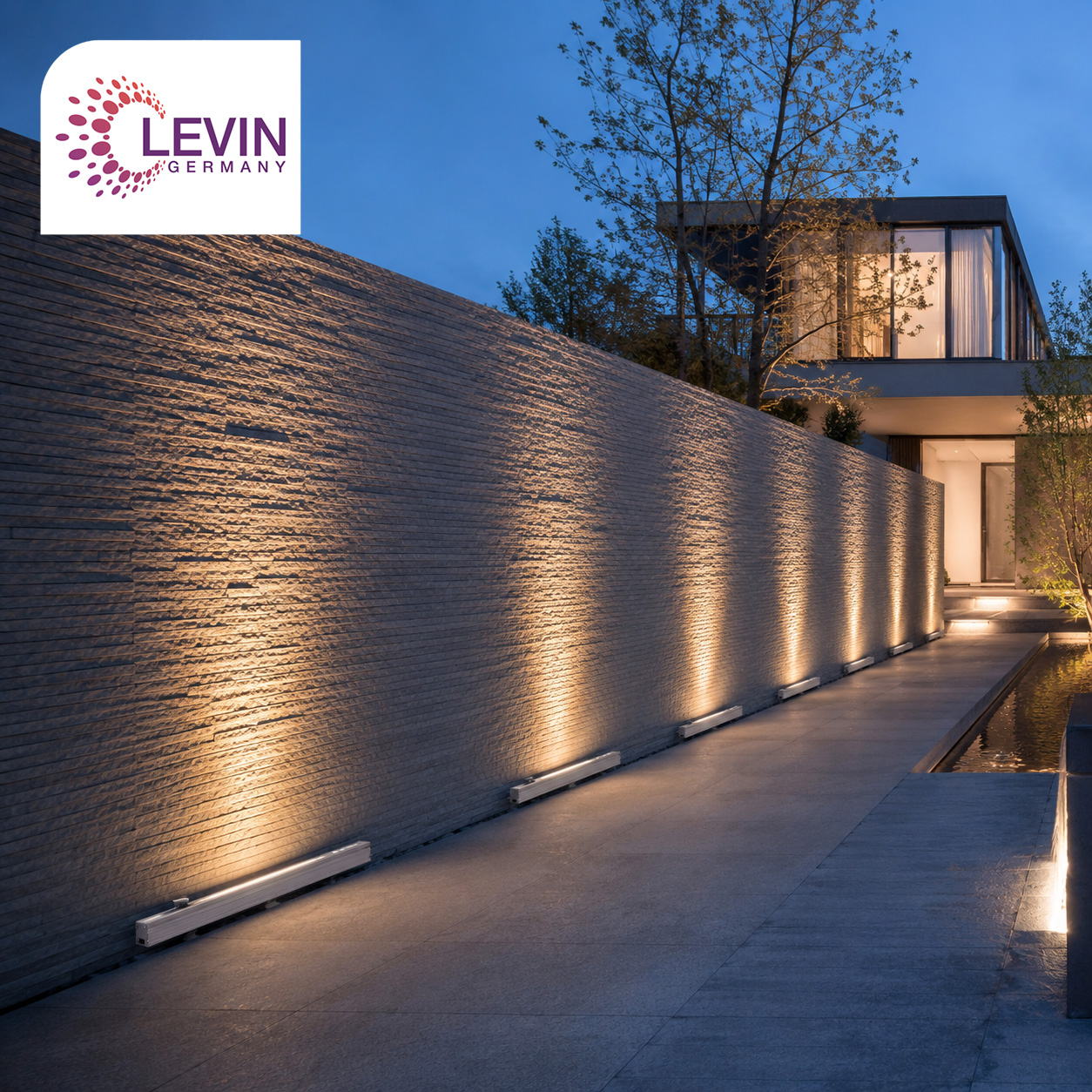

Architectural Façades
Introduce wide-beam linear illumination
to selected exterior building features
and architectural compositions.
Garden Structures
Explore broader decorative illumination
for selected landscape elements
and exterior structures.
Commercial Landscapes
Maintain a consistent linear lighting
language across contemporary commercial
and hospitality outdoor environments.
Final fixture positioning, required illumination
levels and electrical configuration should
follow the individual project’s lighting design.
06 / PRODUCT QUESTIONS
Both models have a fixed 110-degree
beam angle.
The catalogue specifies a 10–15W power
range without assigning an individual
wattage to Code 2161 or Code 2162.
Code 2161 provides fixed white-light
options with 48 OSRAM LEDs. Code 2162
is listed as RGB / RGBW with 48 San-an LEDs.
Code 2161 is available in 3000K,
4000K and 6500K configurations.
The catalogue lists Code 2162 as RGB / RGBW.
Whether these represent separate versions
or a combined RGBW configuration should
be confirmed before ordering.
Both models are specified for
DC24V operation.
The technical drawing confirms an
overall length of 1000mm.
Both models have an IP65 protection rating.
Correct installation and protection
of electrical connections remain essential.
Yes. LEVIN lists a three-year warranty
for this product family.
EXPLORE LEVIN
Explore additional professional fixtures in the
LEVIN Garden Lighting Collection
for architectural landscapes and
contemporary exterior projects.
Learn more about LED technology through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning a professional exterior lighting project?
Contact LEVIN for assistance selecting the
appropriate Wide Beam Linear Landscape Light
configuration, light colour and installation
requirements.
| Light colour / CCT | 3000K, 4000K, 6500K |
|---|---|
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 110° |
| Finish | Grey |
