The Levin Curved Mount Landscape Spotlight is an IP65 outdoor fixture designed for architectural and landscape accent lighting. The range includes 3W, 6W and 9W models with fixed white-light and RGB configurations, multiple beam angle options and a distinctive curved mounting structure.
The Curved Mount Landscape Spotlight from Levin Germany is an IP65 outdoor fixture designed for landscape and architectural accent lighting. It combines a compact hooded spotlight head with a distinctive curved mounting structure, creating a different installation format from conventional flat-base or ground-spike landscape spotlights.
The family covers Codes 2174 to 2178 and includes 3W, 6W and 9W configurations. Fixed white-light and RGB versions are listed separately, with different LED chip and electrical specifications depending on the selected product code.

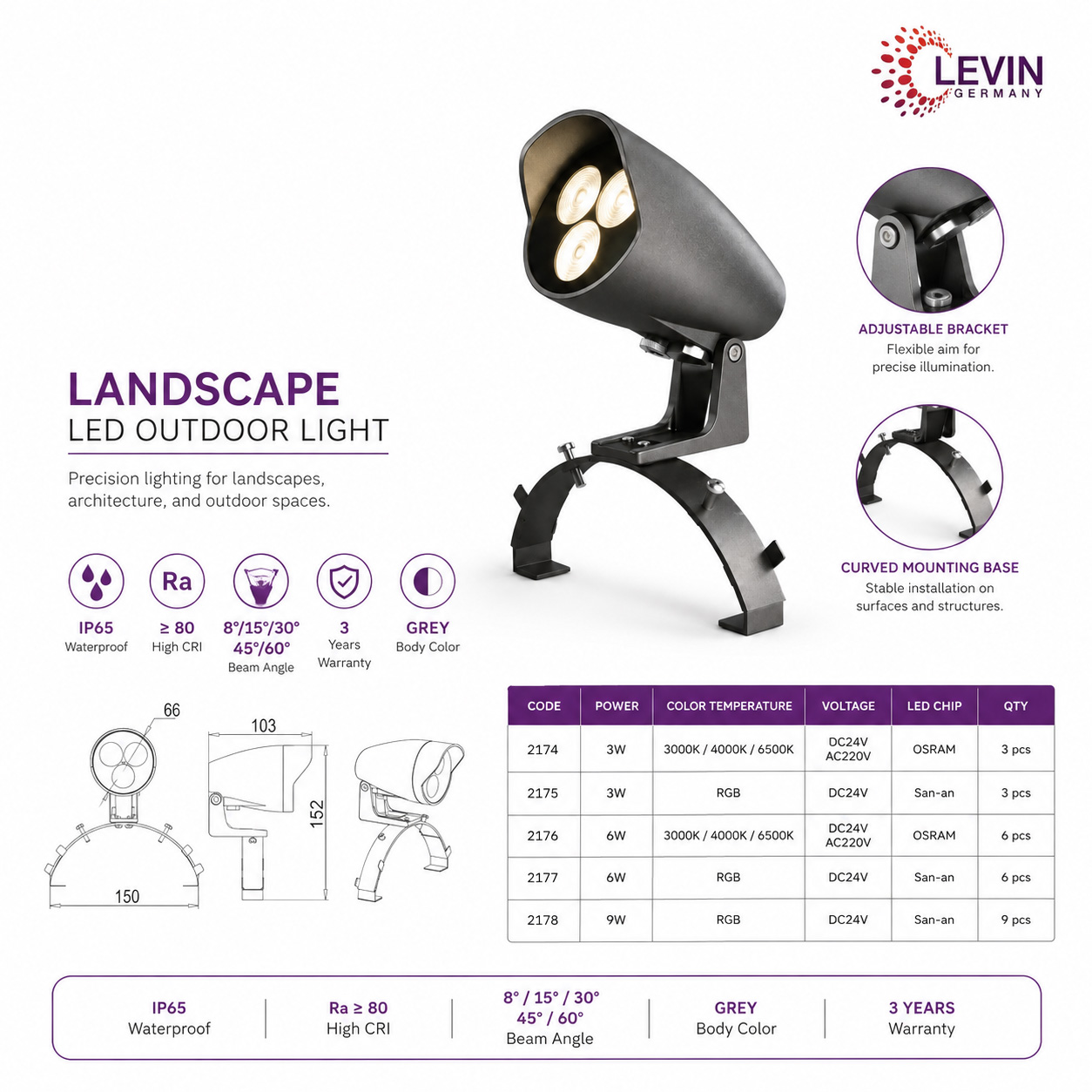

The fixture uses a curved support beneath the spotlight head. The technical drawing shows this mounting structure spanning approximately 150mm across its lower section, while the overall fixture height is listed as 152mm.
The catalogue does not state what specific surface or object this curved bracket is intended to attach to. Therefore, it should not be marketed specifically as a tree light, pole light or column-mounted fixture unless the manufacturer confirms that installation method.
The circular optical face sits inside an extended hooded housing with a diameter of Ø66mm and a housing length of 103mm.
The hood is a confirmed physical design feature. However, no glare-control value, shielding angle or anti-glare performance specification is supplied, so no numerical glare-reduction claim has been added.
The confirmed catalogue configuration is:
A 9W fixed white-light version is not shown in the supplied catalogue and should not be created as a product variation.
Codes 2174 and 2176 are listed with the following fixed white colour temperatures:
Codes 2175, 2177 and 2178 are listed as RGB versions.
The catalogue does not provide information about RGB controllers, DMX, remote control, mobile apps, Wi-Fi, Bluetooth or smart-home integration. None of these functions should be added without separate confirmation.
The technical table lists five beam angle options across the product family:
These values should be treated as optical beam options. The catalogue does not state that the beam width itself can be mechanically adjusted after installation.
Codes 2174 to 2178 are specified with an IP65 protection rating according to the supplied technical data.
The voltage configuration depends on whether the selected model is fixed white or RGB:
The catalogue does not clarify whether DC24V and AC220V for Codes 2174 and 2176 represent two separate electrical versions or simultaneous compatibility. They should therefore be displayed as listed voltage options rather than a universal dual-voltage specification.
The LED chip configuration is linked to the individual product code:
The fixed white-light versions therefore use OSRAM LEDs according to the catalogue, while the RGB versions are listed with San-an LEDs.
The technical specification table lists the complete family at:
The technical drawing also shows an approximately 150mm horizontal dimension across the curved mounting structure. Since this value is not included in the Dimension column, it is best treated as a drawing detail rather than a primary WooCommerce dimension attribute.
| Specification | 2174 | 2175 | 2176 | 2177 | 2178 |
|---|---|---|---|---|---|
| Brand | Levin Germany | Levin Germany | Levin Germany | Levin Germany | Levin Germany |
| Product Type | Landscape LED Outdoor Light | ||||
| Product Code | 2174 | 2175 | 2176 | 2177 | 2178 |
| Power | 3W | 3W | 6W | 6W | 9W |
| Light Colour | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB | RGB |
| Ra | ≥80 | ≥80* | ≥80 | ≥80* | ≥80* |
| IP Rating | IP65 | ||||
| Voltage | DC24V / AC220V** | DC24V | DC24V / AC220V** | DC24V | DC24V |
| Beam Angle | 8° / 15° / 30° / 45° / 60° | ||||
| LED Chip | OSRAM, 3pcs | San-an, 3pcs | OSRAM, 6pcs | San-an, 6pcs | San-an, 9pcs |
| Dimensions | Ø66 × 103 × 152mm | ||||
| Body Colour | Grey | ||||
| Warranty | 3 Years | ||||
*Ra ≥80 is displayed as a merged family specification. Model-specific CRI performance for RGB versions should be confirmed before using it as a strict RGB performance claim.
**The catalogue does not clarify whether DC24V and AC220V represent separate electrical versions or simultaneous compatibility.
The range includes 3W, 6W and 9W models. The 9W version shown in the catalogue is RGB only.
Codes 2174 and 2176 are listed in 3000K, 4000K and 6500K.
Yes. Codes 2175, 2177 and 2178 are listed as RGB models.
The catalogue lists 8°, 15°, 30°, 45° and 60° optical beam options.
All listed models carry an IP65 protection rating.
The technical table lists overall dimensions of Ø66 × 103 × 152mm.
The supplied catalogue specifies a 3-year warranty.
The Levin Curved Mount Landscape Spotlight combines a compact hooded optical head with a distinctive curved support and multiple white or RGB configurations for contemporary outdoor projects. Explore more Levin Germany lighting solutions for landscape and architectural applications.
For general information about LED lighting technology and energy-efficient lighting, visit the U.S. Department of Energy LED Lighting guide.
| Rated power | 3 W, 6 W, 9 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 15°, 30°, 45°, 60°, 8° |
| Finish | Grey |
