12W / 1000mm
The shortest configuration within the collection, combining a slim architectural body with a 12W rated LED specification for suitable landscape and pedestrian lighting concepts.
60 × 200 × 1000mm
12W LED
12W LED

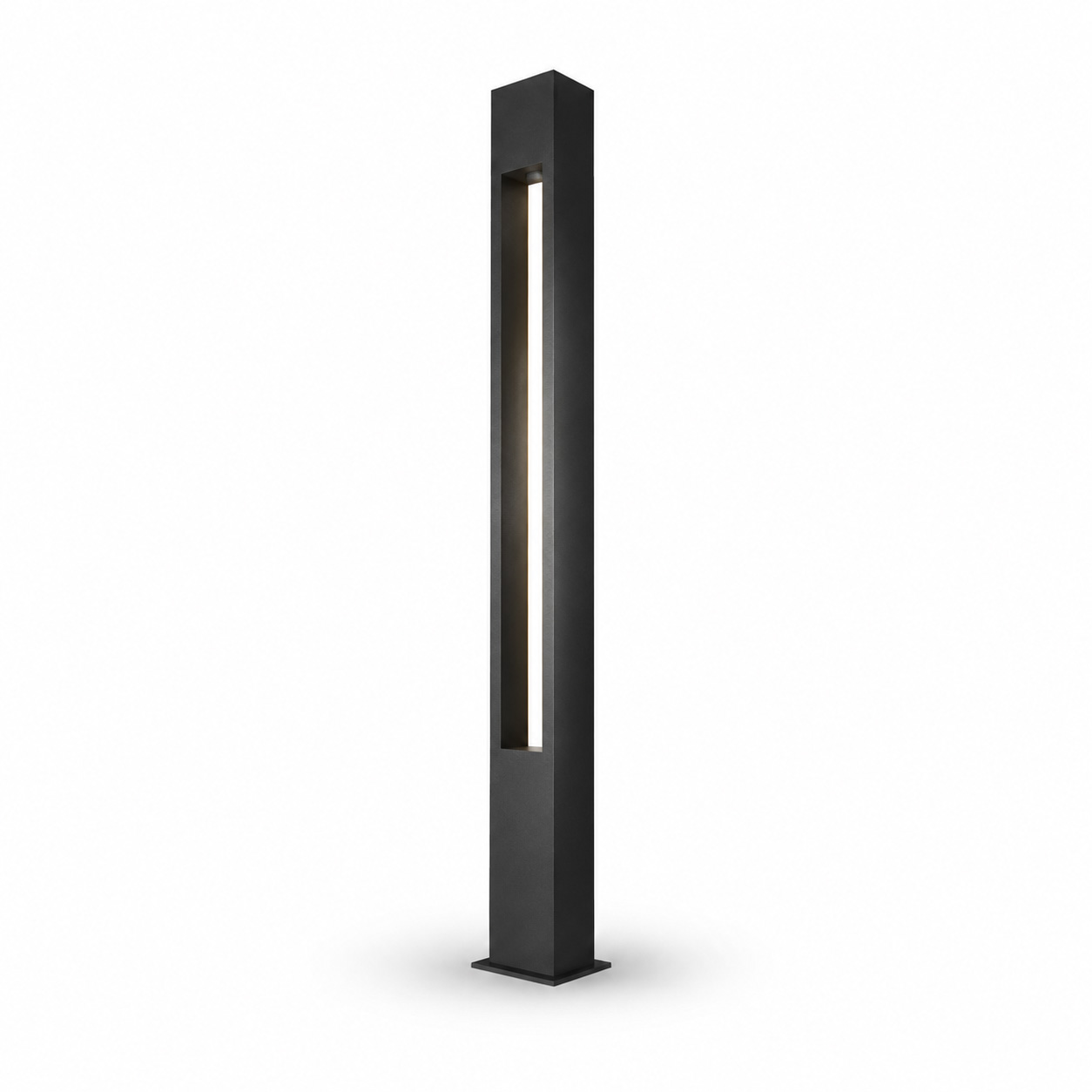

Define outdoor spaces with the LEVIN LED Bollard Light, a contemporary architectural luminaire combining a slim vertical profile with an integrated illuminated opening. Designed for professional exterior environments, this IP65-rated collection introduces a consistent lighting language across pathways, landscapes, residential developments and commercial outdoor projects.
Available in four power and height configurations ranging from 12W to 30W and 1000mm to 2500mm, the collection combines architectural aluminium construction with three white-light colour temperature options, CRI greater than 83 and AC100–265V operation.
Choose the appropriate LEVIN LED Bollard Light according to the required fixture height and rated power. All four models share the same architectural design, electrical specifications, protection rating and available housing finishes.
The shortest configuration within the collection, combining a slim architectural body with a 12W rated LED specification for suitable landscape and pedestrian lighting concepts.
An intermediate-height architectural configuration featuring an 18W rated power and a 1500mm vertical body for coordinated outdoor lighting arrangements.
A taller configuration that maintains the collection’s clean rectangular design while offering a 24W rated power and a 2000mm overall height.
The tallest and highest rated-power configuration within the family, designed for professional exterior lighting concepts requiring a more prominent architectural fixture.
The published configurations pair Code 2130 with 12W / 1000mm, Code 2131 with 18W / 1500mm, Code 2132 with 24W / 2000mm and Code 2133 with 30W / 2500mm. Other power and height combinations are not confirmed in the technical specifications.
The LEVIN LED Bollard Light features an elongated rectangular structure with an integrated illuminated section. Its contemporary profile gives the fixture a recognisable architectural appearance while maintaining a consistent design language across four different heights.
An elongated architectural silhouette designed to integrate visually into contemporary landscapes, pedestrian spaces and building approaches.
The illuminated opening forms part of the overall fixture design, combining the visible lighting element with its structural architectural profile.
The published aluminium construction is available in Matt Black, Matt White and Dark Grey finishes for coordination with different exterior material palettes.
With 12W, 18W, 24W and 30W configurations, the LED Bollard Light collection provides different rated-power options for professional outdoor lighting projects. Each model is listed with three fixed white-light colour temperatures and a colour rendering index greater than 83.
Four distinct rated-power options are available, each paired with a specific fixture height according to the published product specifications.
Select 3000K warm white, 4000K neutral white or 6000K cool white according to the required appearance of the surrounding landscape and architectural environment.
All four models have a published colour rendering index greater than 83, as specified in the LEVIN technical information.
A numerical beam angle, lumen output, photometric distribution and adjustable optical mechanism are not specified in the published technical data. Colour temperatures are listed product options and should not be interpreted as a confirmed tunable-white function.
Compare the four LEVIN LED Bollard Light configurations to select the appropriate rated power, overall height and colour temperature for your residential, commercial or architectural exterior lighting project.
| Specification | Code 2130 | Code 2131 | Code 2132 | Code 2133 |
|---|---|---|---|---|
| Product Type | LED Bollard Light | LED Bollard Light | LED Bollard Light | LED Bollard Light |
| Rated Power | 12W | 18W | 24W | 30W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | >83 | >83 | >83 | >83 |
| Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Input Voltage | AC100–265V | AC100–265V | AC100–265V | AC100–265V |
| Dimensions | 60 × 200 × 1000mm | 60 × 200 × 1500mm | 60 × 200 × 2000mm | 60 × 200 × 2500mm |
| Working Temperature | -15°C to +50°C | -15°C to +50°C | -15°C to +50°C | -15°C to +50°C |
| Body Material | Aluminium | Aluminium | Aluminium | Aluminium |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
The specifications above follow LEVIN’s published model assignments. Exact LED chip manufacturer, luminous flux, numerical beam angle, power factor and driver specifications are not provided in the available technical table.
The LEVIN LED Bollard Light collection maintains the same slim rectangular profile across all four product codes. Its vertical construction creates a recognisable architectural element that can be repeated throughout an outdoor project to establish a coordinated visual language.
Published dimensions are 60 × 200 × 1000mm, 60 × 200 × 1500mm, 60 × 200 × 2000mm and 60 × 200 × 2500mm. Each increase in height is associated with a corresponding rated-power configuration.
The aluminium construction is available in Matt Black, Matt White and Dark Grey finishes, providing options for different contemporary exterior material palettes.
AVAILABLE OVERALL HEIGHTS
1000 / 1500 / 2000 / 2500 mm
Shared profile dimensions: 60 × 200mm

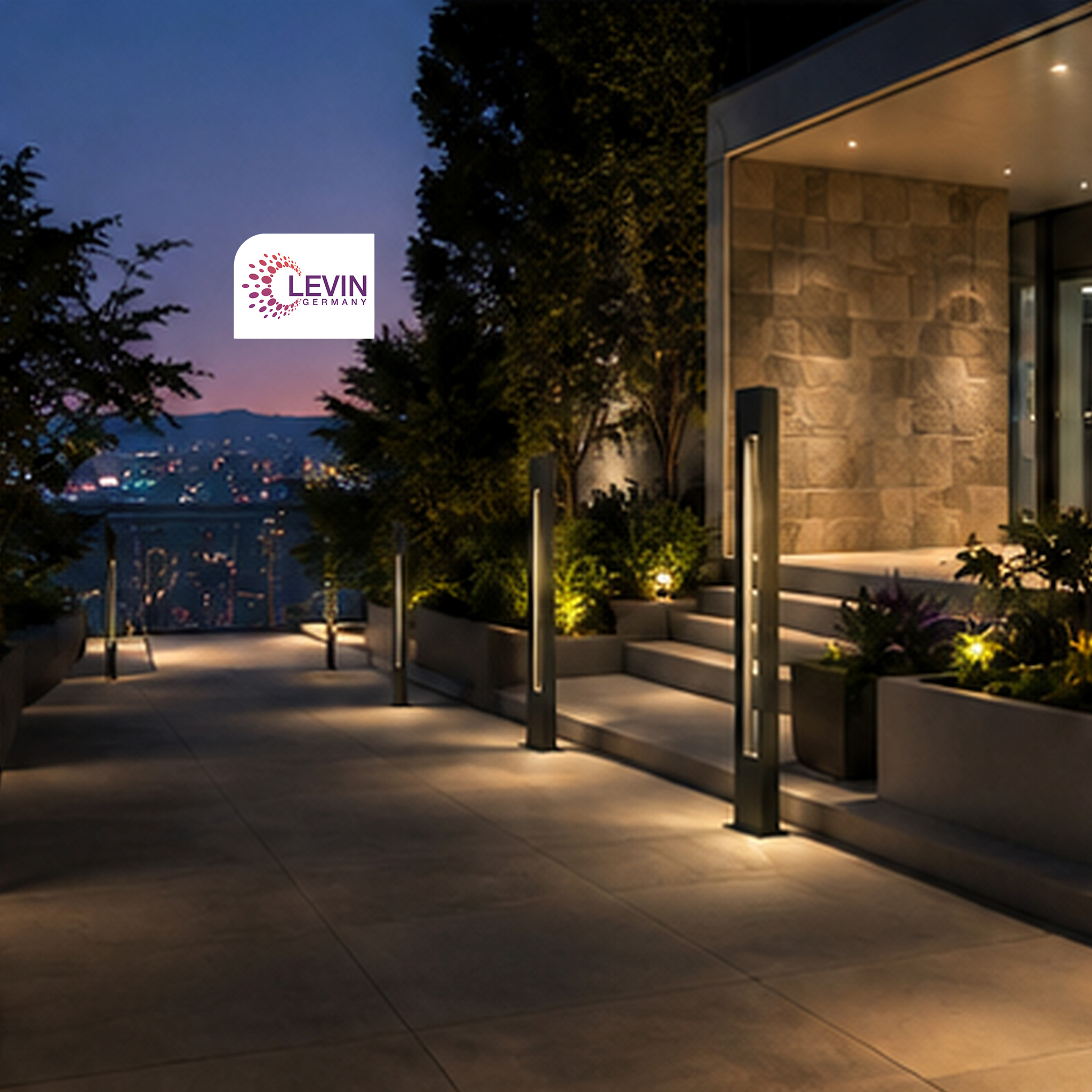

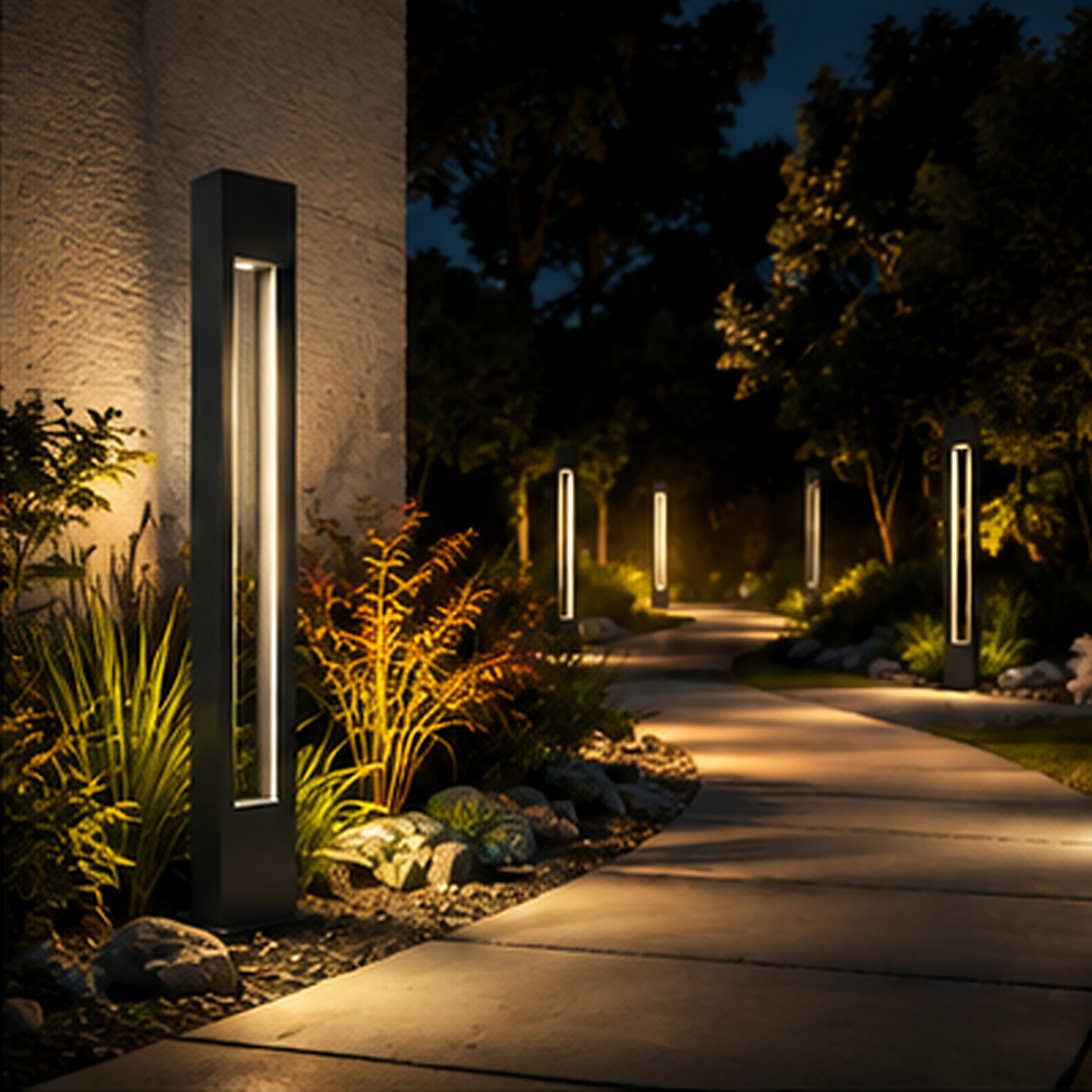

The combination of four fixture heights, a consistent vertical design and multiple power configurations makes this collection an option for professional landscape projects where illumination and architectural continuity are equally important.
Final fixture spacing, installation foundations, required lighting levels and electrical arrangements must be determined according to the individual project. Confirm photometric and mounting information before preparing final construction documents.
Four models are listed under Codes 2130, 2131, 2132 and 2133, with separate rated-power and height configurations.
The product family includes 12W, 18W, 24W and 30W configurations.
The published heights are 1000mm for Code 2130, 1500mm for Code 2131, 2000mm for Code 2132 and 2500mm for Code 2133.
All four models are listed with 3000K warm white, 4000K neutral white and 6000K cool white options.
The published technical specification lists CRI / Ra greater than 83 for all four models.

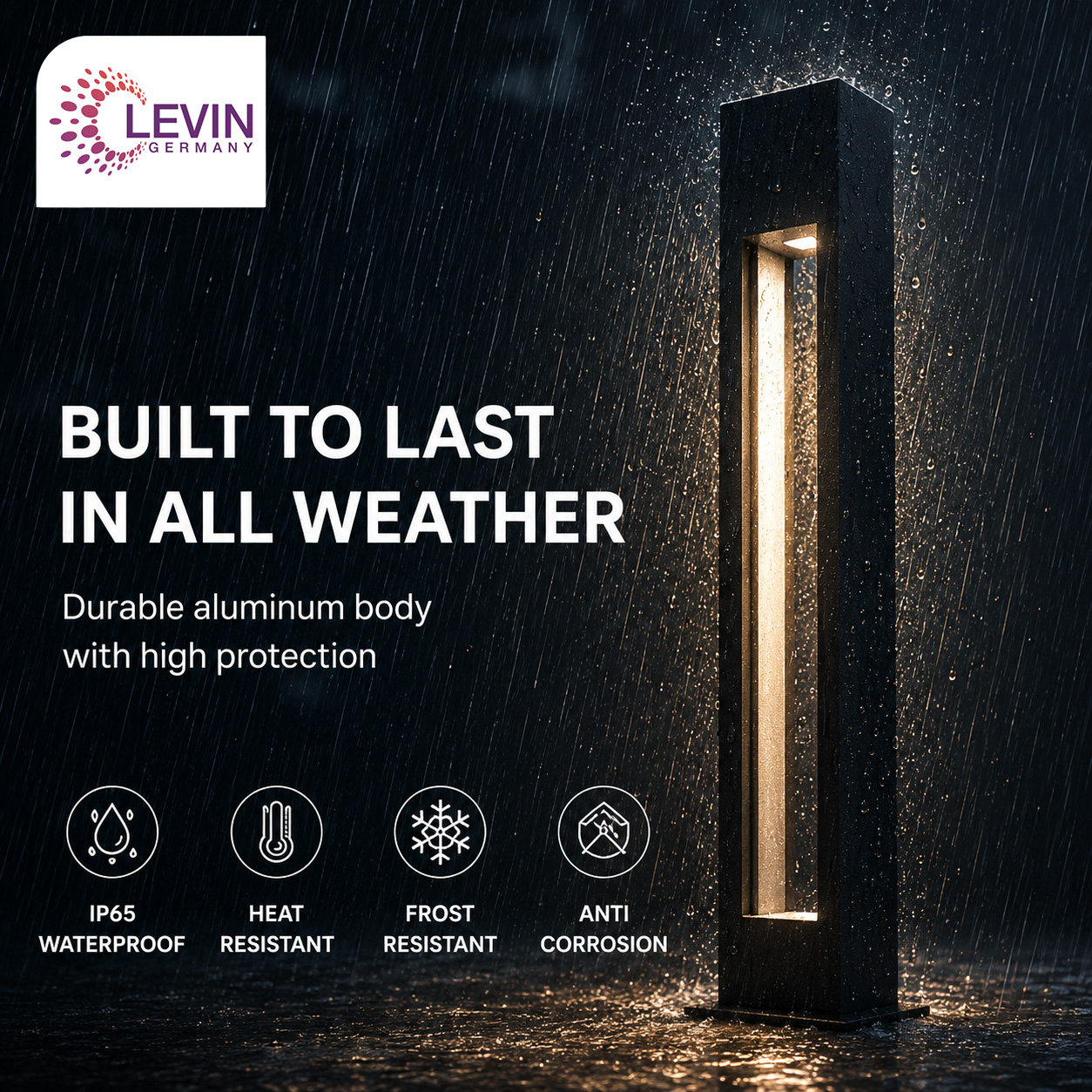

Yes. The collection has an IP65 protection rating. Installation suitability also depends on local site conditions and properly protected electrical connections.
The LED Bollard Light family supports AC100–265V operation.
The published body material is aluminium, with Matt Black, Matt White and Dark Grey finish options.
The published working temperature is -15°C to +50°C.
Yes. LEVIN specifies a three-year warranty across all four configurations.
Explore additional architectural outdoor lighting products in the LEVIN Landscape Lighting Collection for pathways, gardens and professional exterior lighting projects.
For general information about efficient LED technology, visit the U.S. Department of Energy LED Lighting Guide.
Planning a residential, hospitality or commercial exterior lighting project? Contact LEVIN for assistance selecting the appropriate LED Bollard Light height, power configuration, colour temperature and housing finish.
| Rated power | 12 W, 18 W, 24 W, 30 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6000K |
| IP rating | IP65 |
| CRI | > 83 |
| Finish | Black, Grey, White |
| Material | Aluminium |
| Input voltage | 265 V |
