Introduce a distinctive architectural element into contemporary outdoor environments with the LEVIN Open Frame Bollard Light. Combining a clean square profile with an open vertical structure and integrated upper illumination, this 12W LED fixture creates an elegant balance between geometric form, decorative light and contrasting shadows.
Available in 600mm and 800mm heights, the IP65-rated collection features a consistent 110 × 110mm square footprint, three white-light colour temperature options and AC100–240V operation. Its aluminium construction is available in Matt Black, Matt White and Dark Grey finishes for a variety of residential and commercial exterior projects.
Choose the appropriate LEVIN Open Frame Bollard Light according to the required fixture height and scale of the surrounding landscape. Both versions maintain the same rated power, square footprint, lighting specifications and available body finishes.
The shorter configuration combines a 600mm overall height with the characteristic open-frame design, creating a compact architectural lighting presence for contemporary gardens and exterior circulation areas.
A taller configuration offering a more prominent architectural silhouette while retaining the same geometric frame, integrated upper lighting section and 12W electrical specification.
The confirmed difference between Codes 2111 and 2112 is overall height. Code 2111 measures 600mm, while Code 2112 measures 800mm. Both versions share a 110 × 110mm footprint and 12W rated power.

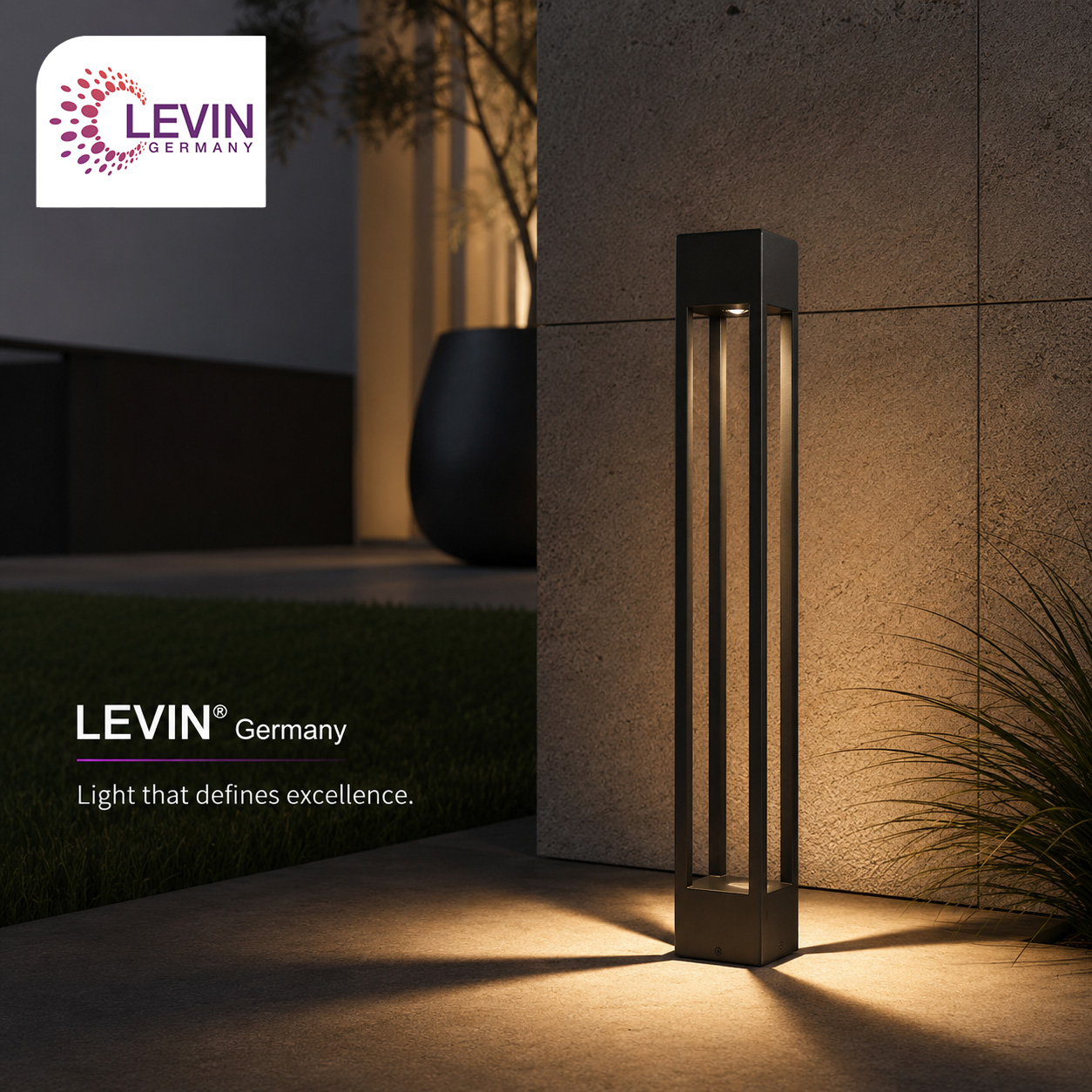

Unlike a conventional solid-body bollard, the LEVIN Open Frame Bollard Light incorporates long open vertical sections into its rectangular construction. This distinctive geometry creates a visually lighter architectural structure and allows the illuminated upper section to interact with the surrounding frame.
The elongated open sections introduce architectural depth while maintaining a clean square outline suitable for contemporary exterior environments.
The light source is incorporated into the upper part of the fixture, creating illuminated areas around the base while the frame contributes contrasting shadows.
The published technical specifications identify an aluminium body and a lens optical component, with three neutral exterior finish options.
The manufacturer identifies the optical component as a lens. Its specific material is not published, so glass, acrylic and polycarbonate have not been assumed.

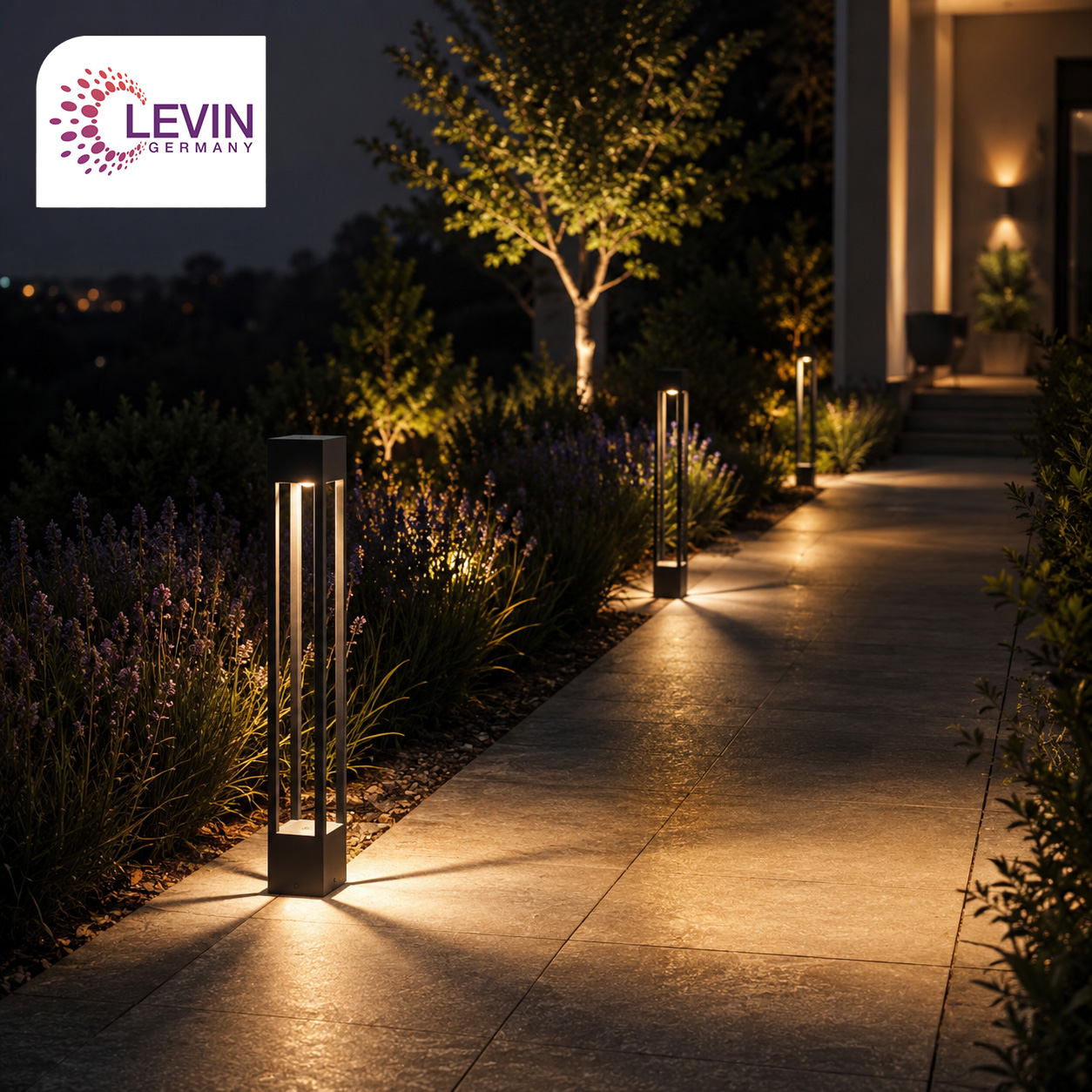

The fixture’s upper lighting arrangement creates illuminated areas around the base, while its geometric open frame introduces contrasting shadow patterns. This interaction gives the product a distinctive visual character in suitable architectural and landscape lighting concepts.
The integrated upper lighting section produces multiple illuminated zones around the bollard, creating a decorative relationship between the fixture, its surroundings and the ground surface.
Select 3000K warm white, 4000K neutral white or 6000K cool white according to the preferred atmosphere of the exterior project.
Both height configurations share a published colour rendering index of Ra ≥80, supporting general architectural white-light applications.
A numerical beam angle, luminous flux, luminous efficacy and LED chip manufacturer are not stated in the published specifications. The three colour temperatures represent available product options, not a confirmed tunable-white function.
Compare the two LEVIN Open Frame Bollard Light configurations to select the appropriate architectural height for your outdoor lighting project. Both models share the same rated power, electrical characteristics, protection rating and construction materials.
| Specification | Code 2111 | Code 2112 |
|---|---|---|
| Product Type | Open Frame LED Bollard | Open Frame LED Bollard |
| Rated Power | 12W | 12W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | ≥80 | ≥80 |
| Protection Rating | IP65 | IP65 |
| Input Voltage | AC100–240V | AC100–240V |
| Dimensions | 110 × 110 × 600mm | 110 × 110 × 800mm |
| Working Temperature | -15°C to +50°C | -15°C to +50°C |
| Body Material | Aluminium | Aluminium |
| Optical Component | Lens | Lens |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years |
The technical data does not include a numerical beam angle, confirmed lumen output, LED chip manufacturer, driver specification, power factor or operating frequency. Confirm these details with LEVIN if required for project calculations.

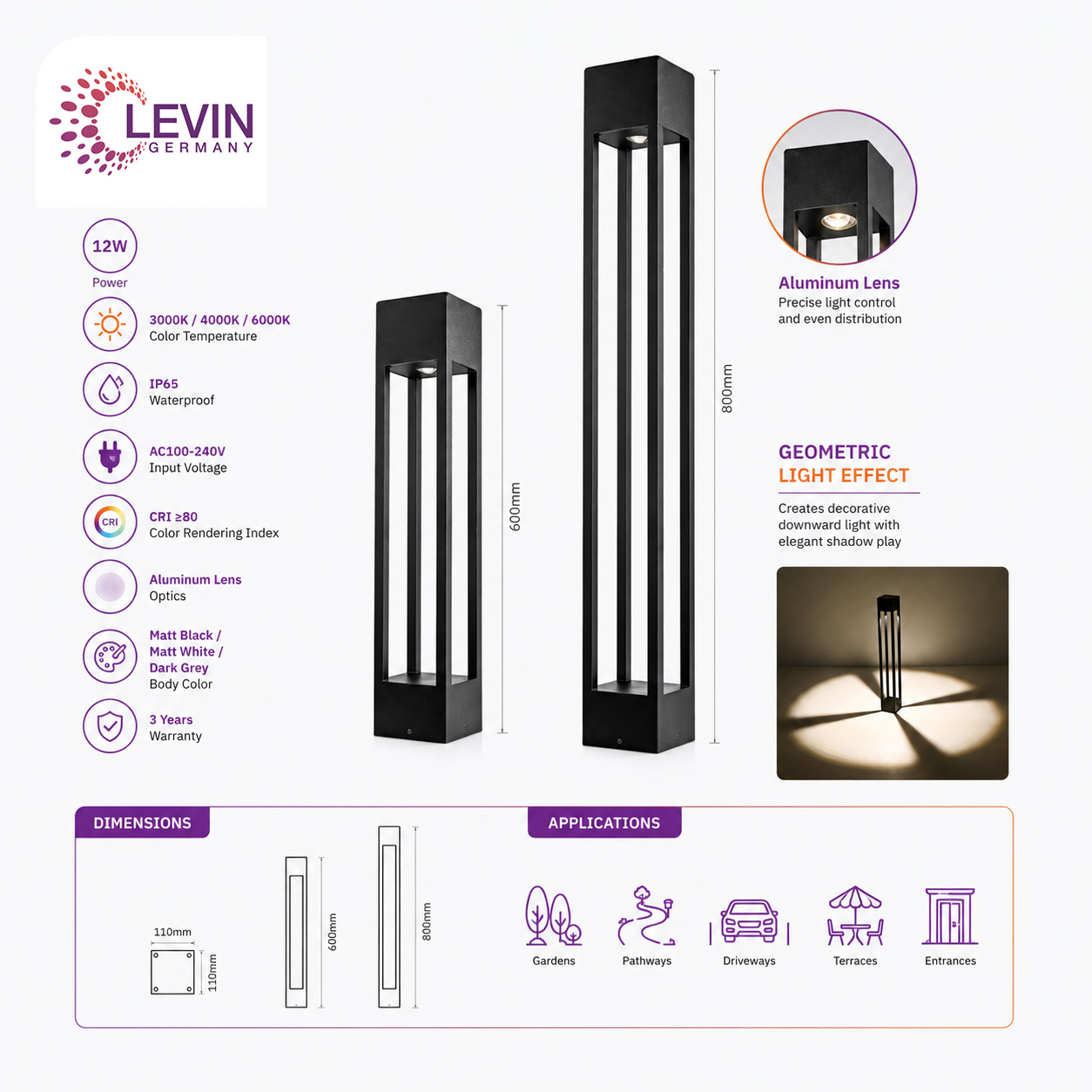

Both LEVIN Open Frame Bollard Light models maintain an identical 110 × 110mm footprint. The primary dimensional difference is their overall height, allowing a consistent architectural design to be repeated across outdoor spaces at different scales.
The 600mm version offers a more compact appearance, while the 800mm configuration introduces a taller structural element without changing the proportions of the square cross-section.
Matt Black, Matt White and Dark Grey finishes provide options for coordinating the aluminium body with contemporary exterior architecture and landscape materials.
AVAILABLE OVERALL HEIGHTS
600 / 800 mm
Code 2111 / Code 2112
The combination of open-frame geometry and integrated lighting makes this bollard an option for exterior projects where the visual character of the luminaire contributes to the surrounding landscape, even when the light is switched off.
Final fixture spacing, required illumination levels, mounting foundations and electrical installation should follow the individual project’s lighting design. IP65 protection does not remove the need for correctly protected electrical connections.
Both models have a 12W rated power and a 110 × 110mm square footprint. Code 2111 is 600mm high, while Code 2112 is 800mm high.
Its architectural body features long open vertical sections rather than a fully enclosed post, allowing the integrated upper illumination to interact with the geometric frame and surrounding surfaces.
Both configurations are available in 3000K warm white, 4000K neutral white and 6000K cool white.
Yes. Both models have an IP65 protection rating and are intended for appropriate exterior lighting installations when mounted and electrically connected correctly.
The published electrical specification is AC100–240V for both product codes.
The technical specifications identify an aluminium body and a lens optical component. The specific material of the lens is not stated.
The listed finishes are Matt Black, Matt White and Dark Grey.
Code 2111 measures 110 × 110 × 600mm, while Code 2112 measures 110 × 110 × 800mm.
The published working temperature range is -15°C to +50°C.
Yes. LEVIN specifies a three-year warranty for both models.
Discover additional outdoor fixtures in the LEVIN Landscape Lighting Collection for gardens, villa entrances, pedestrian routes and contemporary architectural projects.
For general information about LED lighting technology, explore the U.S. Department of Energy LED Lighting Guide.
Planning a residential, hospitality or commercial landscape project? Contact LEVIN for assistance selecting the appropriate Open Frame Bollard Light height, colour temperature and body finish for your exterior lighting concept.
| Rated power | 12 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6000K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Finish | Black, Grey, White |
| Material | Aluminium |
| Input voltage | 240 V |
