Bring a refined architectural lighting detail to contemporary outdoor spaces with the LEVIN Recessed Beam Bollard Light. Featuring a slim rectangular aluminium body and an integrated recessed lighting section, this 5W LED fixture directs illumination towards the surrounding ground while maintaining a clean and understated appearance.
Available in 500mm and 800mm heights, the IP65-rated collection combines concealed directional illumination with three white-light colour temperature options, AC100–240V operation and aluminium and tempered-glass construction. Both models share an 80 × 66mm body profile and a selection of neutral exterior finishes.
Select the appropriate Recessed Beam Bollard Light according to the installation height and scale of the surrounding landscape. Both versions share the same 5W rated power, recessed lighting design, electrical specifications and available housing finishes.
The shorter configuration features a compact 500mm vertical body with a recessed light opening, providing a discreet architectural presence for garden routes and selected outdoor circulation areas.
A taller version of the same rectangular design, providing a more prominent architectural element while maintaining the recessed directional lighting concept and shared 5W specification.
The confirmed dimensional difference between Codes 2117 and 2118 is overall height. Both models share an 80 × 66mm profile, 5W rated power and the same listed lighting characteristics.

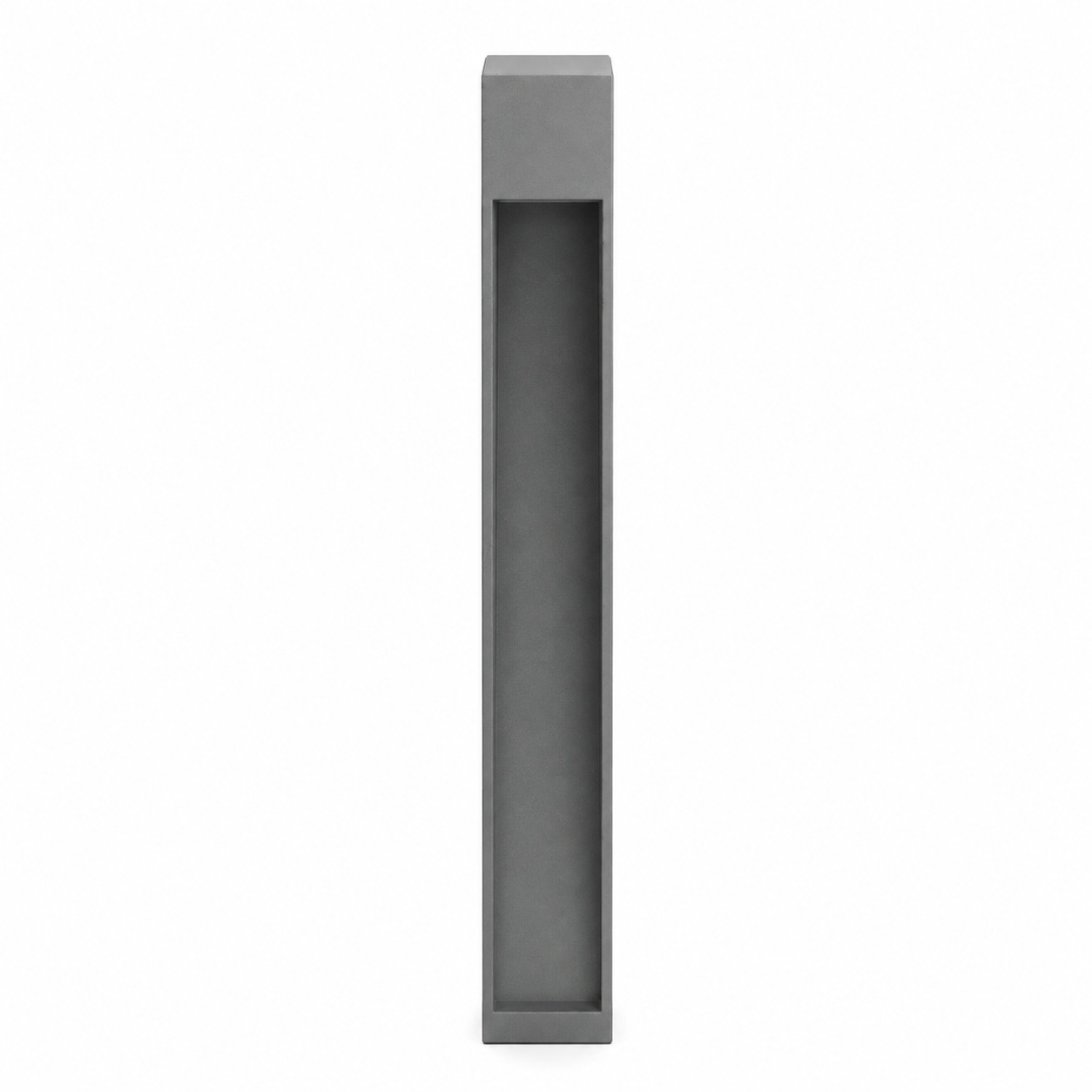

The LEVIN Recessed Beam Bollard Light combines a slim vertical construction with an integrated recessed optical section. Rather than using an externally mounted lighting head, the light opening becomes part of the architectural body itself, creating a restrained and contemporary visual identity.
The illuminated section is positioned inside the body profile, keeping the lighting element visually integrated into the overall architectural design.
The narrow rectangular profile maintains a consistent architectural appearance across both the 500mm and 800mm height configurations.
The published material specification combines aluminium and tempered glass, with Matt Black, Matt White and Dark Grey finish options for coordination with different exterior material palettes.
The recessed lighting section directs illumination downward and towards the adjacent ground surface. This approach allows the lighting component to remain visually integrated into the bollard while supporting suitable exterior pathway and landscape lighting concepts.
The concealed lighting opening supports directional illumination towards selected ground surfaces and adjacent outdoor circulation areas.
Select 3000K warm white, 4000K neutral white or 6000K cool white according to the intended appearance of the landscape and surrounding architectural materials.
Both configurations have a published colour rendering index of Ra ≥80, supporting general architectural white-light applications.
A numerical beam angle, luminous flux, luminous efficacy and adjustable optical mechanism are not specified in the published technical information. The colour temperatures represent available fixed white-light configurations, not a confirmed tunable-white function.
Compare the confirmed technical characteristics of LEVIN Recessed Beam Bollard Light Codes 2117 and 2118 to select the appropriate installation height for your architectural or landscape lighting project.

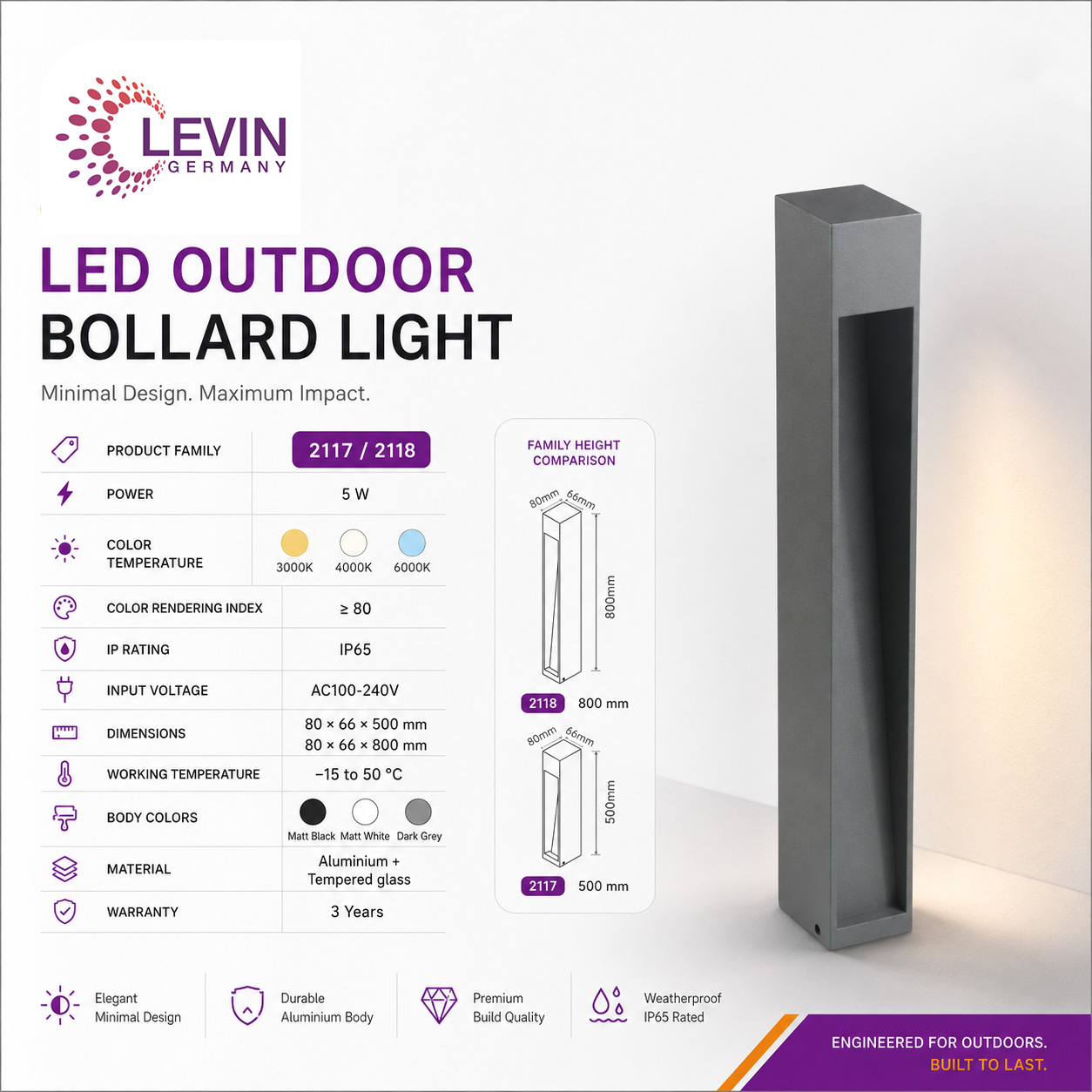

| Specification | Code 2117 | Code 2118 |
|---|---|---|
| Product Type | Recessed Beam LED Bollard | Recessed Beam LED Bollard |
| Rated Power | 5W | 5W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | ≥80 | ≥80 |
| Protection Rating | IP65 | IP65 |
| Input Voltage | AC100–240V | AC100–240V |
| Dimensions | 80 × 66 × 500mm | 80 × 66 × 800mm |
| Working Temperature | -15°C to +50°C | -15°C to +50°C |
| Materials | Aluminium / Tempered Glass | Aluminium / Tempered Glass |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years |
The specifications above follow LEVIN’s published model assignments. LED chip manufacturer, numerical beam angle, luminous flux, driver details and power factor are not supplied in the available technical information.
The LEVIN Recessed Beam Bollard Light maintains the same narrow rectangular body across both product codes. Its 80 × 66mm cross-section provides a consistent architectural appearance, while two overall heights allow the fixture to be selected according to the scale of the surrounding landscape.
Code 2117 measures 500mm in height, creating a lower and more discreet visual presence. Code 2118 extends the same design to 800mm for projects requiring a taller architectural lighting element.
The aluminium and tempered-glass construction is complemented by Matt Black, Matt White and Dark Grey exterior finish options.
AVAILABLE OVERALL HEIGHTS
500 / 800 mm
Code 2117 / Code 2118

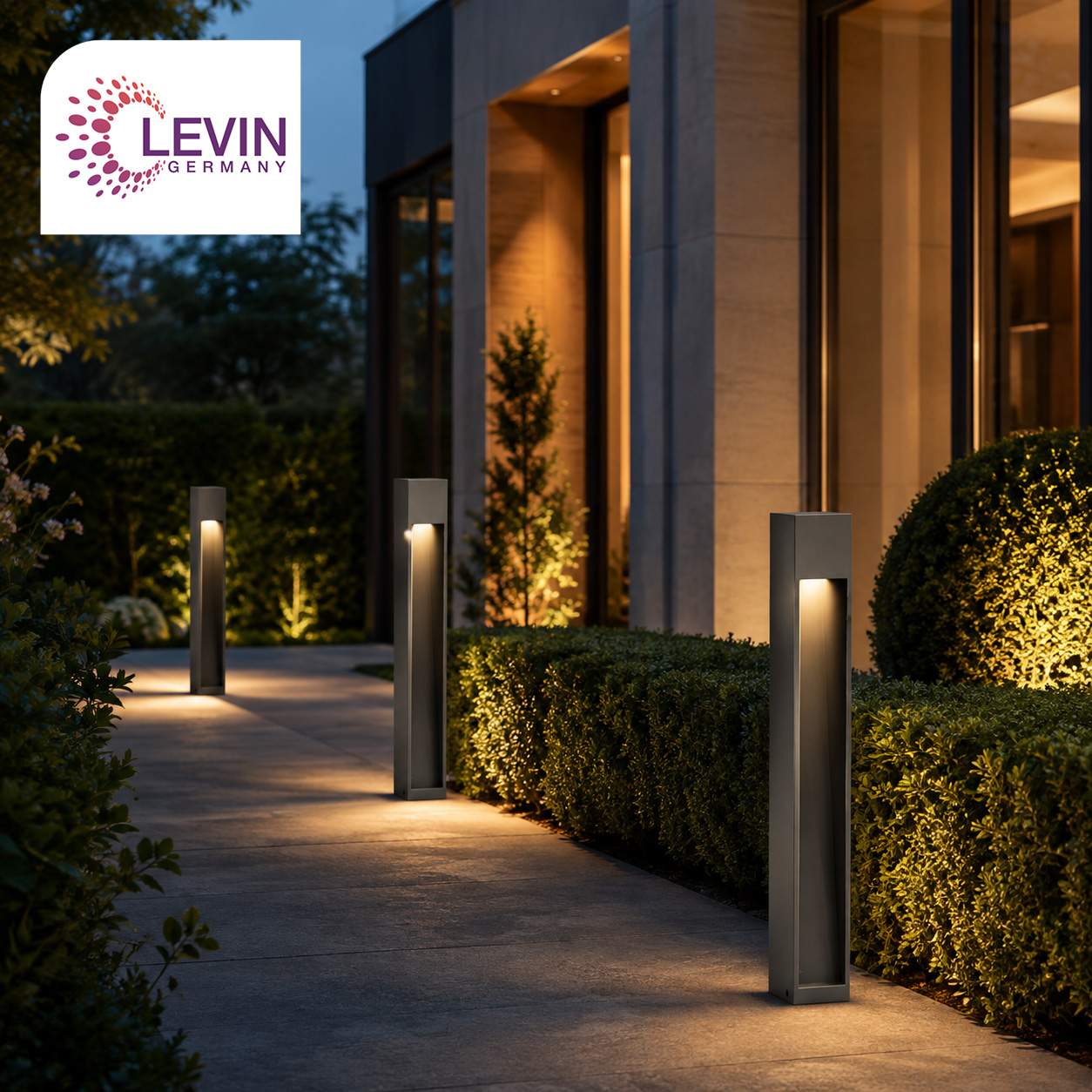

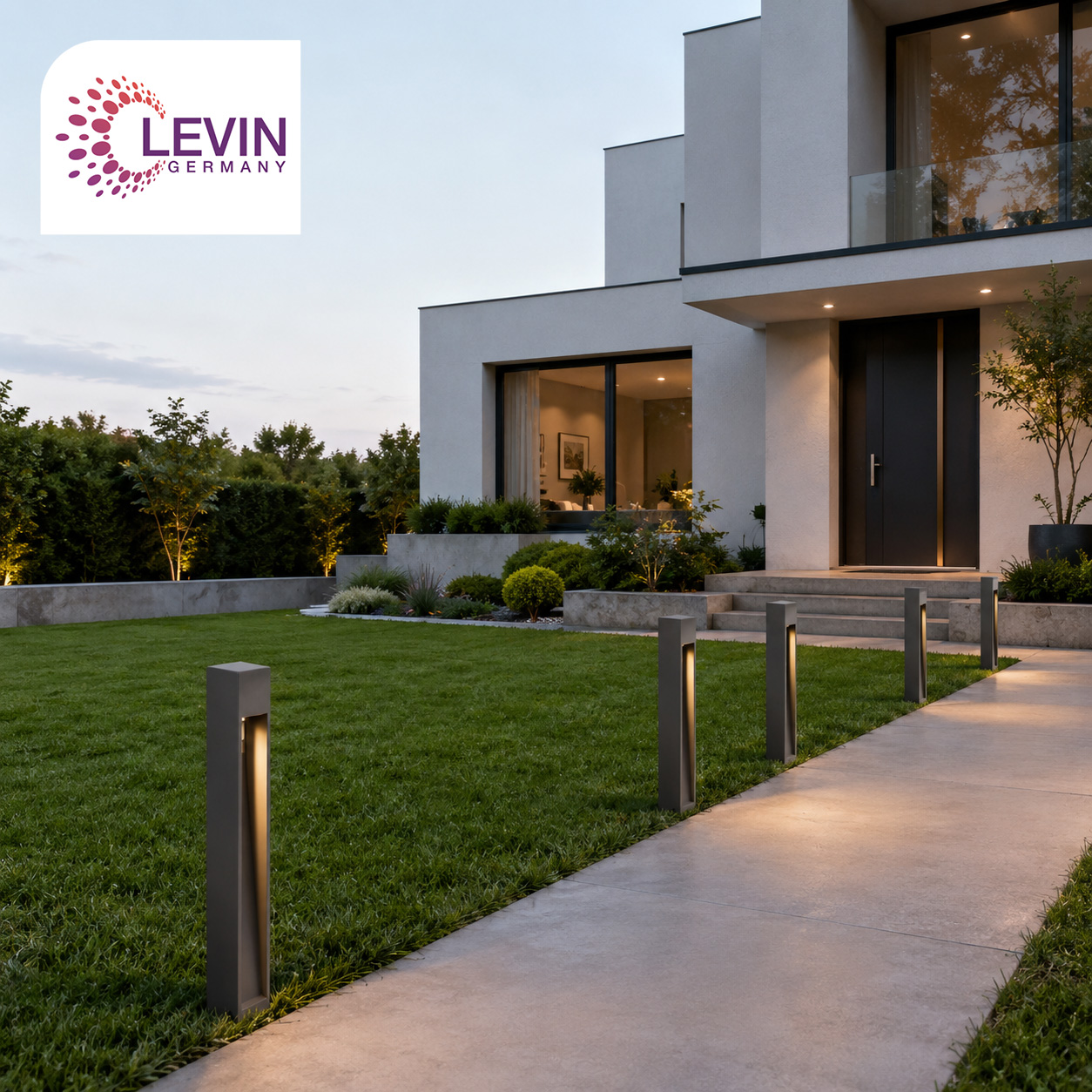

With its recessed lighting section and slim rectangular form, the LEVIN Recessed Beam Bollard Light is suited to architectural projects where discreet fixture design and directional ground illumination are important.
Final fixture spacing, required illumination levels, mounting foundations and electrical installation should follow the individual project’s lighting design. Correctly protected electrical connections remain essential for outdoor installation.
Both models share the same 5W rated power and 80 × 66mm rectangular body profile. Code 2117 is 500mm high, while Code 2118 is 800mm high.
Both configurations have a published rated LED power of 5W.
Its slim rectangular body incorporates a recessed lighting section that directs illumination towards the adjacent ground while keeping the light source visually integrated into the fixture.
The product family offers 3000K warm white, 4000K neutral white and 6000K cool white configurations.
Yes. Both models have an IP65 protection rating and are designed for appropriate outdoor installation when mounted and electrically connected correctly.
The published input voltage range is AC100–240V for both models.
The technical specification lists aluminium and tempered glass.
The listed finishes are Matt Black, Matt White and Dark Grey.
The published working temperature range is -15°C to +50°C.
Yes. Both configurations include a three-year LEVIN warranty.
Explore additional professional outdoor fixtures in the LEVIN Landscape Lighting Collection for pathways, gardens and contemporary exterior lighting projects.
For general information about LED lighting technology, explore the U.S. Department of Energy LED Lighting Guide.
Planning a residential, hospitality or commercial outdoor lighting project? Contact LEVIN for assistance selecting the appropriate Recessed Beam Bollard Light height, colour temperature and housing finish.
| Rated power | 5 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6000K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Finish | Black, Grey, White |
| Material | Aluminium, Glass |
| Input voltage | 240 V |
