600mm / Compact Bollard
The shortest configuration in the collection, combining a 150mm circular head with a slim 600mm vertical body for low-level architectural landscape lighting.
Ø150 × 600mm
5 × 2W
5 × 2W

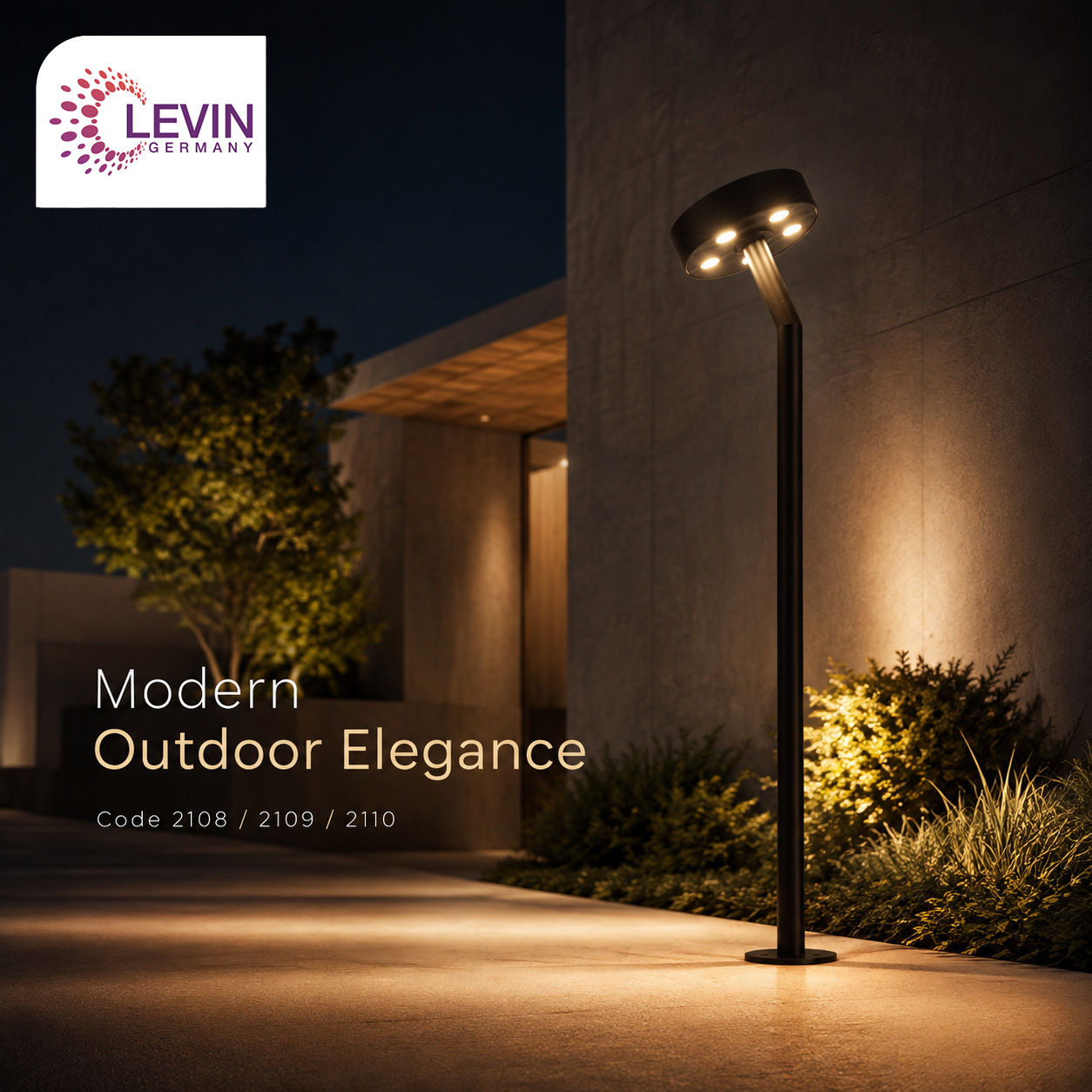

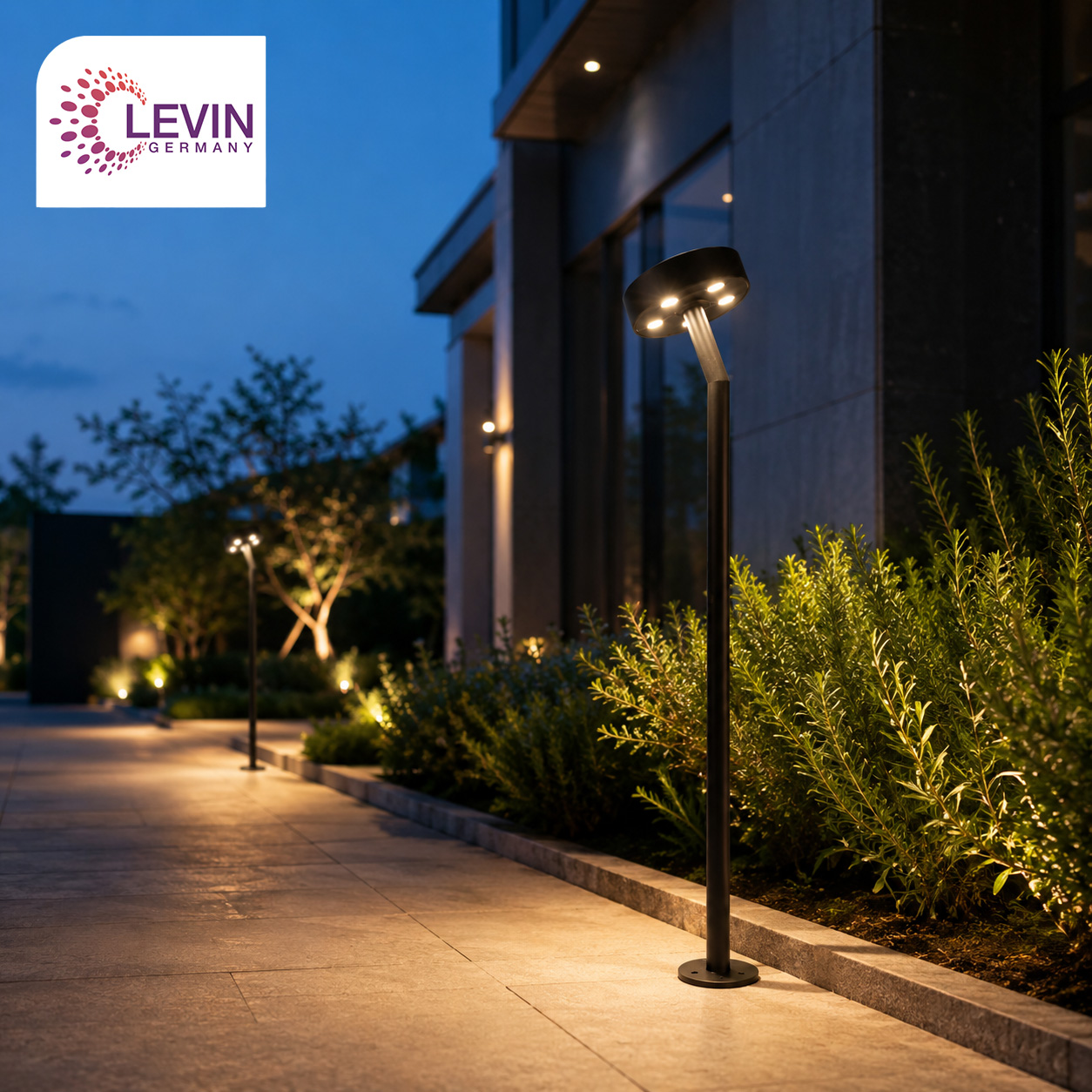

Give outdoor spaces a distinctive architectural character with the LEVIN Disc Head Bollard Light. Its slim vertical body and circular 150mm lighting head create an elegant silhouette, while five integrated light points beneath the disc introduce downward illumination for contemporary landscape environments.
Available in three heights with a consistent 5 × 2W LED configuration, this IP54-rated bollard combines architectural simplicity with three white-light colour temperature options, AC100–240V operation and a selection of neutral exterior finishes.
Select the appropriate Disc Head Bollard Light according to the required installation height and landscape scale. All three models share the same circular lighting head, electrical specification, rated LED arrangement and available body finishes.
The shortest configuration in the collection, combining a 150mm circular head with a slim 600mm vertical body for low-level architectural landscape lighting.
A balanced intermediate height offering a more prominent architectural presence while retaining the same restrained disc-head design.
The tallest configuration in the family, designed to maintain a consistent visual language across larger exterior landscape and pedestrian environments.
The listed 5 × 2W LED configuration is shared by all three product codes. Height is the confirmed dimensional distinction between Codes 2108, 2109 and 2110.

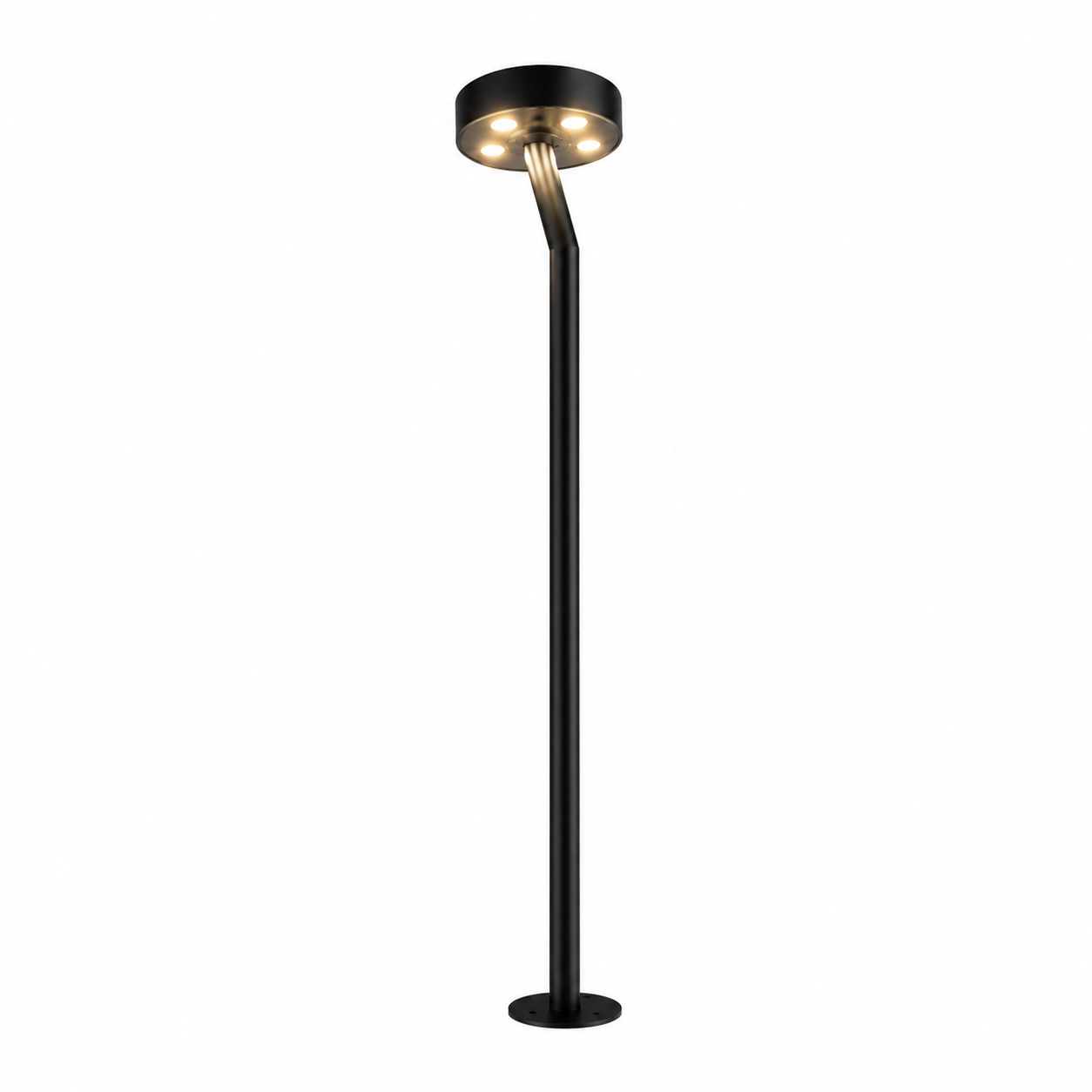

The defining characteristic of this bollard is its wide circular head positioned above a slender vertical post and a short angled upper connection. This composition gives the fixture a recognisable architectural form without introducing unnecessary visual complexity into the surrounding landscape.
A distinctive horizontal circular head creates the visual identity of the product and incorporates five visible lighting points on its underside.
A narrow vertical body creates a discreet architectural silhouette, with three available heights for coordinated exterior lighting arrangements.
The published material specification combines aluminium and tempered glass, with Matt Black, Matt White and Dark Grey exterior finish options.
The underside of the circular head incorporates five individual LED light points, directing illumination towards the ground surrounding the fixture. This makes the Disc Head Bollard Light a distinctive option for selected exterior pedestrian and landscape lighting concepts.
The catalogue specifies a 5 × 2W LED arrangement, visually integrated into the underside of the circular lighting head.
Choose between 3000K warm white, 4000K neutral white and 6000K cool white according to the desired atmosphere of the exterior project.
The published colour rendering index is Ra ≥80 across the three available height configurations.
The catalogue does not provide a numerical beam angle, photometric distribution, confirmed lumen output or LED chip manufacturer. No adjustable optical mechanism has been assumed.
Compare the three LEVIN Disc Head Bollard Light configurations to identify the appropriate fixture height for your outdoor architectural or landscape lighting project.
| Specification | Code 2108 | Code 2109 | Code 2110 |
|---|---|---|---|
| Product Type | Disc Head Bollard Light | Disc Head Bollard Light | Disc Head Bollard Light |
| Power | 5 × 2W | 5 × 2W | 5 × 2W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | ≥80 | ≥80 | ≥80 |
| Protection Rating | IP54 | IP54 | IP54 |
| Input Voltage | AC100–240V | AC100–240V | AC100–240V |
| Dimensions | Ø150 × 600mm | Ø150 × 900mm | Ø150 × 1200mm |
| Operating Temperature | -15°C to +50°C | -15°C to +50°C | -15°C to +50°C |
| Materials | Aluminium / Tempered Glass | Aluminium / Tempered Glass | Aluminium / Tempered Glass |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years | 3 Years |
The IP54 rating is retained exactly as specified by LEVIN. Detailed beam-angle data, luminous efficacy, driver specifications and power factor are not supplied in the published technical table.
The Disc Head Bollard Light maintains the same circular head design across all three configurations, allowing different fixture heights to be incorporated into an exterior lighting scheme without changing the overall visual language.
The 150mm diameter head is combined with a slender vertical body in three heights: 600mm, 900mm and 1200mm. Its clean geometry is complemented by aluminium and tempered-glass construction.
Available finishes include Matt Black, Matt White and Dark Grey, making it suitable for coordination with a variety of contemporary architectural material palettes.
AVAILABLE OVERALL HEIGHTS
600 / 900 / 1200 mm
Codes 2108 / 2109 / 2110
With its recognisable circular head and slender post, the LEVIN Disc Head Bollard Light is an option for exterior projects where both lighting functionality and the visual identity of the fixture contribute to the landscape composition.
Final installation suitability depends on site exposure, mounting conditions and properly protected electrical connections. IP54 should not be treated as equivalent to IP65 or IP67 protection.
All three models are listed with a 5 × 2W LED configuration, representing five individual 2W light points.
The main difference is overall height. Code 2108 measures 600mm, Code 2109 measures 900mm and Code 2110 measures 1200mm. All share a 150mm diameter head.
The fixture is available in 3000K warm white, 4000K neutral white and 6000K cool white configurations.
The Disc Head Bollard Light has a published IP54 protection rating. Installation should be appropriate to the environmental exposure and project conditions.
All three models are specified for AC100–240V operation.
Five lighting points are integrated into the underside of the circular head to provide downward illumination. A numerical beam angle is not supplied in the technical data.
The published specification lists aluminium and tempered glass.
The listed finishes are Matt Black, Matt White and Dark Grey.
The published operating temperature range is -15°C to +50°C.
Yes. LEVIN specifies a three-year warranty for Codes 2108, 2109 and 2110.
