CODE 2116
5W / Single Adjustable Head
A single-head configuration providing
directional illumination from one
adjustable 5W LED light head.
1 × 5W Head
AC100–240V
AC100–240V
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Bring flexibility to outdoor lighting with the
LEVIN Adjustable Bollard Light. Combining a slim
rectangular architectural post with repositionable
LED heads, this IP65-rated fixture allows light
to be directed towards selected landscape elements,
pathways and exterior architectural features.
Available in a single-head 5W version and a
dual-head 2 × 5W configuration, the series offers
three white-light colour temperatures, AC100–240V
operation and a consistent 600mm-high design.
Three neutral housing finishes make it suitable
for a variety of contemporary exterior concepts.
01 / MODEL SELECTION
Choose between one or two adjustable lighting heads
according to the required direction of illumination.
Both versions share the same physical dimensions,
electrical specification and available finishes.
CODE 2116
A single-head configuration providing
directional illumination from one
adjustable 5W LED light head.
CODE 2115
Two individual 5W adjustable heads
provide greater flexibility when directing
illumination towards separate areas.
The dual-head version has a total rated power of
10W (2 × 5W). The 5W single-head model and 10W
dual-head model are separate product configurations.
02 / LIGHTING PERFORMANCE
The adjustable light-head design allows illumination
to be repositioned according to the landscape
composition and installation requirements.
The dual-head version offers the additional
possibility of directing light towards two
different areas.
DIRECTIONAL LIGHTING
Repositionable light heads provide
directional flexibility for selected
outdoor surfaces and landscape features.
COLOUR TEMPERATURE
Select 3000K warm white, 4000K neutral
white or 6000K cool white according
to the desired lighting atmosphere.
COLOUR RENDERING
Both configurations have a published
colour rendering index of Ra ≥80.
The light heads are directionally adjustable.
A numerical beam angle, maximum rotation range
and tilt limit are not specified in the published
technical information.

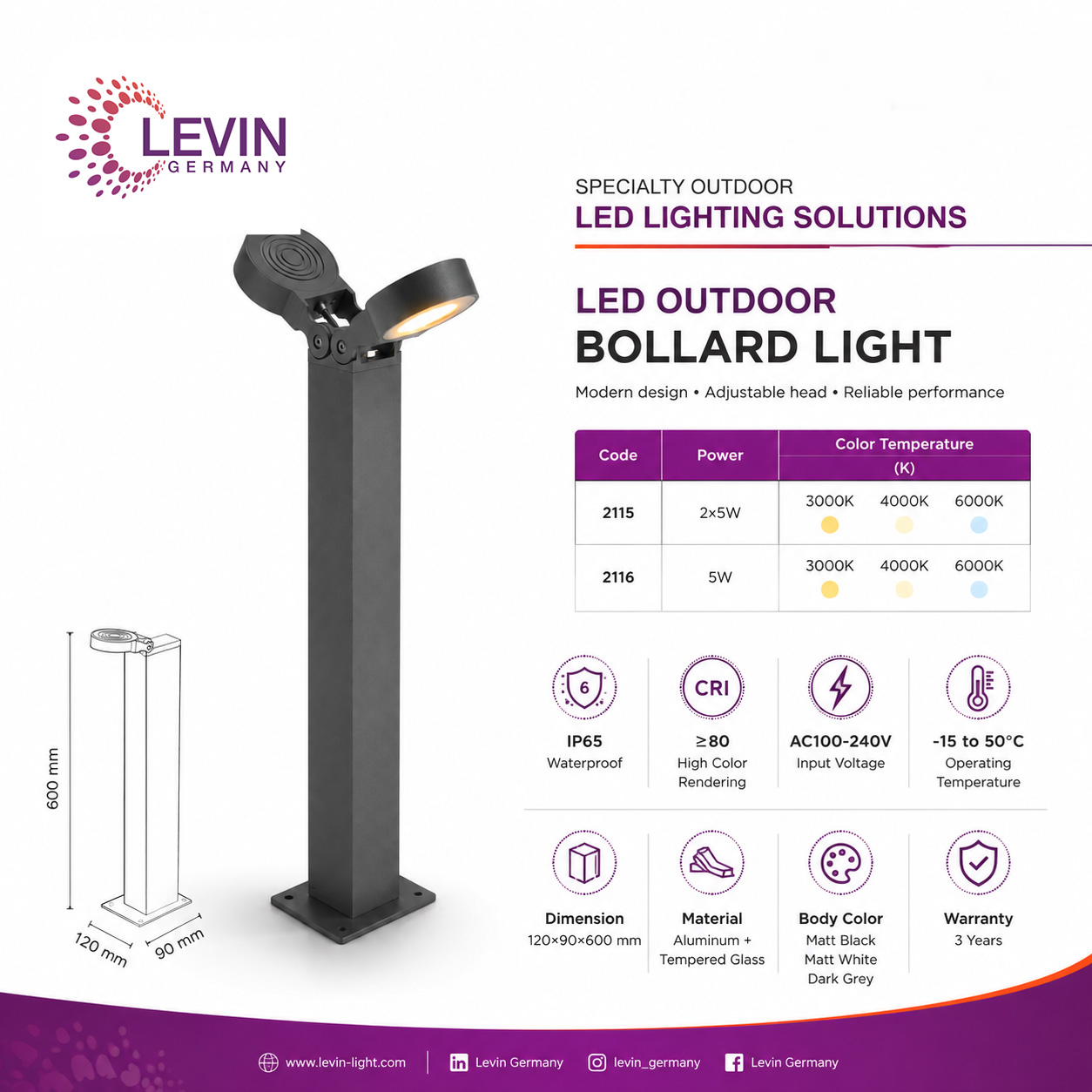

03 / TECHNICAL DATA
Compare the confirmed technical characteristics
of the two LEVIN Adjustable Bollard Light
configurations before selecting the appropriate
model for your exterior lighting project.
| Specification | Code 2115 | Code 2116 |
|---|---|---|
| Product Type | Dual-Head Bollard | Single-Head Bollard |
| Head Quantity | 2 Adjustable Heads | 1 Adjustable Head |
| Rated Power | 2 × 5W | 5W |
| Total Rated Power | 10W | 5W |
| Colour Temperature | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K |
| CRI / Ra | ≥80 | ≥80 |
| IP Rating | IP65 | IP65 |
| Input Voltage | AC100–240V | AC100–240V |
| Dimensions | 120 × 90 × 600mm | 120 × 90 × 600mm |
| Working Temperature | -15°C to +50°C | -15°C to +50°C |
| Materials | Aluminium / Tempered Glass | Aluminium / Tempered Glass |
| Body Finishes | Matt Black / Matt White / Dark Grey | Matt Black / Matt White / Dark Grey |
| Warranty | 3 Years | 3 Years |
Numerical beam angle, luminous flux, driver details
and maximum head-adjustment range are not specified
in the published product information. Confirm these
values if required for detailed lighting calculations.

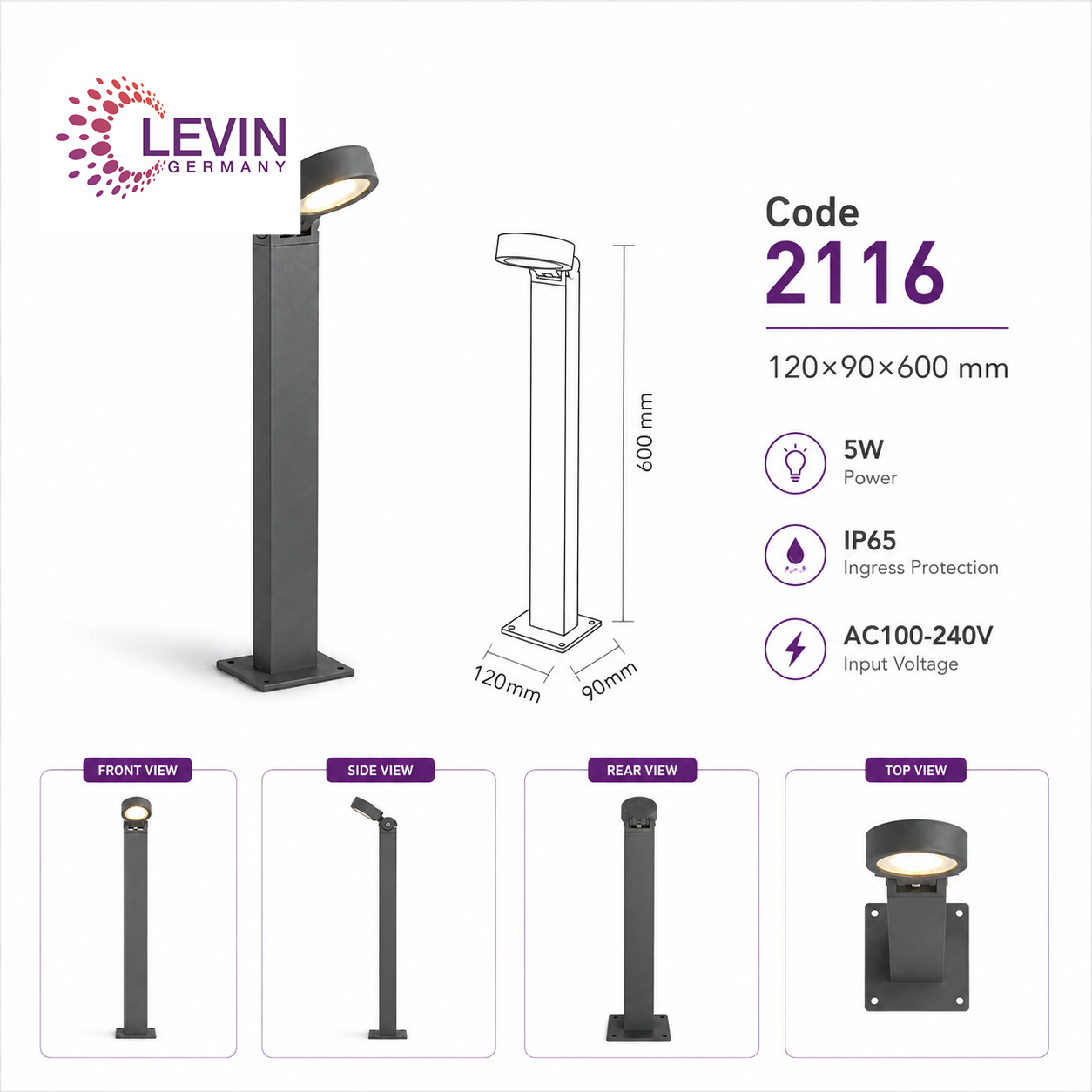

04 / DESIGN & DIMENSIONS
The Adjustable Bollard Light features a clean,
rectangular vertical post with one or two
adjustable lighting heads positioned
at its upper section.
Both versions share published overall dimensions
of 120 × 90 × 600mm. The restrained architectural
form allows the fixture to coordinate with
contemporary outdoor environments.
The aluminium and tempered-glass construction
is available in three finishes: matt black,
matt white and dark grey.
OVERALL HEIGHT
600 mm
COMPLETE DIMENSIONS
120 × 90 × 600 mm
Single-head and dual-head configurations
05 / APPLICATIONS
With adjustable directional heads and two
lighting configurations, the LEVIN Adjustable
Bollard Light is suited to exterior projects
where the position of the illumination matters
as much as the appearance of the fixture.
Garden Pathways
Direct illumination towards selected
pathway edges and landscaped circulation
areas.
Landscape Features
Highlight planting arrangements,
decorative garden elements and
selected outdoor focal points.
Architectural Exteriors
Integrate a slim contemporary bollard
into villa landscapes, building approaches
and suitable commercial exterior projects.
Final head positioning, fixture spacing,
illumination levels and installation details
should follow the requirements of the individual
project. IP65-rated electrical connections
must be installed correctly.
06 / PRODUCT QUESTIONS
Code 2115 has two adjustable 5W light heads,
providing 10W total rated power. Code 2116
features one adjustable 5W head.
Yes. The LED heads can be repositioned to
direct illumination towards selected outdoor
areas. An exact adjustment range is not
specified in the technical data.
Both models are available in 3000K warm white,
4000K neutral white and 6000K cool white.
Both versions have an IP65 protection rating
and are intended for appropriate outdoor
installations.
Codes 2115 and 2116 are specified for
AC100–240V operation.
The published material specification lists
aluminium and tempered glass.
The listed options are matt black,
matt white and dark grey.
Both models have published dimensions
of 120 × 90 × 600mm.
The listed working temperature is
-15°C to +50°C.
Yes. Both configurations include
a three-year LEVIN warranty.
EXPLORE LEVIN
Explore additional outdoor fixtures in the
LEVIN Garden Lighting Collection
for pathways, landscaped areas and
architectural exterior projects.
Learn more about LED lighting technology through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning an outdoor lighting project?
Contact LEVIN for assistance choosing between
the single-head and dual-head Adjustable Bollard
Light configurations, colour temperatures
and suitable installation arrangements.
