CODE 2155
3W / White Light
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
OSRAM / 3 LEDs
DC24V / AC220V*
DC24V / AC220V*
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Bring architectural details and landscape elements
into focus with the LEVIN Landscape LED Spotlight.
This compact IP65-rated lighting family combines
a discreet bracket-mounted design with multiple
power, light colour and optical configurations.
Available in six models with 3W, 3×3W and 6W
catalogue power specifications, the collection
includes fixed white-light and RGB versions,
seven listed beam angles and two housing sizes.
01 / MODEL SELECTION
Select the appropriate configuration according
to the required power, light colour and fixture
dimensions. Three models provide fixed white light,
while three separate product codes offer RGB lighting.
CODE 2155
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
CODE 2156
Compact RGB model for decorative
exterior accent-lighting concepts.
CODE 2157
White-light configuration with
3000K, 4000K and 6500K options.

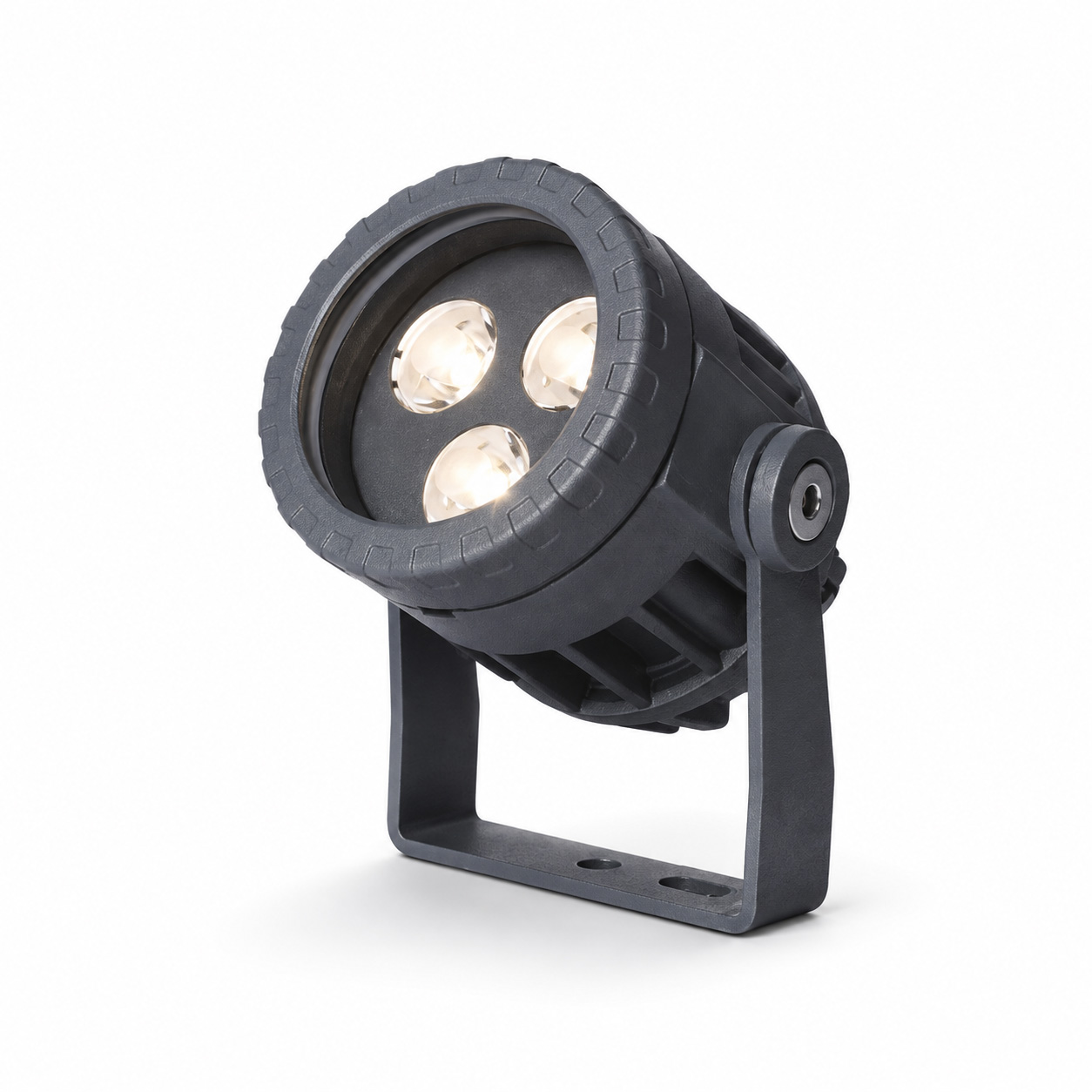

CODE 2158
RGB configuration within the
three-LED housing group.
CODE 2159
Six-LED white-light model available
in 3000K, 4000K and 6500K.
CODE 2160
Six-LED RGB configuration for coloured
landscape and architectural accents.
*DC24V and AC220V are listed for the white-light
models. Confirm the exact electrical version
before ordering. The catalogue notation 3×3W
is preserved without interpreting it as a
confirmed total input wattage.
02 / OPTICAL PERFORMANCE
From highly concentrated accent lighting to
wider optical distributions, the LEVIN Landscape
LED Spotlight family offers seven listed beam-angle
configurations for different outdoor lighting concepts.
Available angles: 3°, 5°, 8°, 15°, 30°, 45° and 60°.
These are optical configuration options, not
a mechanically adjustable beam. Confirm availability
for the selected product code.
03 / TECHNICAL DATA
Compare all six LEVIN Landscape LED Spotlight
models to identify the required power,
LED configuration, electrical specification
and housing dimensions.
| Specification | 2155 | 2156 | 2157 | 2158 | 2159 | 2160 |
|---|---|---|---|---|---|---|
| Power | 3W | 3W | 3×3W | 3×3W | 6W | 6W |
| Light Colour | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB |
| LED Chip | OSRAM | San-an | OSRAM | San-an | OSRAM | San-an |
| LED Quantity | 3 pcs | 3 pcs | 3 pcs | 3 pcs | 6 pcs | 6 pcs |
| Input Voltage | DC24V / AC220V* | DC24V | DC24V / AC220V* | DC24V | DC24V / AC220V* | DC24V |
| IP Rating | IP65 | |||||
| CRI / Ra | ≥80 | |||||
| Beam Angle Options | 3° / 5° / 8° / 15° / 30° / 45° / 60° | |||||
| Dimensions | 80 × 97 × 71 mm / Ø66 mm | Ø66 × 80 × 93 mm | ||||
| Body Colour | Grey | |||||
| Warranty | 3 Years | |||||
*Voltage options for white-light models require
confirmation. DC24V and AC220V should not be
interpreted as simultaneous dual-voltage
compatibility without the relevant SKU information.
04 / DESIGN & DIMENSIONS
The LEVIN Landscape LED Spotlight features
a circular optical head integrated into a
bracket-mounted housing, offering a visually
compact solution for outdoor accent lighting.
Codes 2155, 2156, 2157 and 2158 share the
first dimensional configuration, while
Codes 2159 and 2160 use a second housing size.
All six models are listed with a grey
exterior finish.
CODES 2155–2158
Ø66 mm
FIRST HOUSING CONFIGURATION
80 × 97 × 71 mm
Codes 2159 / 2160: Ø66 × 80 × 93 mm
05 / APPLICATIONS
With white-light and RGB configurations
and seven listed beam options, this spotlight
family supports different architectural
and landscape accent-lighting concepts.
Garden Features
Highlight selected planting compositions,
decorative landscape elements and
garden focal points.
Residential Landscapes
Introduce controlled decorative lighting
into contemporary villas, courtyards
and exterior environments.
Architectural Accents
Select suitable optical configurations
for highlighting exterior details
and architectural features.
Fixture positioning, optical selection and
electrical configuration should be determined
according to individual project requirements.
06 / PRODUCT QUESTIONS
Six product codes are listed:
2155, 2156, 2157, 2158, 2159 and 2160.
The catalogue lists 3W, 3×3W and 6W.
The 3×3W notation has been retained
exactly as published.
Yes. Codes 2156, 2158 and 2160
are listed as RGB configurations.
Codes 2155, 2157 and 2159 offer
3000K, 4000K and 6500K options.
The listed optical configurations include
3°, 5°, 8°, 15°, 30°, 45° and 60°.
White-light models list DC24V and
AC220V options. RGB models are listed
with DC24V.
No. Codes 2155–2158 use the
80 × 97 × 71mm / Ø66mm configuration,
while Codes 2159–2160 are listed
as Ø66 × 80 × 93mm.
All listed models have an IP65 protection
rating. Installation must also account
for site conditions and correctly
protected electrical connections.
LEVIN lists a three-year warranty
for this product family.
EXPLORE LEVIN
Explore additional fixtures in the
LEVIN Garden Lighting Collection
for residential landscapes and
professional exterior lighting projects.
Learn more about LED lighting through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning an outdoor architectural project?
Contact LEVIN for assistance selecting the
appropriate Landscape LED Spotlight model,
beam angle, voltage and light colour.
| Rated power | 3 W, 6 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 15°, 3°, 30°, 45°, 5°, 60°, 8° |
| Finish | Grey |
