CODE 2163
18W / White Light
Fixed white-light configuration available
in 3000K, 4000K and 6500K with eighteen
OSRAM LED chips.
18 OSRAM LEDs
DC24V
DC24V
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Create a refined lighting experience with the LEVIN
Recessed Linear Landscape Light. Designed with an
elongated rectangular housing and a discreet optical
opening, this IP65-rated fixture brings linear
illumination into contemporary architectural
and landscape environments.
The collection includes six configurations with
18W, 24W and 36W power options, fixed white-light
and RGB versions, five optical beam angles and
DC24V operation. Its recessed-profile construction
provides a distinctive alternative to conventional
surface-mounted landscape fixtures.
01 / MODEL SELECTION
Select the appropriate Recessed Linear Landscape
Light according to the required power and light
colour. Each power level is available in a separate
fixed white-light or RGB configuration.
CODE 2163
Fixed white-light configuration available
in 3000K, 4000K and 6500K with eighteen
OSRAM LED chips.
CODE 2164
An RGB lighting configuration equipped
with eighteen San-an LED chips for
coloured architectural accents.
CODE 2165
A 24W fixed white-light configuration
with twenty-four OSRAM LEDs and
three colour temperature options.
CODE 2166
The 24W RGB configuration features
twenty-four San-an LED chips for
decorative exterior lighting concepts.
CODE 2167
The highest rated-power fixed white-light
model in this family, featuring thirty-six
OSRAM LED chips.
CODE 2168
A 36W RGB configuration equipped with
thirty-six San-an LED chips for
coloured architectural lighting.
White-light models are available in 3000K, 4000K
and 6500K configurations. RGB versions are supplied
under separate product codes. All six models
are specified for DC24V operation.
02 / ARCHITECTURAL DESIGN
The recessed-profile design makes this fixture
visually different from a conventional linear
spotlight mounted on an external bracket.
Its elongated rectangular construction introduces
a clean architectural appearance for contemporary
exterior lighting projects.
INSTALLATION CONCEPT
A slim recessed-style housing designed
for integration into suitable
architectural installations.
LIGHTING OPTIONS
Three fixed white-light models and
three RGB configurations offer
different lighting possibilities.
ELECTRICAL SYSTEM
All six configurations share a
published DC24V electrical
specification.
03 / OPTICAL PERFORMANCE
The Recessed Linear Landscape Light family offers
five optical distributions, supporting a variety
of architectural and landscape accent-lighting
concepts, from narrow highlights to wider
beam arrangements.
These values represent available optical configurations,
not a mechanically adjustable beam. Confirm the
required beam-angle availability for the selected
product code before ordering.

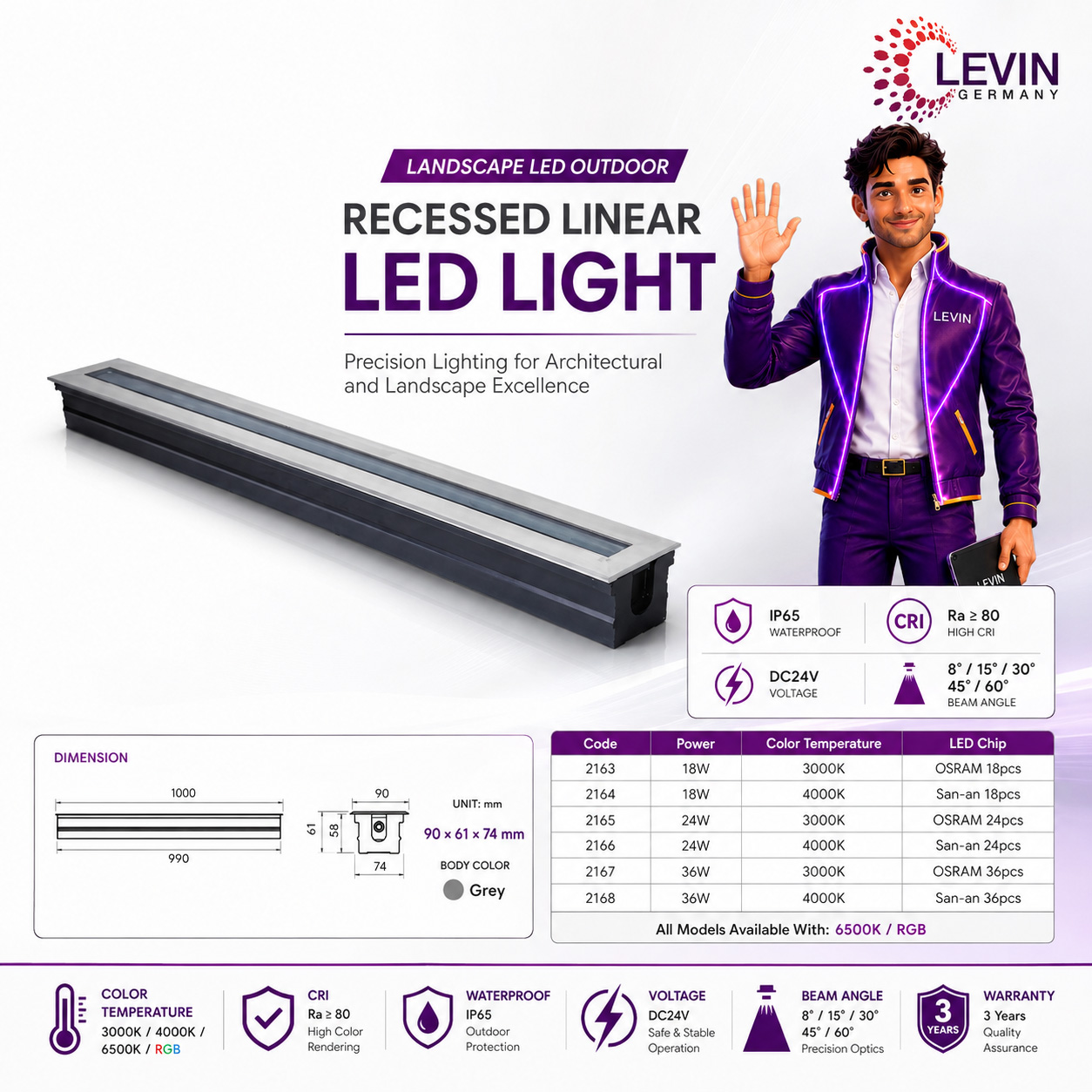

04 / TECHNICAL DATA
Compare the six LEVIN Recessed Linear Landscape
Light models to select the required power,
light colour and LED configuration for
your architectural outdoor project.
| Specification | 2163 | 2164 | 2165 | 2166 | 2167 | 2168 |
|---|---|---|---|---|---|---|
| Rated Power | 18W | 18W | 24W | 24W | 36W | 36W |
| Light Colour | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB |
| LED Chip | OSRAM | San-an | OSRAM | San-an | OSRAM | San-an |
| LED Quantity | 18 pcs | 18 pcs | 24 pcs | 24 pcs | 36 pcs | 36 pcs |
| Input Voltage | DC24V | |||||
| Protection Rating | IP65 | |||||
| CRI / Ra | ≥80 (Family Listing)* | |||||
| Beam Angle Options | 8° / 15° / 30° / 45° / 60° | |||||
| Technical Table Dimensions | 90 × 61 × 74 mm** | |||||
| Linear Drawing Dimensions | 1000mm / 990mm** | |||||
| Body Colour | Grey | |||||
| Warranty | 3 Years | |||||
*Ra ≥80 is displayed as a family-level specification.
Confirm model-specific RGB colour rendering where
required for the project.
**The catalogue lists 90 × 61 × 74mm in the technical
table and separately illustrates 1000mm and 990mm
linear measurements. These values describe different
dimensional references and should not be combined
into a newly inferred overall product dimension.
05 / DESIGN & DIMENSIONS

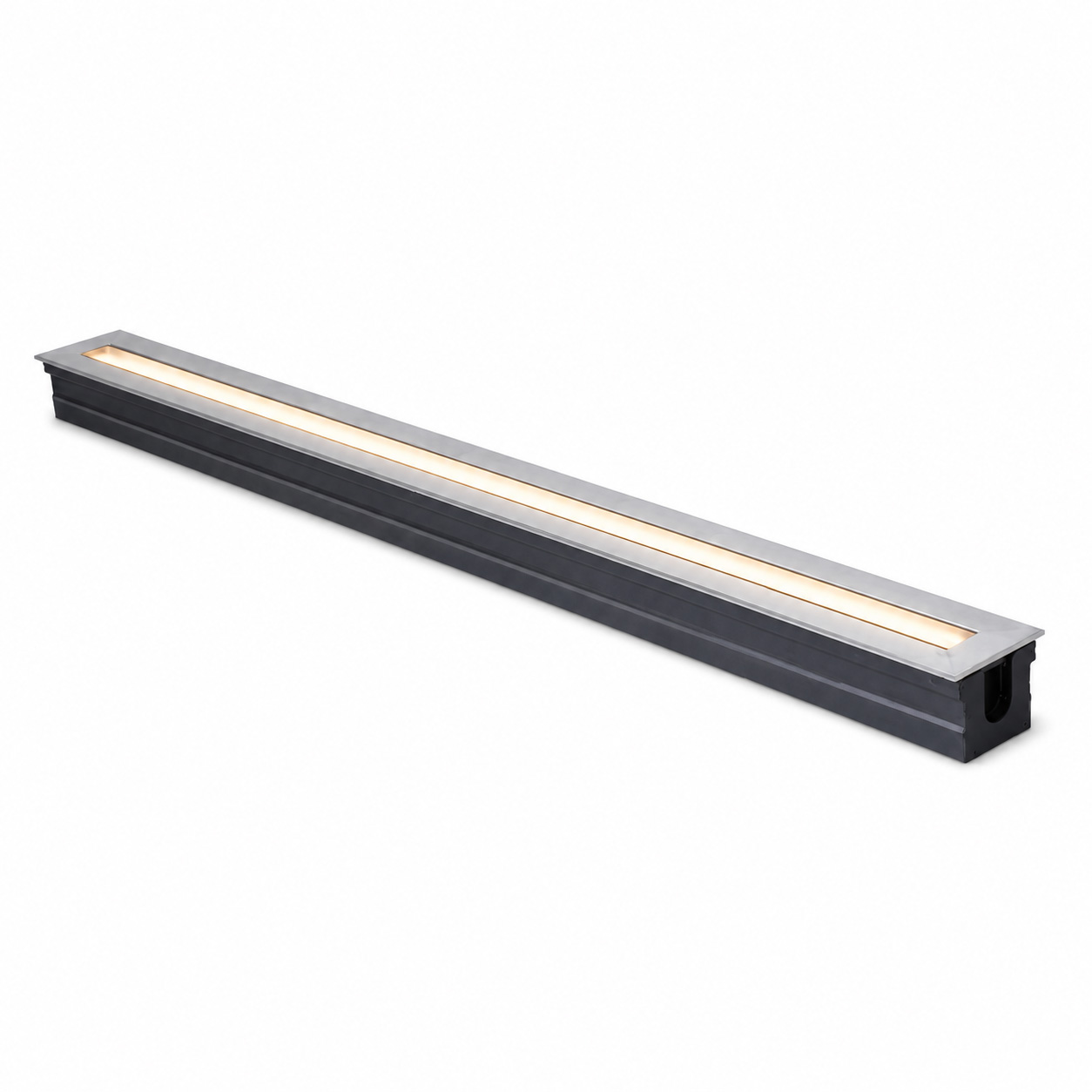

The Recessed Linear Landscape Light features
an elongated rectangular body with a narrow
upper optical opening.

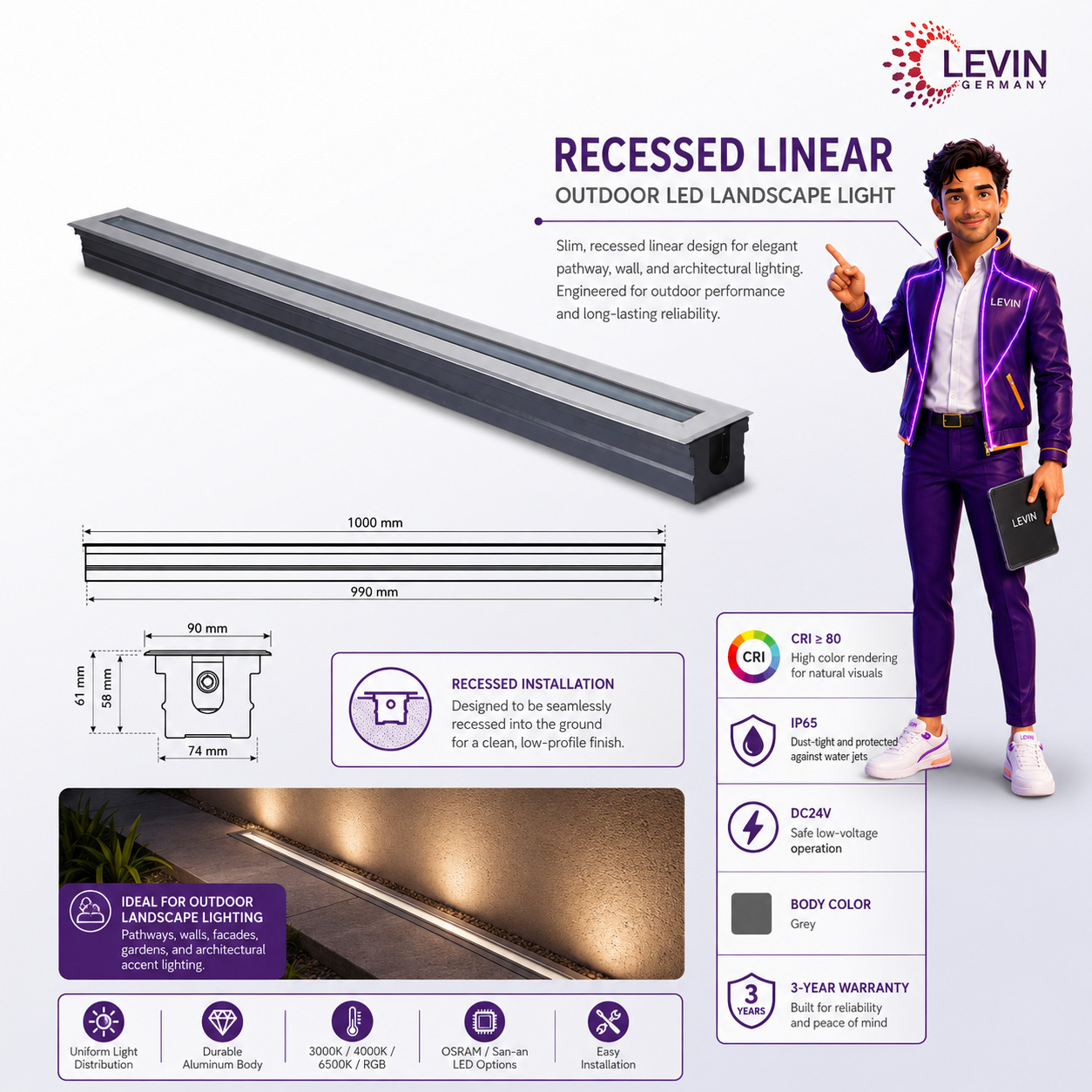

The published technical drawing shows linear
measurements of 1000mm and 990mm, alongside
several cross-sectional dimensions.
The technical specification table separately
lists 90 × 61 × 74mm.
Because these measurements are presented
under different references, the exact
complete installation dimensions should
be confirmed before preparing cut-outs
or architectural construction drawings.
DRAWING / OVERALL LINEAR DIMENSION
1000 mm
SECOND LINEAR MEASUREMENT
990 mm
Technical table: 90 × 61 × 74mm
06 / APPLICATIONS
The recessed-profile construction and multiple
optical configurations make this product an
option for exterior projects where a discreet
linear lighting appearance is desired.

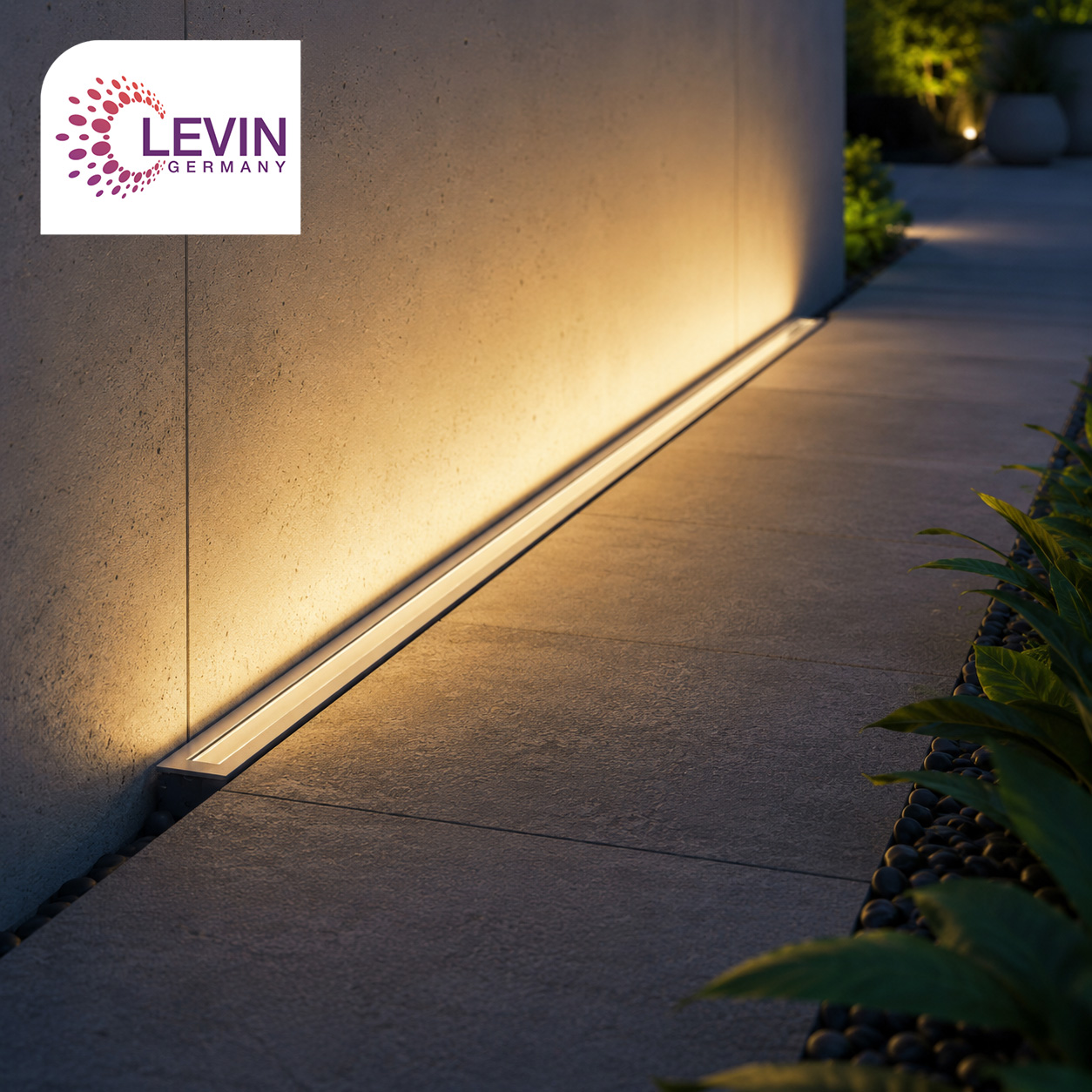

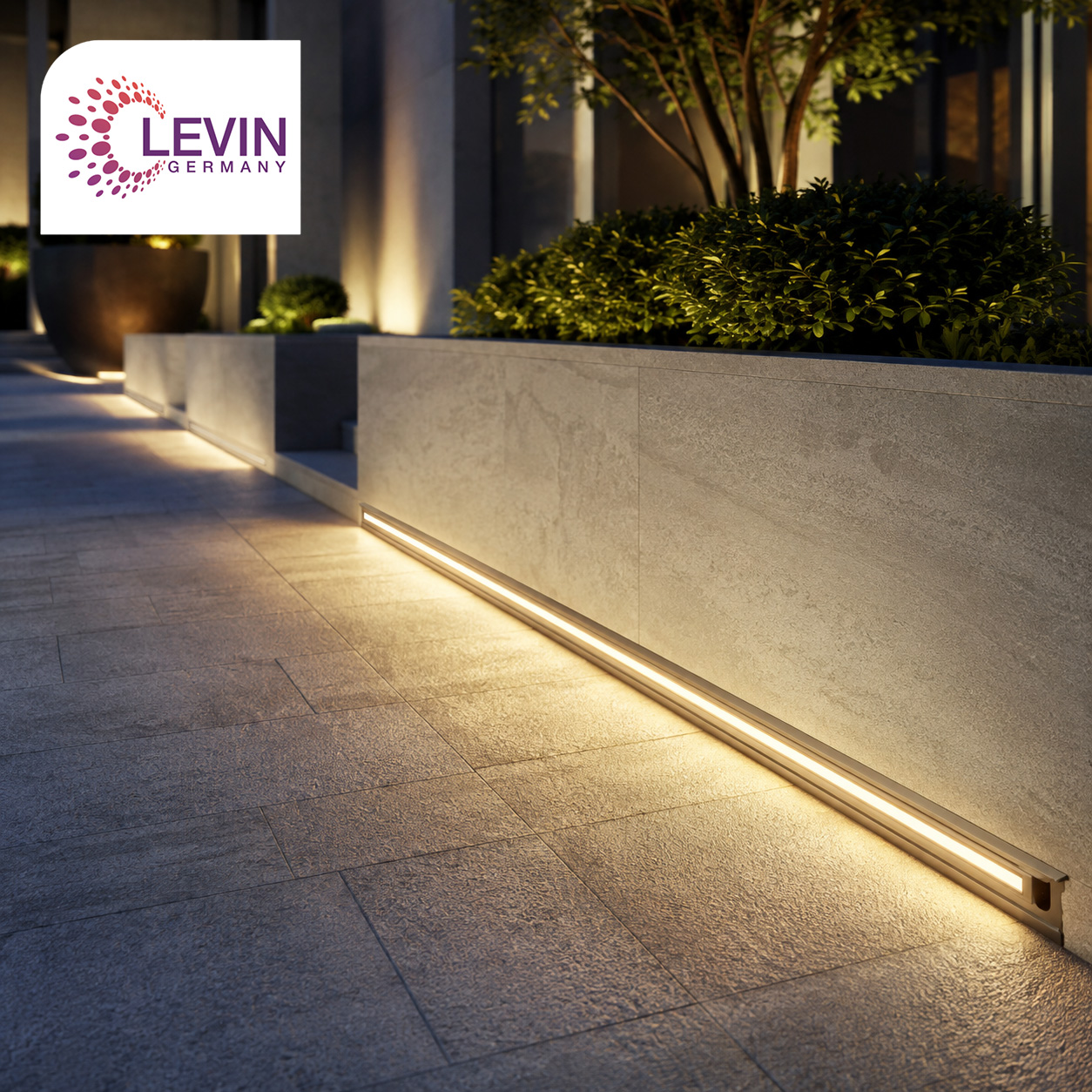

Landscape Borders
Introduce linear decorative illumination
into selected garden and landscape
boundary details.

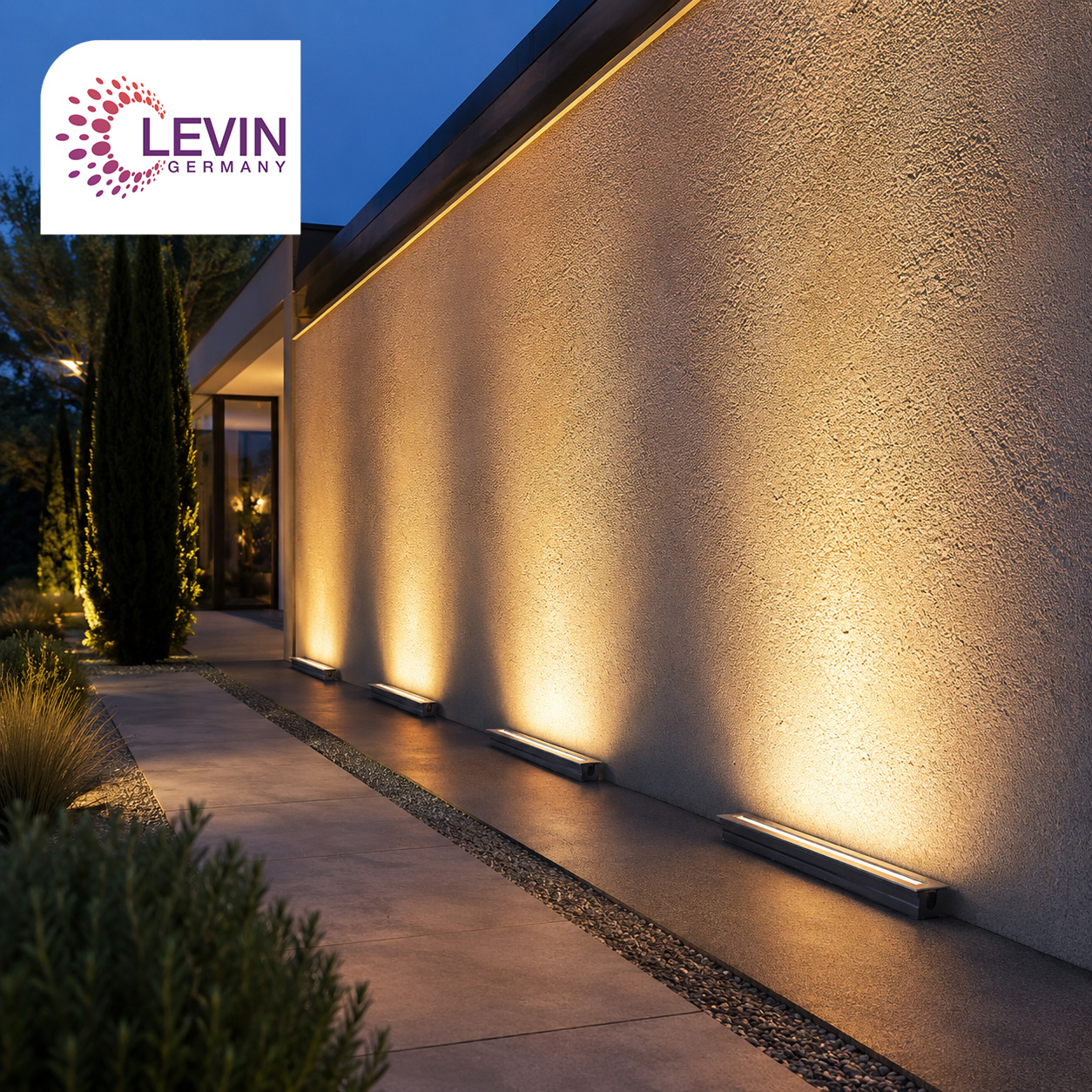

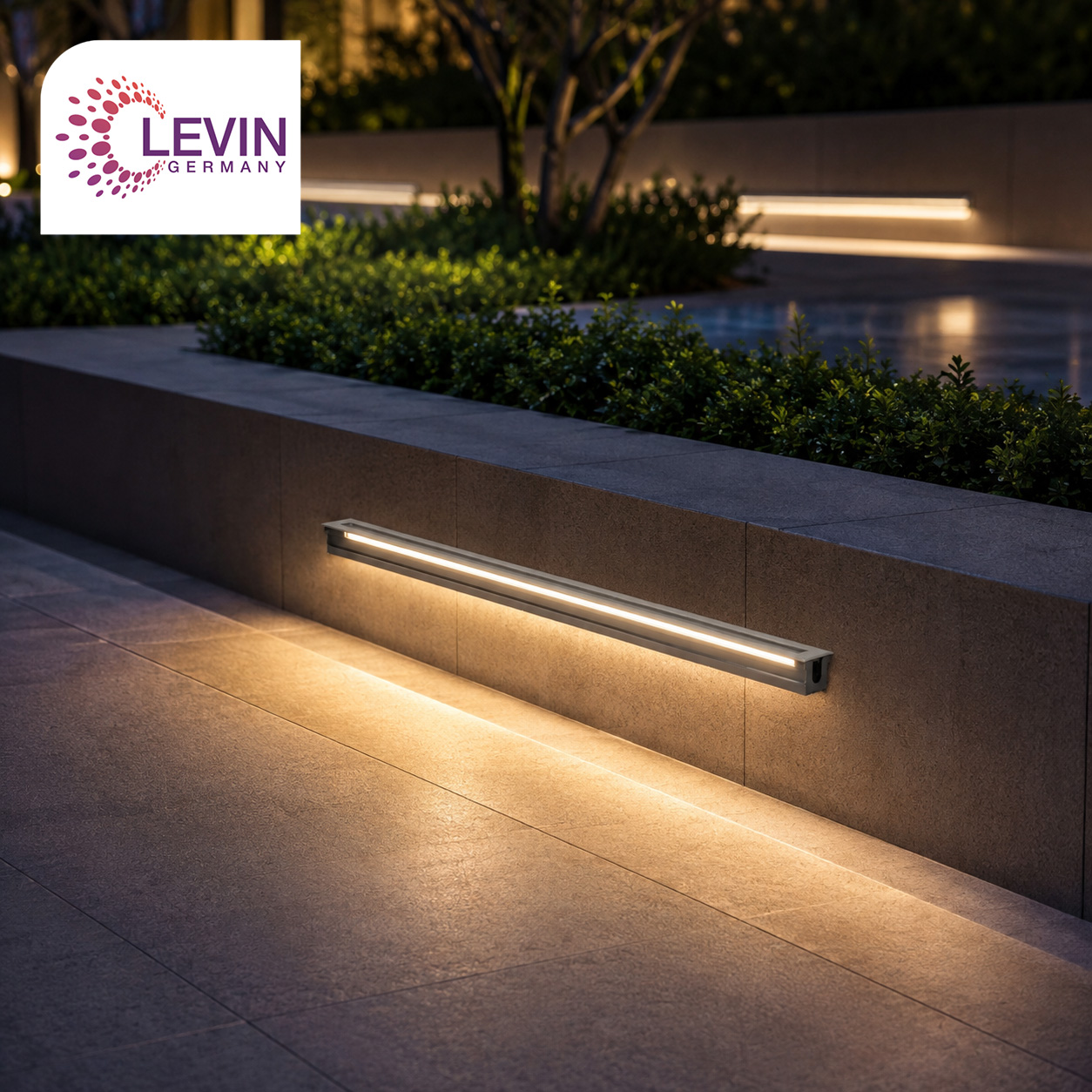

Architectural Features
Incorporate recessed-profile lighting
into suitable contemporary exterior
design elements.
Commercial Exteriors
Create a consistent linear lighting
language across selected commercial
and hospitality outdoor projects.
Final installation details, fixture positioning,
electrical connections and optical selection
should follow the requirements of the individual
lighting project.
07 / PRODUCT QUESTIONS
Six product codes are listed, from
Code 2163 to Code 2168.
The family includes 18W, 24W and
36W configurations. Each power level
has separate white-light and RGB models.
Yes. Codes 2164, 2166 and 2168
are listed as RGB versions.
White-light models 2163, 2165 and 2167
are available in 3000K, 4000K and
6500K configurations.
The product family lists 8°, 15°,
30°, 45° and 60° optical options.
Confirm availability for the selected model.
All six product codes are specified
for DC24V operation.
Fixed white-light versions use OSRAM
LED chips, while RGB configurations
are listed with San-an LEDs.
The technical table lists 90 × 61 × 74mm,
while the dimensional drawing separately
indicates 1000mm and 990mm linear
measurements. Exact installation dimensions
should be confirmed before specification.
Yes. The family has an IP65 protection
rating. Correct installation and protection
of electrical connections remain essential.
LEVIN specifies a three-year warranty
for this product family.
