CODE 2169
3W / White Light
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
OSRAM / 3 LEDs
DC24V / AC220V*
DC24V / AC220V*
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Small in size, distinctive in design. The LEVIN Compact
Hooded Spotlight combines a recessed circular optical
face with an extended protective hood, creating a refined
lighting solution for gardens, landscape features and
architectural outdoor spaces.
Available in five configurations with 3W, 6W and 9W
power options, this IP65-rated spotlight offers
fixed white-light and RGB models alongside multiple
optical beam-angle options.
01 / MODEL SELECTION
Choose the appropriate configuration according
to power, light colour and electrical requirements.
The family includes two fixed white-light models
and three RGB configurations.
CODE 2169
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
CODE 2170
Compact RGB configuration for decorative
coloured landscape lighting.
CODE 2171
Fixed white-light model with 3000K,
4000K and 6500K options.
CODE 2172
RGB lighting configuration for exterior
architectural and landscape accents.
CODE 2173
The highest rated-power configuration
within this compact spotlight family,
available in RGB.
*DC24V and AC220V are listed electrical options
for Codes 2169 and 2171. Confirm the exact voltage
version before ordering. The 9W model is RGB only.
02 / OPTICAL PERFORMANCE
From concentrated architectural accents to broader
lighting distributions, the Compact Hooded Spotlight
offers five optical beam-angle options for different
exterior lighting requirements.
These values represent available optical configurations,
not an adjustable beam mechanism. Confirm beam-angle
availability for each selected product code.
03 / TECHNICAL DATA
Compare the five LEVIN Compact Hooded Spotlight
models to identify the appropriate power,
LED configuration, light colour and electrical
requirements for your project.
| Specification | 2169 | 2170 | 2171 | 2172 | 2173 |
|---|---|---|---|---|---|
| Rated Power | 3W | 3W | 6W | 6W | 9W |
| Light Colour | 3000K / 4000K / 6500K | RGB | 3000K / 4000K / 6500K | RGB | RGB |
| LED Chip | OSRAM | San-an | OSRAM | San-an | San-an |
| LED Quantity | 3 pcs | 3 pcs | 6 pcs | 6 pcs | 9 pcs |
| Input Voltage | DC24V / AC220V* | DC24V | DC24V / AC220V* | DC24V | DC24V |
| IP Rating | IP65 | ||||
| Beam Angle Options | 8° / 15° / 30° / 45° / 60° | ||||
| CRI / Ra | ≥80 (Family Listing)** | ||||
| Dimensions | Ø66 × 103 × 89 mm | ||||
| Body Colour | Grey | ||||
| Warranty | 3 Years | ||||
*Voltage options must be confirmed before installation.
**Ra ≥80 is listed at family level; confirm specific
RGB performance where required.

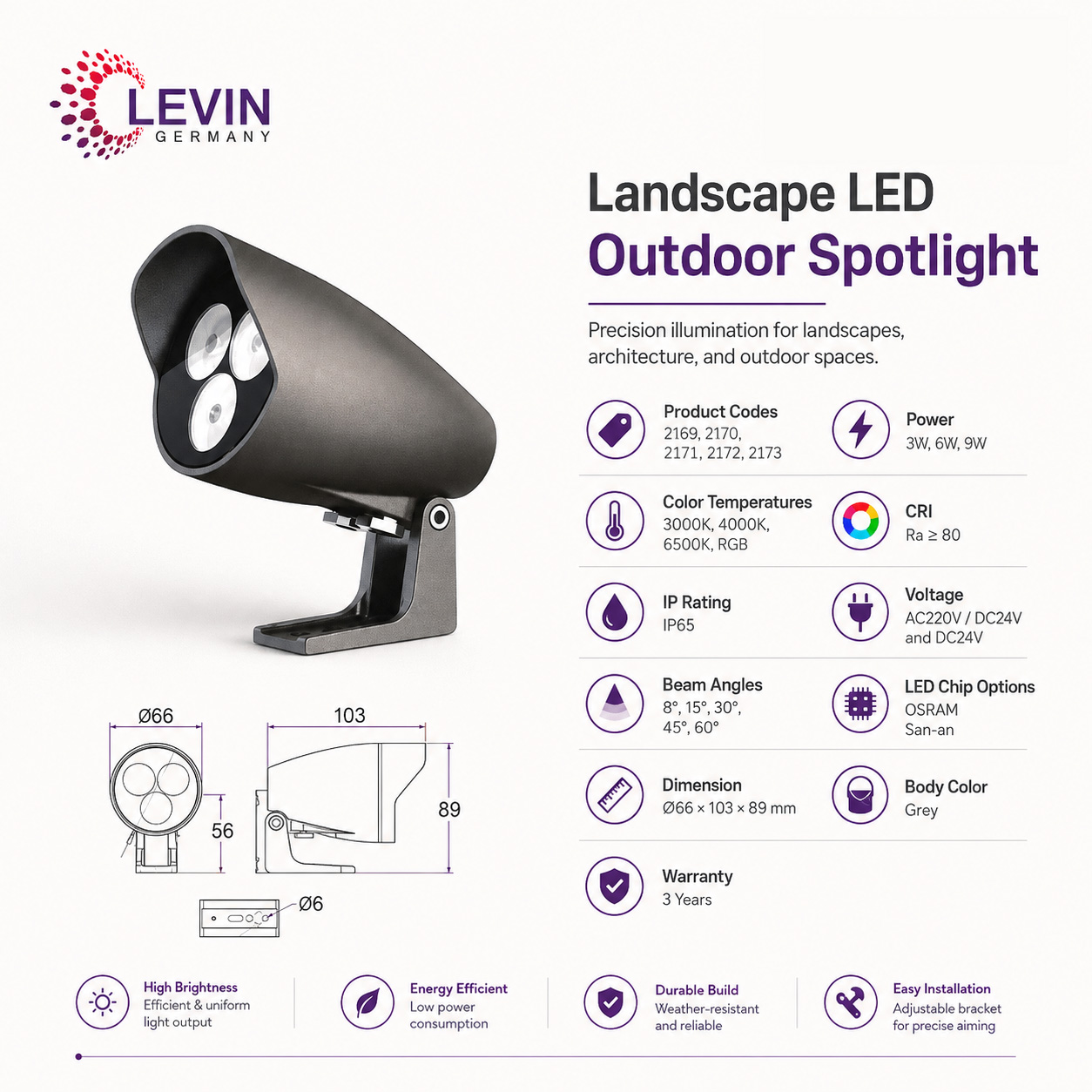

04 / DESIGN & DIMENSIONS
The Compact Hooded Spotlight features a circular
optical head positioned within an extended hood,
creating a distinctive profile for outdoor
accent-lighting applications.
Its bracket-mounted housing combines a 66mm
optical-head diameter with a 103mm body length
and an overall fixture height of 89mm.
The compact grey housing can be incorporated
into landscape arrangements where a discreet
but visually defined spotlight is required.
OPTICAL HEAD DIAMETER
Ø66 mm
OVERALL DIMENSIONS
Ø66 × 103 × 89 mm
Compact bracket-mounted spotlight
05 / APPLICATIONS
The LEVIN Compact Hooded Spotlight offers
an exterior accent-lighting solution for residential
and commercial landscape projects. Its combination
of power, colour and optical configurations supports
different architectural lighting concepts.

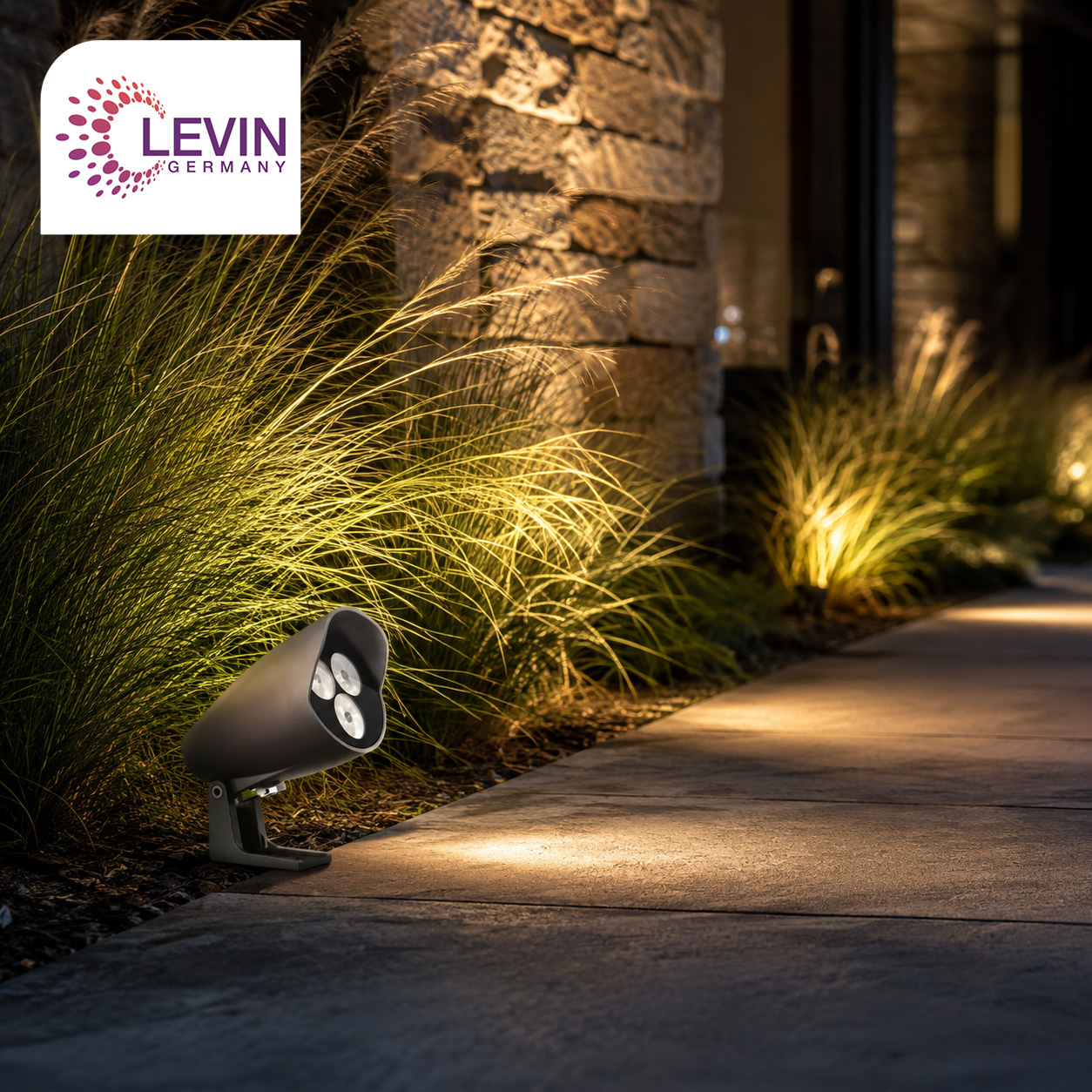

Garden Features
Introduce focused decorative illumination
to selected planting areas and landscape
design elements.
Villa Landscapes
Complement contemporary residential outdoor
spaces with compact architectural accent lighting.

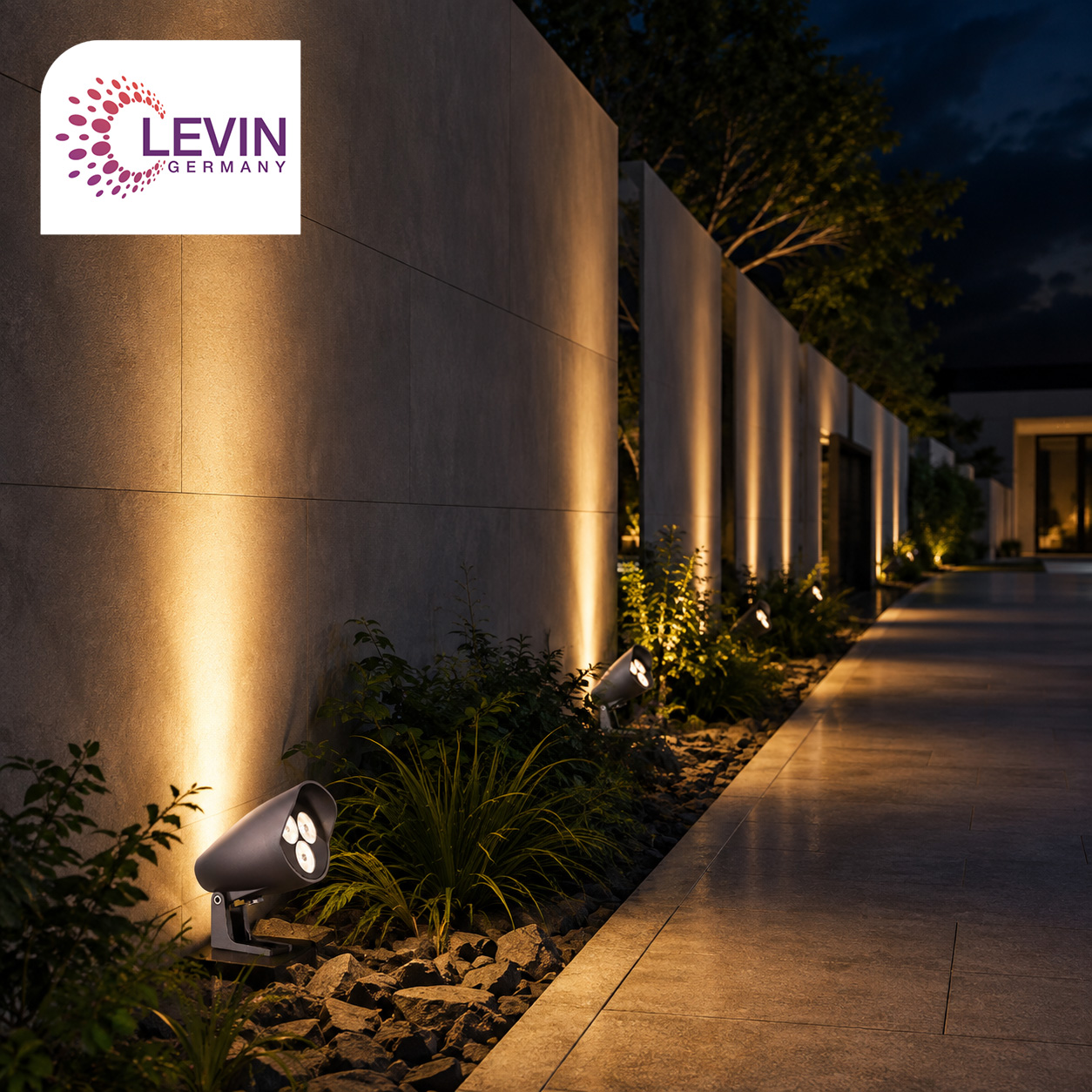

Architectural Details
Highlight selected exterior features using
an appropriate white-light or RGB configuration.
Final product selection, mounting position and optical
configuration should follow the lighting requirements
of the individual project.
06 / PRODUCT QUESTIONS
Yes. All five listed models have an IP65
protection rating and are intended for
appropriate outdoor lighting applications.
The family includes 3W, 6W and 9W configurations.
The 9W model is listed exclusively as an RGB version.
Codes 2169 and 2171 are listed with
3000K, 4000K and 6500K options.
Yes. Codes 2170, 2172 and 2173
are listed as RGB configurations.
The product family lists 8°, 15°, 30°,
45° and 60° optical options.
Confirm availability for the selected code.
The published overall dimensions
are Ø66 × 103 × 89mm.
RGB models are listed with DC24V.
Codes 2169 and 2171 additionally list
AC220V as an electrical option.
Yes. LEVIN lists a three-year warranty
for this product family.
EXPLORE LEVIN
Explore the
LEVIN Garden Lighting Collection
for additional architectural and landscape
lighting solutions.
For further information about energy-efficient
LED technology, visit the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning an architectural landscape project?
Contact LEVIN for assistance selecting
the appropriate Compact Hooded Spotlight
power, beam angle and lighting configuration.
| Rated power | 3 W, 6 W, 9 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 15°, 30°, 45°, 60°, 8° |
| Finish | Grey |
