CODE 2149
18W / White Light
Available in 3000K, 4000K and 6500K.
A compact linear configuration with
eighteen OSRAM LED chips.
260mm Length
DC24V
DC24V
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Create expressive outdoor lighting compositions with
the LEVIN Linear Landscape Light. Its slim rectangular
housing combines multiple individual LED optics in
an elongated architectural form, providing a versatile
solution for landscape accents, exterior features
and contemporary lighting projects.
Available in six configurations ranging from 18W
to 48W, the series includes fixed white-light
and RGB models, four fixture lengths and seven
listed optical distributions. All models feature
IP65 protection and DC24V operation.
01 / MODEL SELECTION
Choose the appropriate LEVIN Linear Landscape Light
according to power, light colour and fixture length.
Two models provide fixed white light, while four
separate configurations offer RGB illumination.
CODE 2149
Available in 3000K, 4000K and 6500K.
A compact linear configuration with
eighteen OSRAM LED chips.
CODE 2150
An RGB version of the compact 260mm
linear fixture, featuring eighteen
San-an LED chips.
CODE 2151
RGB lighting configuration with
eighteen San-an LED chips and
a 330mm linear housing.
CODE 2152
A longer fixed white-light version,
available in 3000K, 4000K and 6500K
with twenty-four OSRAM LED chips.
CODE 2153
A 500mm RGB lighting configuration
equipped with twenty-four
San-an LED chips.
CODE 2154
The longest and highest rated-power
configuration within this family,
featuring a 1000mm linear housing.
The 36W and 48W configurations are listed as RGB
models only. Model availability should be confirmed
before specifying a product for installation.
02 / OPTICAL PERFORMANCE
The Linear Landscape Light family provides multiple
optical configurations, allowing lighting designers
to explore concentrated accents, wider distributions
and elliptical lighting effects.
Elliptical Beam Options:
20° × 45° and 10° × 60°.
Seven optical configurations are listed in total.
These values describe available optical options,
not a mechanically adjustable beam. Confirm the
required optic for each selected product code.

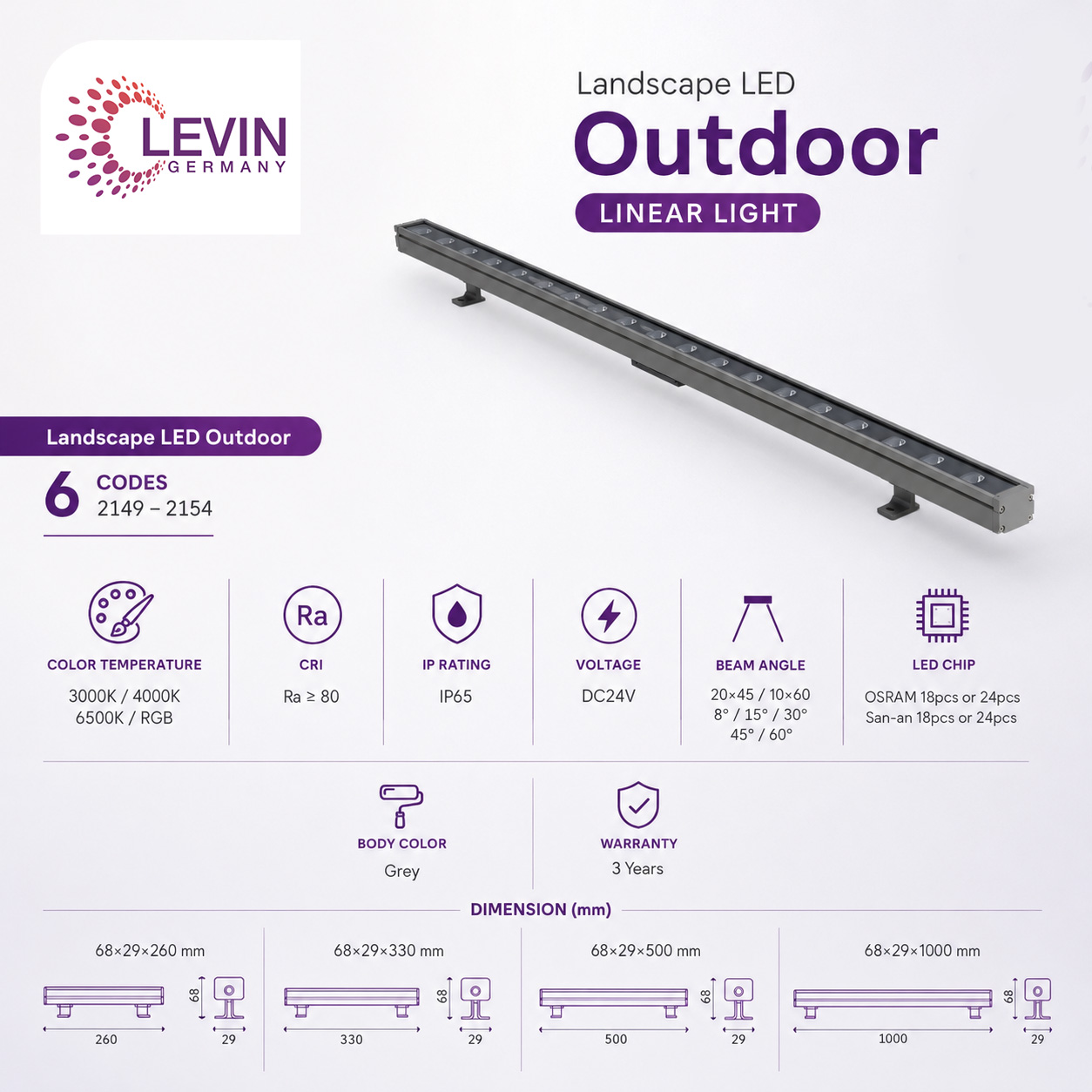

03 / TECHNICAL DATA
Compare the six LEVIN Linear Landscape Light models
to identify the appropriate power, LED configuration,
light colour and housing dimensions for your
architectural outdoor project.
| Specification | 2149 | 2150 | 2151 | 2152 | 2153 | 2154 |
|---|---|---|---|---|---|---|
| Rated Power | 18W | 18W | 36W | 24W | 24W | 48W |
| Light Colour | 3000K / 4000K / 6500K | RGB | RGB | 3000K / 4000K / 6500K | RGB | RGB |
| LED Chip | OSRAM | San-an | San-an | OSRAM | San-an | San-an |
| LED Quantity | 18 pcs | 18 pcs | 18 pcs | 24 pcs | 24 pcs | 24 pcs |
| Input Voltage | DC24V | |||||
| Protection Rating | IP65 | |||||
| Beam Angle Options |
8° / 15° / 30° / 45° / 60° / 20° × 45° / 10° × 60° |
|||||
| CRI / Ra | ≥80 (Family Listing)* | |||||
| Dimensions (mm) | 68 × 29 × 260 | 68 × 29 × 260 | 68 × 29 × 330 | 68 × 29 × 500 | 68 × 29 × 500 | 68 × 29 × 1000 |
| Body Colour | Grey | |||||
| Warranty | 3 Years | |||||
*Ra ≥80 is displayed as a family-level specification
in the catalogue. Confirm model-specific RGB colour
rendering if it is a critical project requirement.
No AC mains-input version is listed for this family.

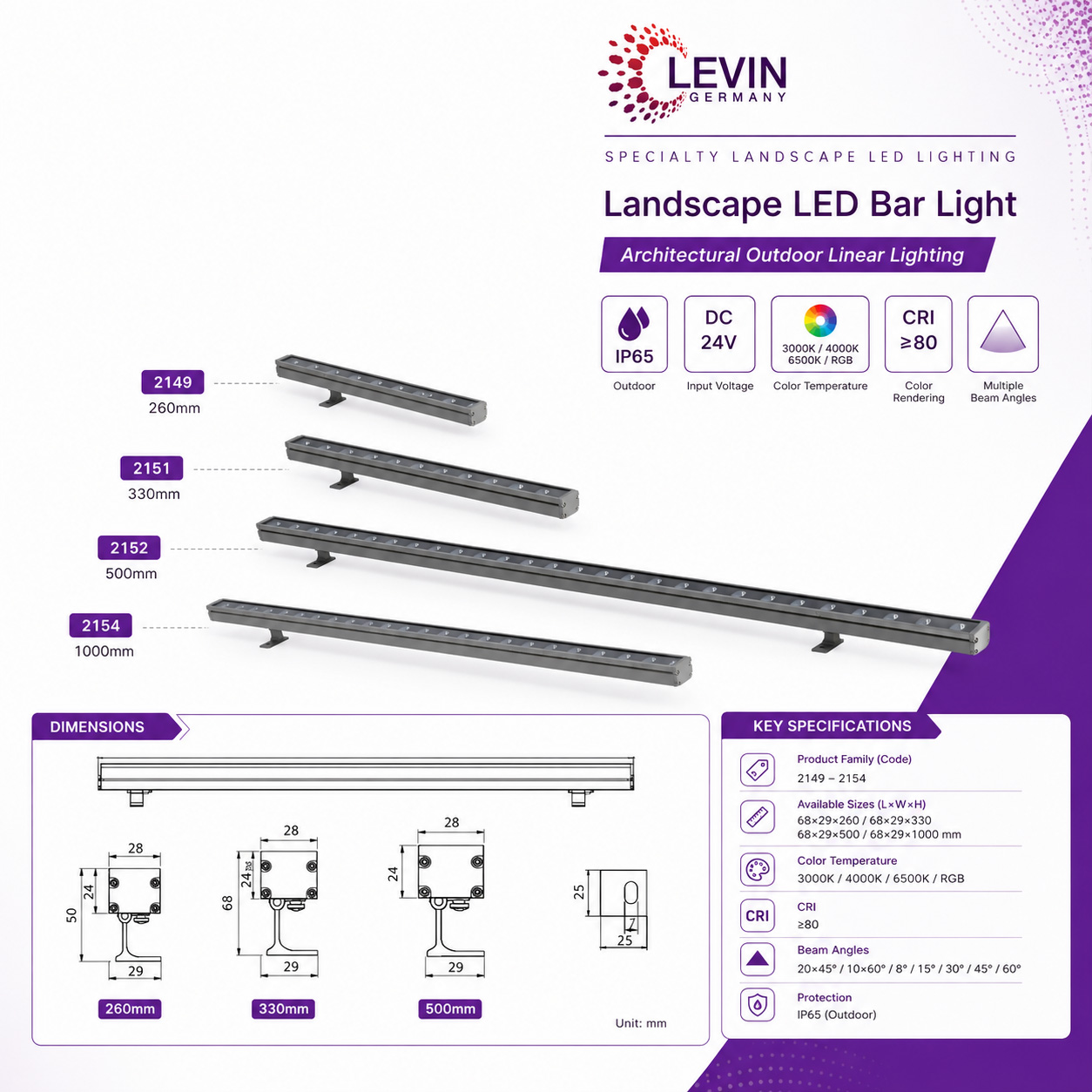

04 / DESIGN & DIMENSIONS

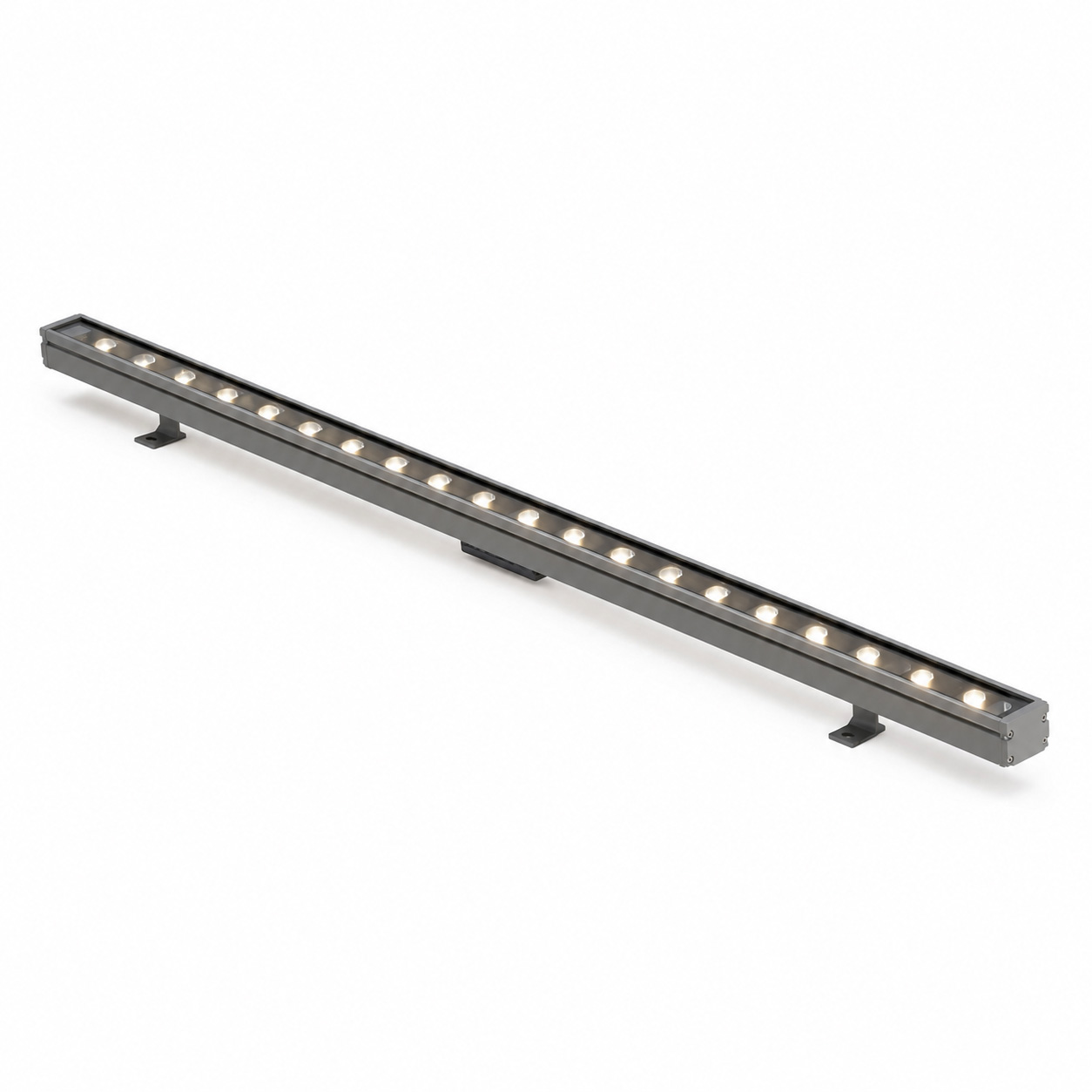

The LEVIN Linear Landscape Light features a slim
rectangular aluminium-like visual profile with
individual optical elements arranged along the
length of its grey housing.
Mounting brackets are positioned beneath the
fixture, while the different lengths allow
lighting designers to maintain a consistent
architectural appearance across installations
of varying scales.
The catalogue confirms four overall lengths:
260mm, 330mm, 500mm and 1000mm.
All models share a 68 × 29mm cross-section.
LONGEST CONFIGURATION
1000 mm
AVAILABLE FIXTURE LENGTHS
260 / 330 / 500 / 1000 mm
Shared cross-section: 68 × 29mm
05 / APPLICATIONS
Combining multiple fixture lengths with different
optical distributions, the LEVIN Linear Landscape
Light supports a variety of exterior architectural
and decorative lighting concepts.

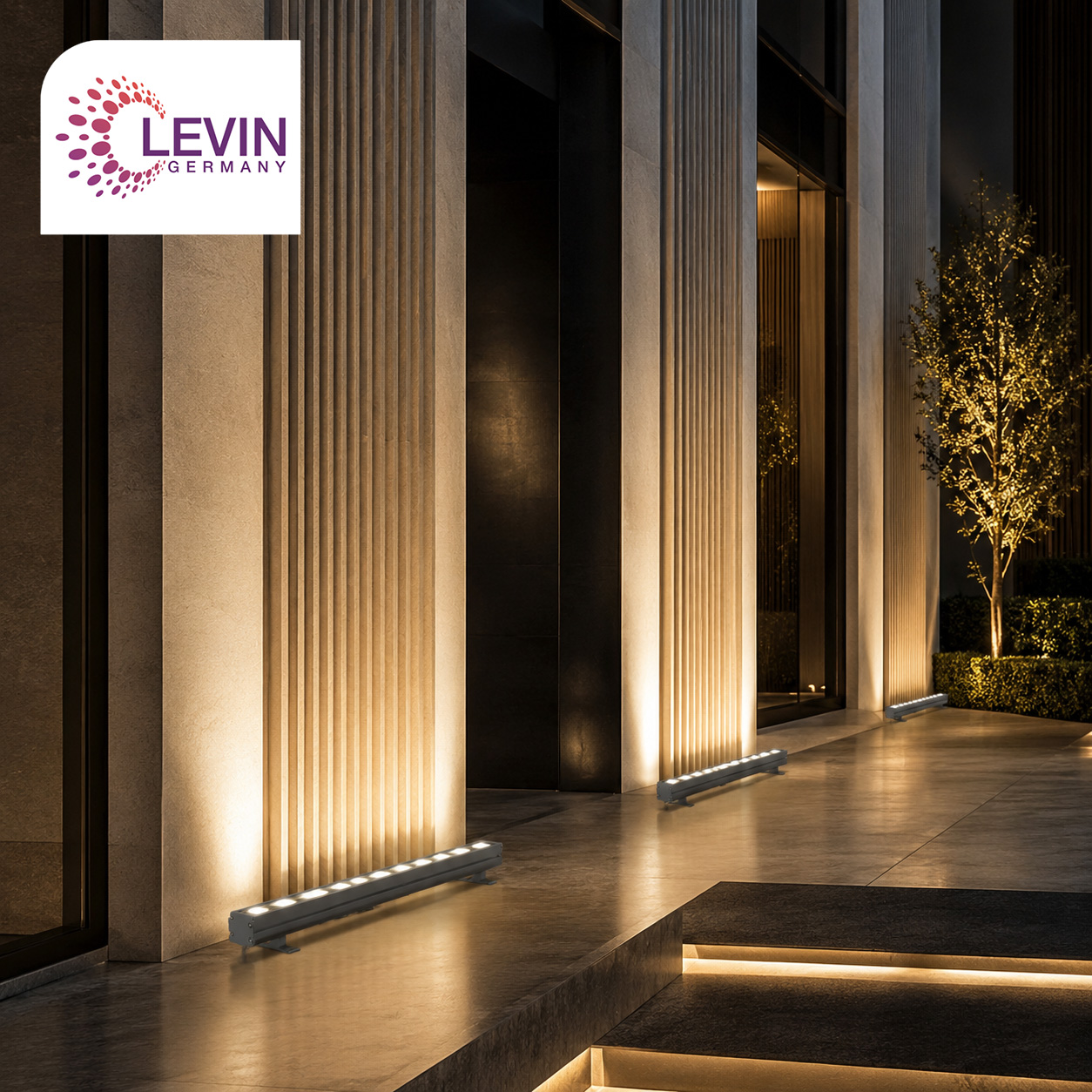

Building Façades
Introduce linear accent lighting to
selected architectural surfaces
and exterior design features.

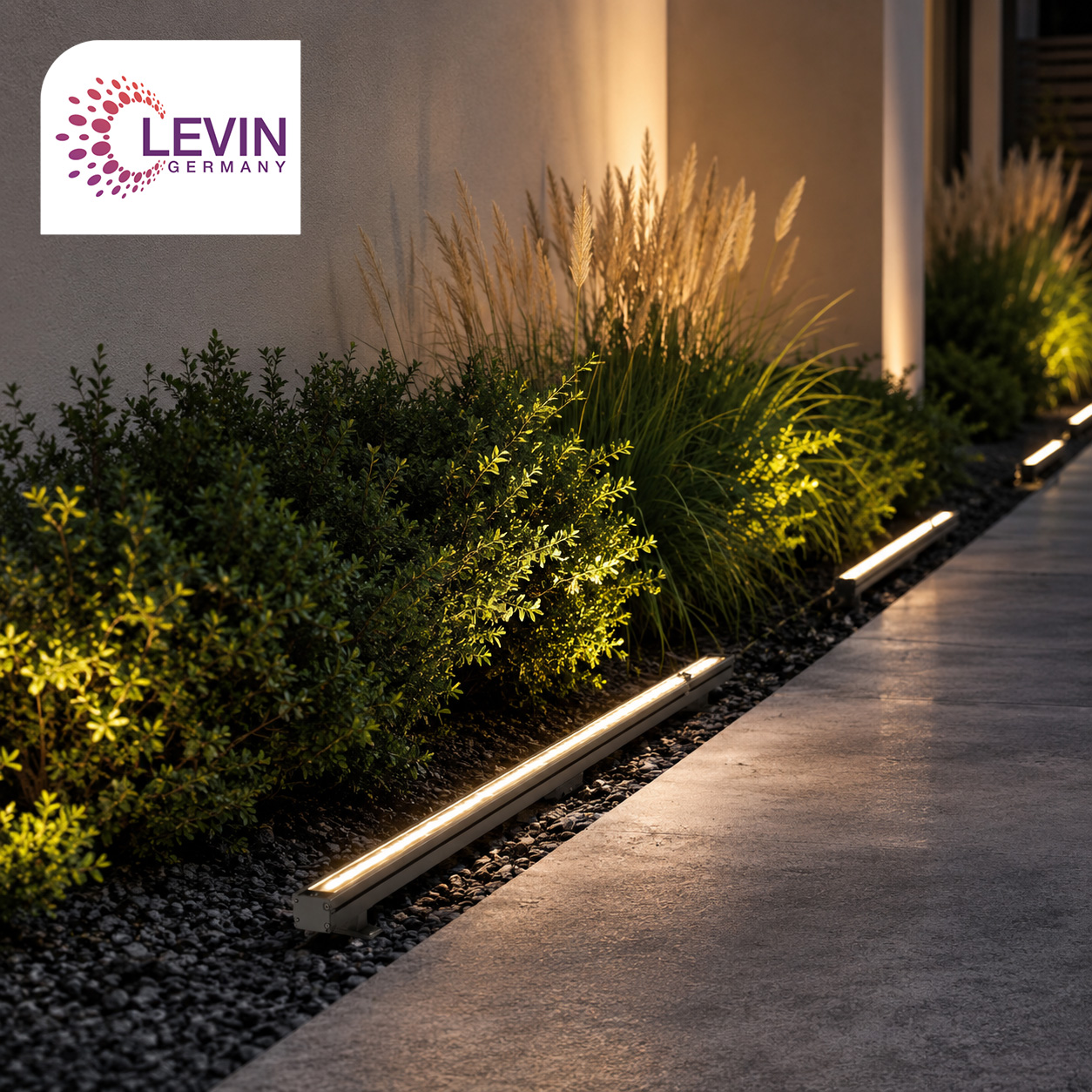

Landscape Elements
Highlight planting arrangements,
garden walls and decorative outdoor
compositions.
Villa & Commercial Projects
Maintain a consistent linear lighting
language across residential and
commercial exterior environments.
Fixture spacing, optical selection, electrical
configuration and mounting requirements should
be determined according to the individual project.
06 / PRODUCT QUESTIONS
Six product codes are listed, from
Code 2149 to Code 2154.
The family includes 18W, 24W, 36W
and 48W configurations.
Yes. Codes 2150, 2151, 2153 and 2154
are listed as RGB configurations.
Codes 2149 and 2152 provide fixed
white-light options in 3000K, 4000K
and 6500K.
The seven listed options are 8°, 15°,
30°, 45°, 60°, 20° × 45° and 10° × 60°.
The latter two represent elliptical
optical distributions.
All six models are specified
for DC24V operation.
Depending on the selected product code,
the available lengths are 260mm,
330mm, 500mm and 1000mm.
The product family has an IP65 protection
rating. Installation must also consider
site conditions and properly protected
electrical connections.
Yes. LEVIN specifies a three-year
warranty for the product family.
EXPLORE LEVIN
Discover additional fixtures in the
LEVIN Garden Lighting Collection
for architectural landscapes, gardens
and exterior lighting projects.
Learn more about LED lighting through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning a professional outdoor lighting project?
Contact LEVIN for assistance selecting the
appropriate Linear Landscape Light model,
fixture length, optical distribution
and lighting configuration.
| Rated power | 18 W, 24 W, 36 W, 48 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 10°, 15°, 20°, 30°, 45°, 60°, 8° |
| Finish | Grey |
