CODE 2206
18W / White Light
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
OSRAM / 18 LEDs
DC24V / AC220V*
DC24V / AC220V*
LEVIN / PROFESSIONAL OUTDOOR LIGHTING
Integrate architectural lighting into outdoor
environments with the LEVIN Round Recessed
Landscape Light. Featuring a distinctive
Ø200mm circular profile, this IP65-rated
lighting family combines a discreet recessed
design with multiple power and optical
configurations for professional exterior projects.
Available in six models ranging from 18W to 48W,
the collection offers five beam-angle options,
OSRAM and San-an LED configurations, and two
published housing heights. Its black circular
body provides a refined appearance for
contemporary landscape lighting concepts.
01 / MODEL SELECTION
Choose the appropriate LEVIN Round Recessed
Landscape Light according to rated power,
LED configuration and electrical requirements.
The product family includes six individual
codes with different technical specifications.
CODE 2206
Available in 3000K, 4000K and 6500K
fixed white-light configurations.
CODE 2207
An 18W configuration equipped with
eighteen San-an LED chips.
Light-colour specifications require
manufacturer confirmation.
CODE 2208
Fixed white-light model available
in 3000K, 4000K and 6500K with
twenty-four OSRAM LED chips.
CODE 2209
A 24W model featuring twenty-four
San-an LED chips and DC24V operation.
Light colour should be confirmed
before specification.
CODE 2210
A higher rated-power configuration
equipped with eighteen San-an LED chips
and a specified DC24V input.
CODE 2211
The highest rated-power configuration
within this Ø200mm product family,
featuring twenty-four San-an LED chips.
*DC24V and AC220V are listed electrical options
for Codes 2206 and 2208. Confirm the exact
voltage version before ordering.
The published technical table does not explicitly
identify the light colour of Codes 2207, 2209,
2210 and 2211. No RGB designation has been
assumed for these models.
02 / OPTICAL PERFORMANCE
From concentrated architectural accents
to wider outdoor lighting distributions,
the LEVIN Round Recessed Landscape Light
family offers five listed optical
configurations for different project needs.
These values represent available optical
configurations, not a mechanically adjustable
beam. Confirm the required optical version
for the selected product code.
03 / TECHNICAL DATA
Compare the six LEVIN Round Recessed Landscape
Light models to identify the appropriate
power, LED configuration, input voltage
and lighting characteristics for your project.
| Specification | 2206 | 2207 | 2208 | 2209 | 2210 | 2211 |
|---|---|---|---|---|---|---|
| Rated Power | 18W | 18W | 24W | 24W | 36W | 48W |
| Light Colour | 3000K / 4000K / 6500K | Not specified | 3000K / 4000K / 6500K | Not specified | Not specified | Not specified |
| LED Chip | OSRAM | San-an | OSRAM | San-an | San-an | San-an |
| LED Quantity | 18 pcs | 18 pcs | 24 pcs | 24 pcs | 18 pcs | 24 pcs |
| Input Voltage | DC24V / AC220V* | DC24V | DC24V / AC220V* | DC24V | DC24V | DC24V |
| CRI / Ra | ≥80 | |||||
| IP Rating | IP65 | |||||
| Beam Angle Options | 8° / 15° / 30° / 45° / 60° | |||||
| Outer Diameter | Ø200mm | |||||
| Housing Heights | 75mm / 93mm** | |||||
| Body Colour | Black | |||||
| Warranty | 3 Years | |||||
*The catalogue does not clarify whether DC24V
and AC220V represent separate electrical versions
or simultaneous input compatibility.
**The published dimensions include Ø200 × 75mm
and Ø200 × 93mm configurations. These housing
heights are not assigned to individual product
codes in the supplied technical table.

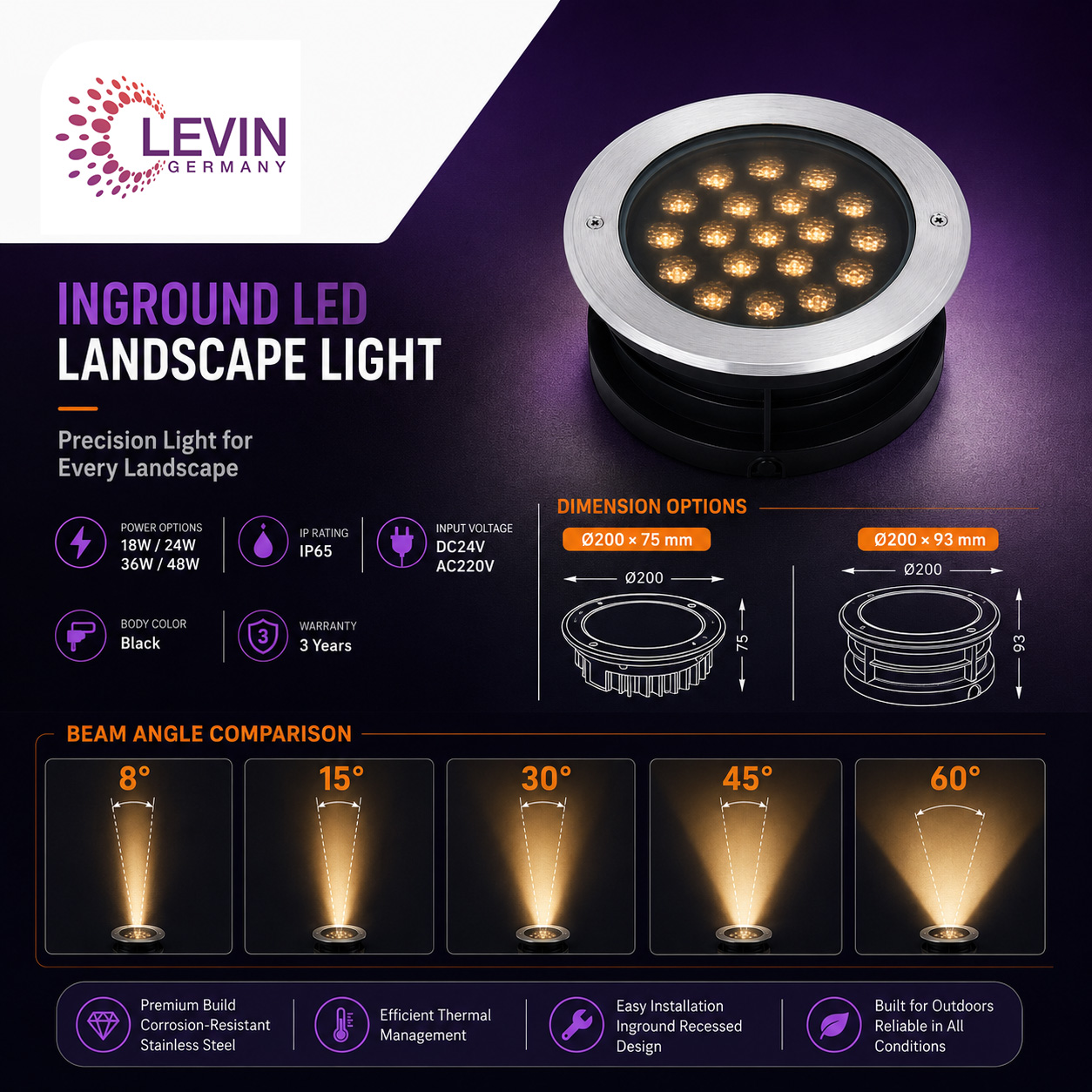

04 / DESIGN & DIMENSIONS

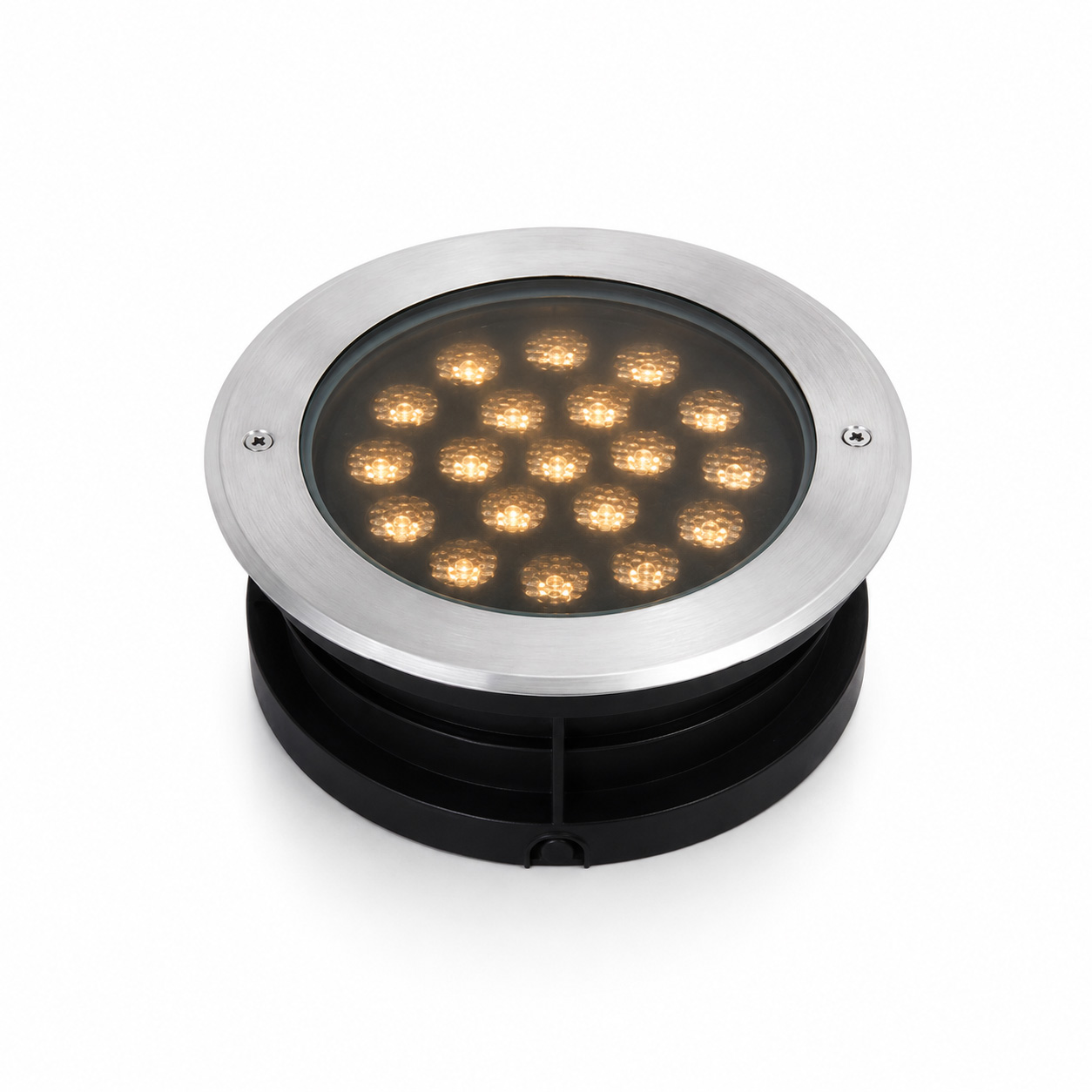

The Round Recessed Landscape Light combines
a circular upper flange with an optical
section positioned inside the centre
of its black housing.
With a common outer diameter of 200mm,
the collection provides two published
dimensional configurations:
Ø200 × 75mm and Ø200 × 93mm.
The taller configuration also features
a lower housing diameter of Ø185mm
according to the catalogue drawing.
OUTER DIAMETER
Ø200 mm
LISTED HOUSING HEIGHTS
75 / 93 mm
Model-specific dimensions require confirmation
Confirm the exact housing height and installation
cut-out requirements of the selected product
code before preparing architectural or
electrical installation drawings.

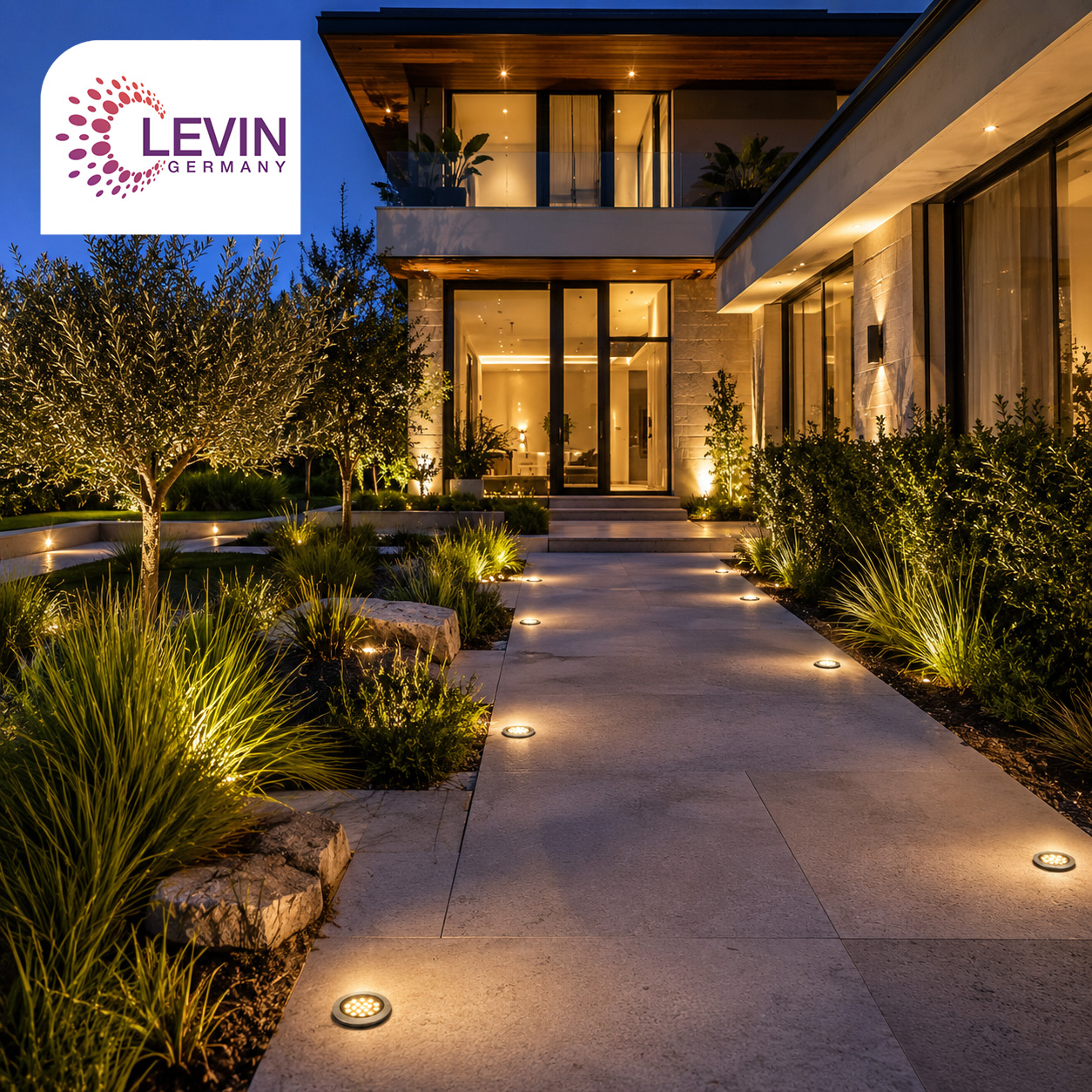

05 / APPLICATIONS
With its recessed circular design, different
power configurations and five optical options,
this product family can be considered for
exterior accent-lighting projects where
architectural integration is important.
Landscape Features
Introduce selected lighting accents
to garden elements and contemporary
landscape compositions.
Architectural Exteriors
Integrate circular recessed lighting
into suitable outdoor architectural
surfaces and features.
Residential & Commercial Projects
Explore different lighting
configurations for villa landscapes,
courtyards and exterior environments.
Final fixture selection, lighting levels,
mounting position and optical distribution
should follow the requirements of the
individual project.
06 / PRODUCT QUESTIONS
The product family includes 18W, 24W,
36W and 48W configurations across
six product codes.
Codes 2206 and 2208 are explicitly
available in 3000K, 4000K and 6500K.
Light-colour specifications for the
remaining codes require confirmation.
The product family lists 8°, 15°,
30°, 45° and 60° beam-angle options.
Yes. All six models have an IP65 protection
rating. Correct installation and protection
of electrical connections remain essential.
All six models list DC24V. Codes 2206
and 2208 additionally list AC220V
as an electrical option.
The family includes OSRAM and San-an
LED configurations, depending on
the selected product code.
The published dimensional configurations
are Ø200 × 75mm and Ø200 × 93mm.
The catalogue does not map these
heights to individual product codes.
Black is the listed body colour
for this product family.
Yes. LEVIN specifies a three-year
warranty for this lighting family.
EXPLORE LEVIN
Explore additional professional outdoor fixtures
in the
LEVIN Garden Lighting Collection
for residential landscapes and architectural
exterior lighting projects.
Learn more about efficient LED technology
through the
U.S. Department of Energy LED Lighting Guide
.
LEVIN / PROJECT SUPPORT
Planning a residential or commercial
outdoor lighting project? Contact LEVIN
for assistance selecting the appropriate
Round Recessed Landscape Light model,
optical configuration and installation
requirements.
| Rated power | 18 W, 24 W, 36 W, 48 W |
|---|---|
| Light colour / CCT | 3000K, 4000K, 6500K |
| IP rating | IP65 |
| CRI | ≥ 80 |
| Beam angle | 15°, 30°, 45°, 60°, 8° |
| Finish | Black |
