CODE 2202
9W / White Light
3000K, 4000K and 6500K
colour temperature options.
9 LEDs
DC24V / AC220V*
DC24V / AC220V*
LEVIN / PROFESSIONAL OUTDOOR LIGHTING

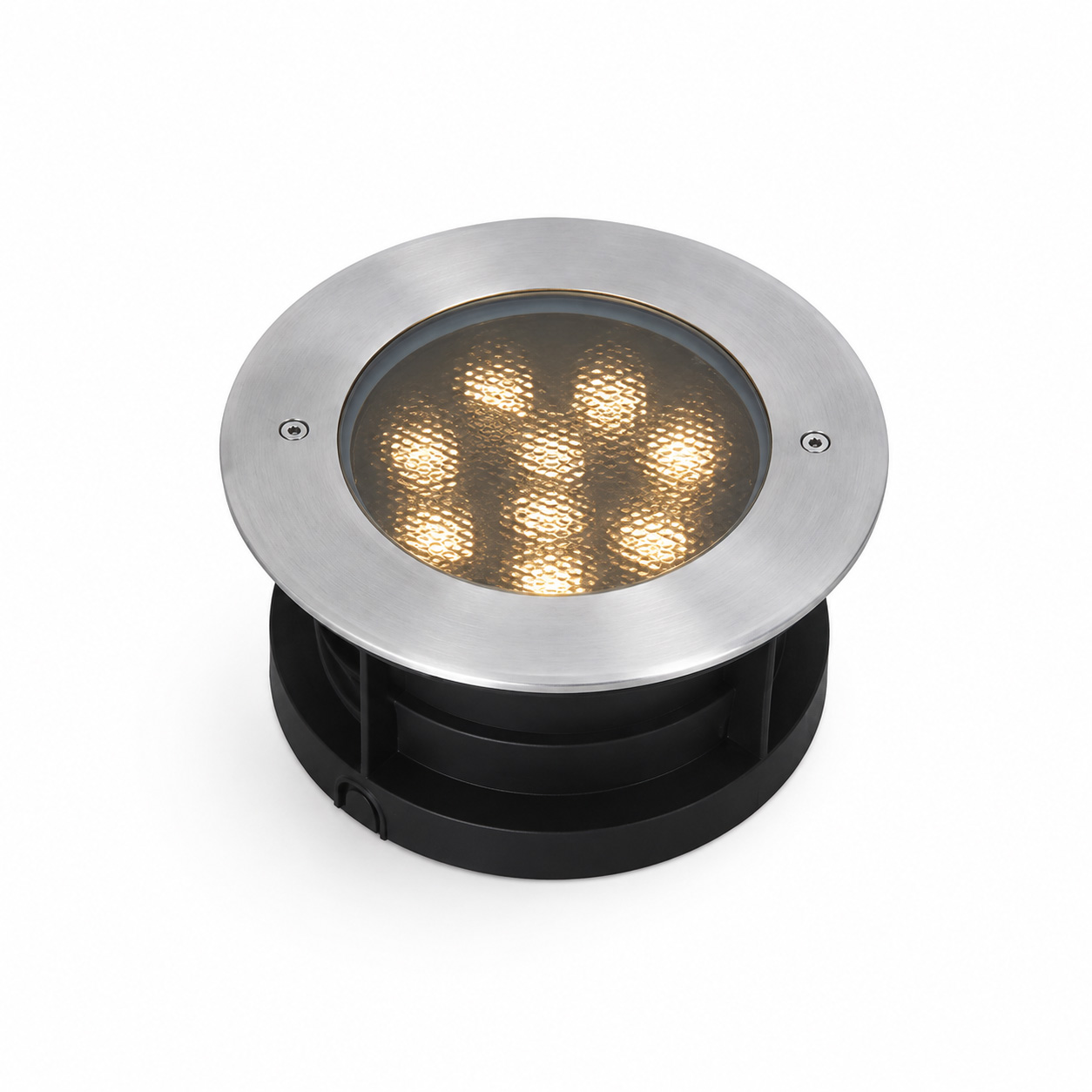

The LEVIN 180mm Round Landscape Light is a compact
IP65-rated LED fixture designed for architectural
outdoor lighting and landscape accent applications.
Available in 9W, 12W and 24W configurations, this
circular lighting family combines fixed white-light
and RGB models with multiple optical beam options.
01 / MODEL SELECTION
Select the appropriate 180mm Round Landscape Light
according to power requirements, light colour and
electrical configuration. The family includes two
fixed white-light models and two RGB models.
CODE 2202
3000K, 4000K and 6500K
colour temperature options.
CODE 2203
Fixed white-light configuration
in 3000K, 4000K and 6500K.
CODE 2204
RGB lighting configuration for
coloured exterior lighting concepts.
CODE 2205
Higher rated-power RGB model
for outdoor lighting projects.
*DC24V and AC220V are listed for Codes 2202 and 2203.
Please confirm the exact electrical version before ordering.
02 / OPTICAL PERFORMANCE
The LEVIN 180mm Round Landscape Light family offers
five listed optical beam-angle options for different
landscape and architectural accent-lighting requirements.
Beam angles represent listed optical configurations,
not a mechanically adjustable beam. Confirm availability
for the selected product code.

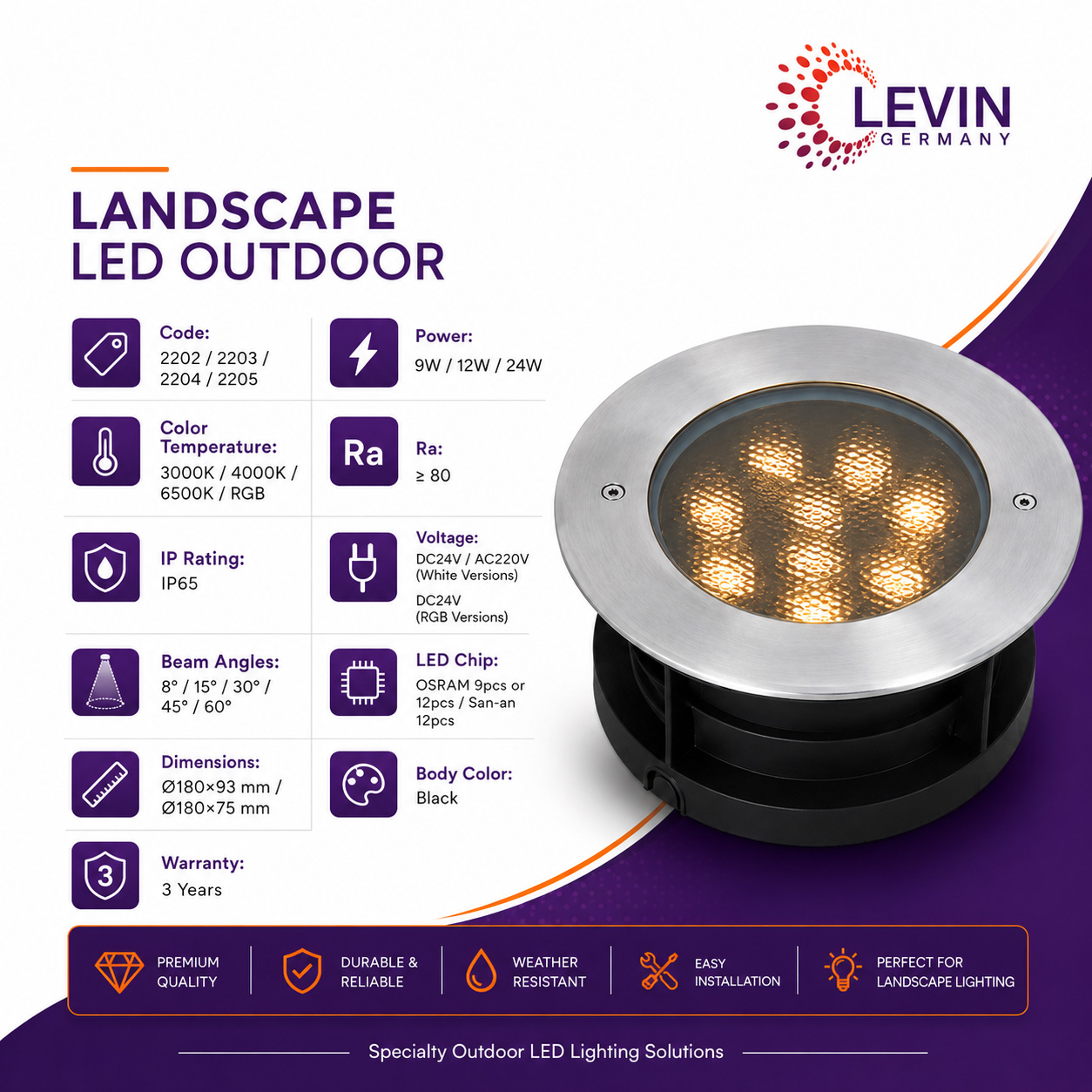

03 / TECHNICAL DATA
Compare the four available LEVIN 180mm Round Landscape
Light models to identify the required power, voltage,
LED configuration and light-colour option.
| Specification | 2202 | 2203 | 2204 | 2205 |
|---|---|---|---|---|
| Power | 9W | 12W | 12W | 24W |
| Light Colour | 3000K / 4000K / 6500K | 3000K / 4000K / 6500K | RGB | RGB |
| Input Voltage | DC24V / AC220V* | DC24V / AC220V* | DC24V | DC24V |
| LED Configuration | OSRAM / 9 pcs** | OSRAM / 12 pcs** | San-an / 12 pcs | San-an / 12 pcs |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Beam Angle Options | 8° / 15° / 30° / 45° / 60° | |||
| CRI / Ra | ≥80 (Family Listing)*** | |||
| Outer Diameter | Ø180mm | |||
| Housing Heights | 75mm / 93mm**** | |||
| Body Colour | Black | |||
| Warranty | 3 Years | |||
*Voltage versions require confirmation.
**The source catalogue prints OSRA1; confirm the
manufacturer’s exact LED designation.
***The CRI value is displayed at family level;
RGB-specific performance should be confirmed.
****Housing heights are not mapped to individual
product codes in the published technical information.

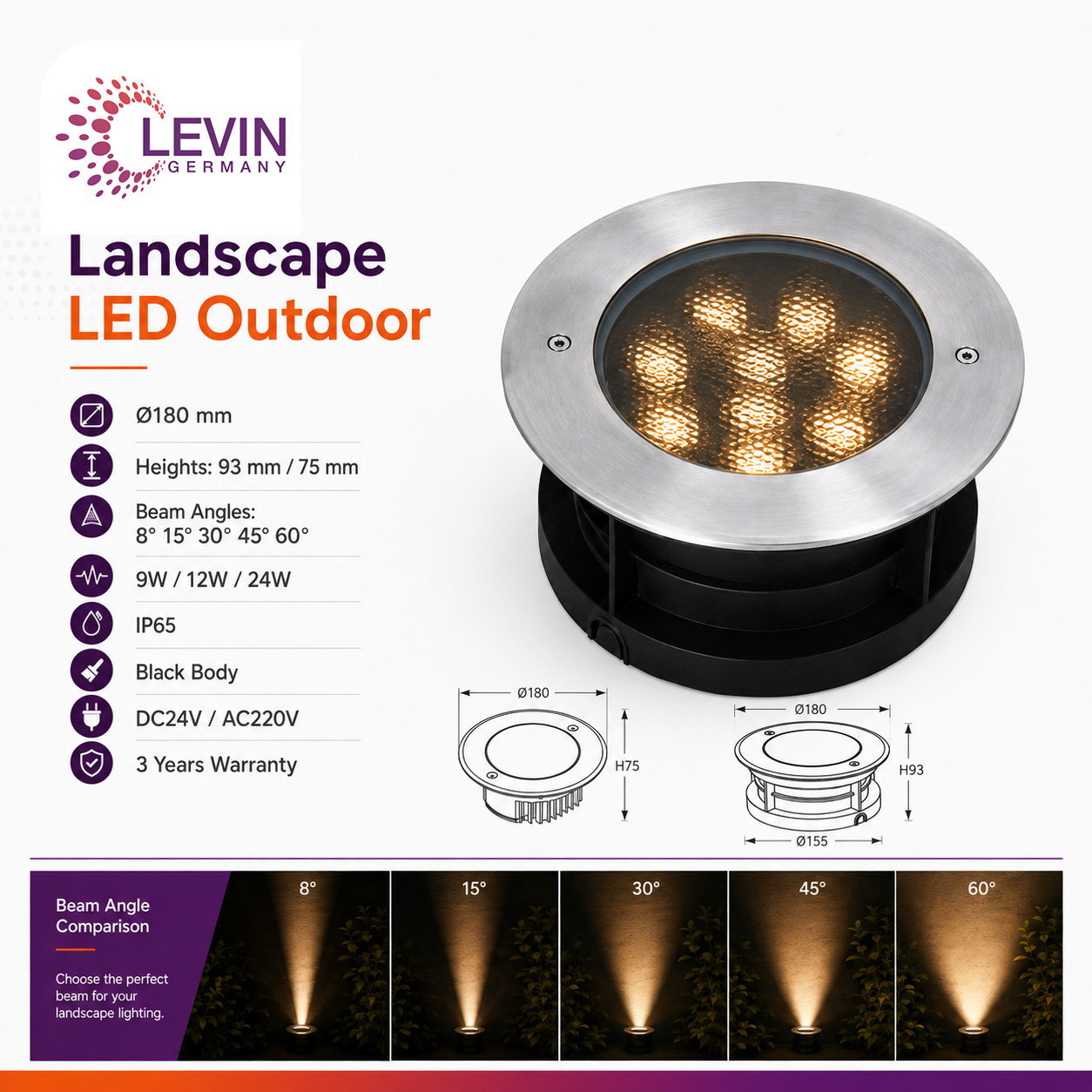

04 / DIMENSIONS & PLANNING
The 180mm Round Landscape Light features a circular
upper frame with a central optical section and
cylindrical lower housing.
The published drawings illustrate two family
configurations: Ø180 × 75mm and Ø180 × 93mm.
The taller housing drawing also identifies a lower
body diameter of Ø155mm.
Confirm the housing dimensions of your selected
model before finalising installation details
or architectural drawings.
OUTER DIAMETER
Ø180 mm
LISTED HOUSING HEIGHTS
75 / 93 mm
Subject to model confirmation

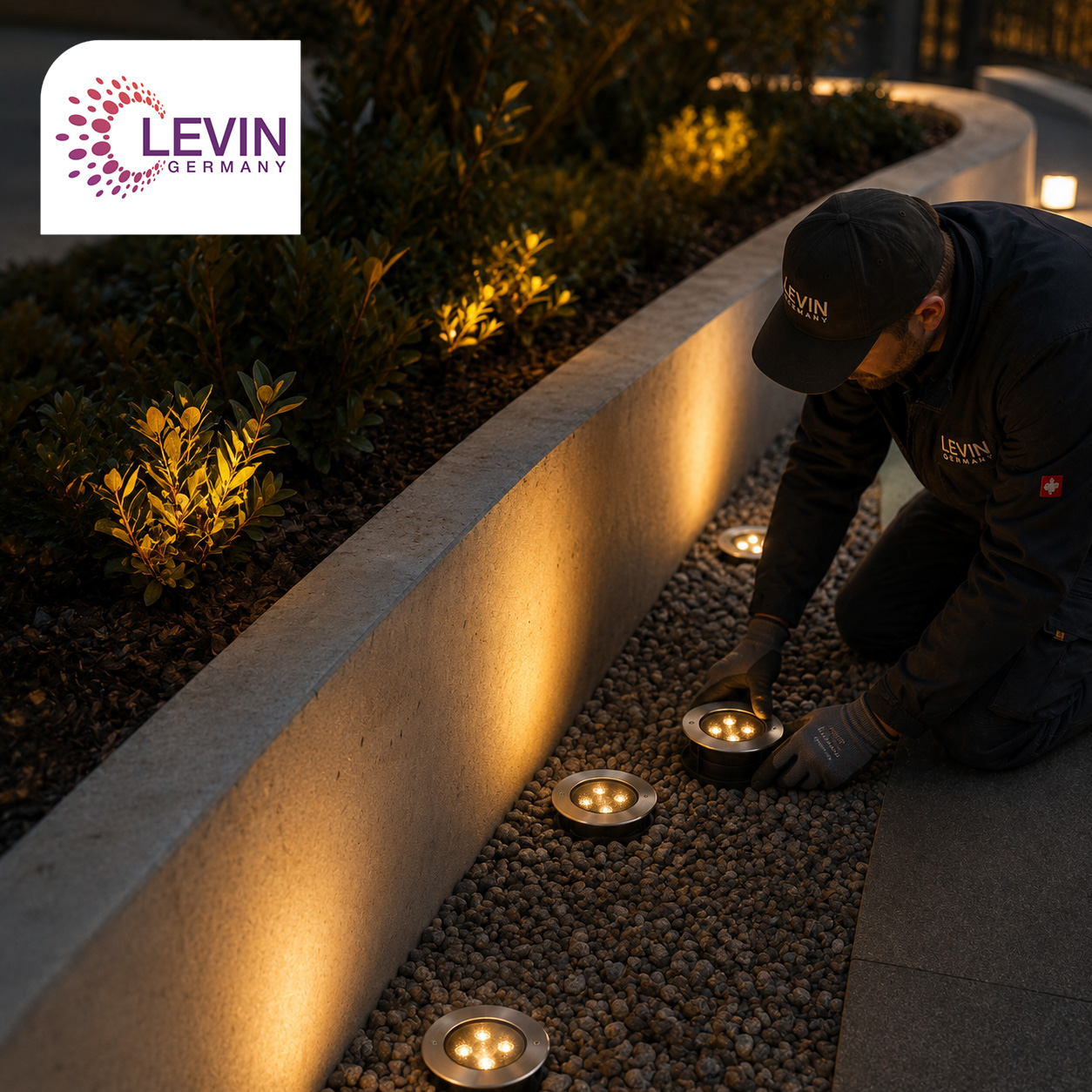

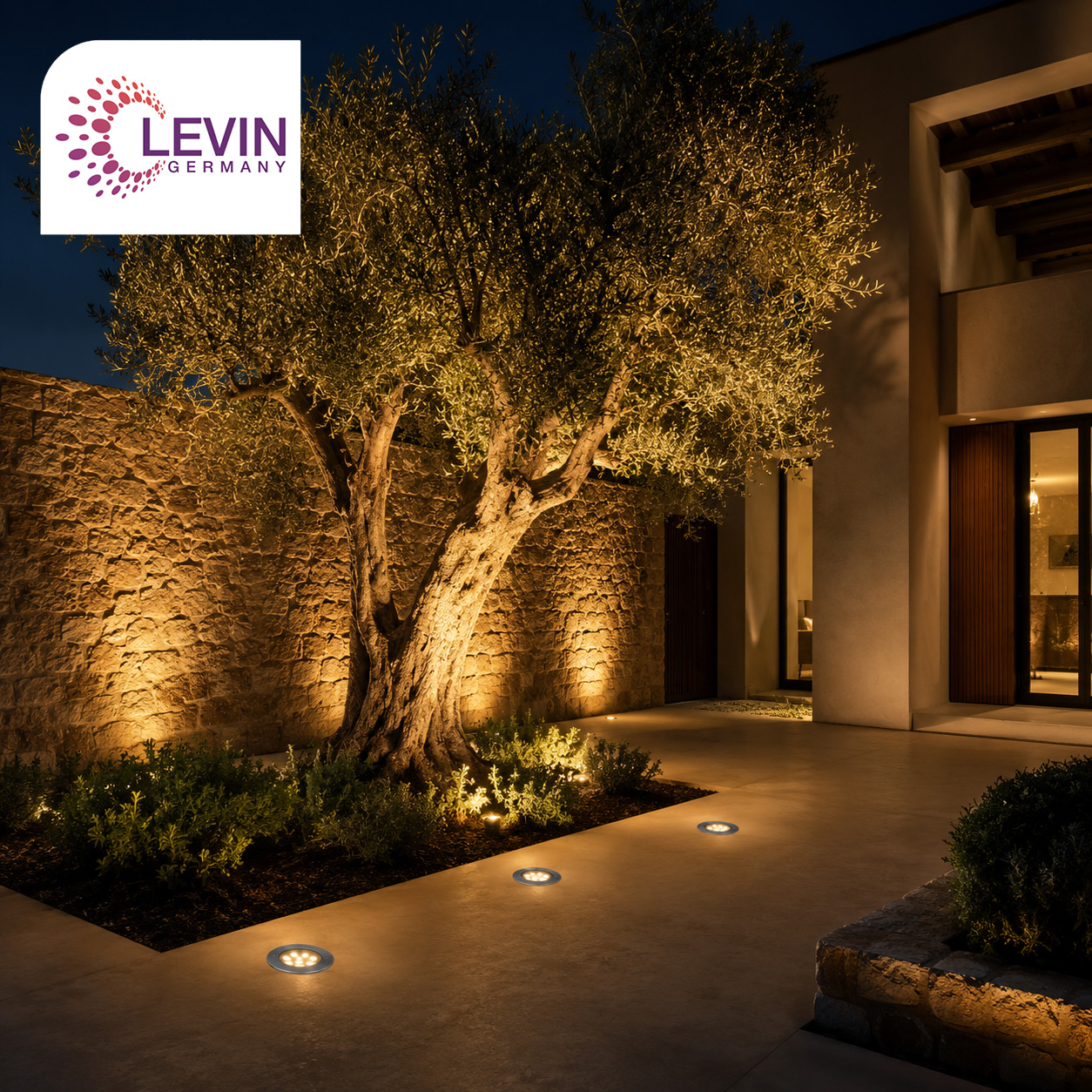

05 / APPLICATIONS
From garden features to architectural exterior
accents, the LEVIN 180mm Round Landscape Light
offers several model and optical configurations
for professional lighting projects.
06 / PRODUCT QUESTIONS
Yes. All four listed models have an IP65
protection rating. Installation suitability
also depends on site conditions and correctly
protected electrical connections.
The family includes 9W white light (2202),
12W white light (2203), 12W RGB (2204)
and 24W RGB (2205).
Codes 2202 and 2203 offer 3000K, 4000K
and 6500K fixed white-light options.
Codes 2204 and 2205 are RGB models.
The family lists 8°, 15°, 30°, 45°
and 60° beam-angle options. Please confirm
optical availability for the selected model.
Codes 2202 and 2203 list DC24V and AC220V
electrical options. Codes 2204 and 2205
are listed with DC24V.
The catalogue lists Ø180 × 75mm and
Ø180 × 93mm family configurations,
without assigning a specific height
to each product code.
Yes. The published product specifications
list a three-year warranty.
